ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50) Tedarikçiler

Ana Sayfa / Ürünler / Vakum Bileşenleri / Vakum Vantuzu / ZP Serisi Kilitleme Halkalı, Adaptörlü ve Tampon Braketli Vakum Vantuzu / ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50)

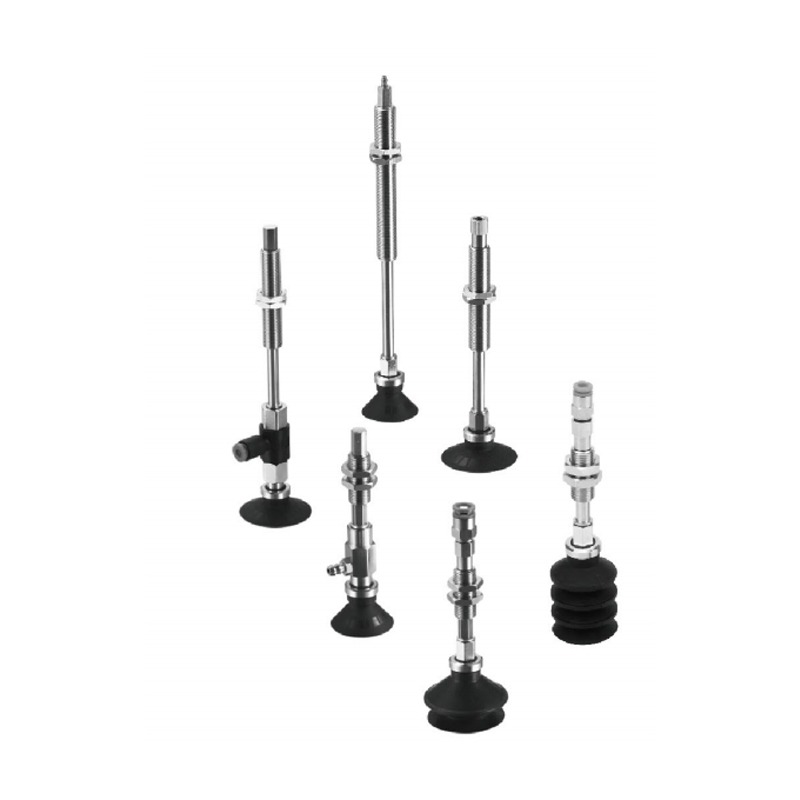

ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50) ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50)
  • ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50)
  • ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50)
ZP Serisi Kilitleme Halkalı, Adaptörlü ve Tampon Braketli Vakum Vantuzu

ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli Vakum Vantuzu (Ø9~Ø50)

ZP Serisi Segmanlı, Adaptörlü ve Tampon Braketli (Ø9~Ø50) Vakum Vantuzu, stabil kavrama ve iş parçası koruması elde etmek için çeşitli spesifikasyonlardaki (Ø9~Ø50) vantuzlara uygun, entegre kilitleme halkası mekanizması ve tampon fonksiyonuna sahip bir vakum vantuzu düzeneğidir.

Temel Özellikler
1. Kilitleme ve düşmeyi önleyici tasarım: Yerleşik mekanik kilitleme halkası, negatif basınç dalgalanmalarından kaynaklanan kazara düşmeyi önlemek için vantuzu otomatik olarak sıkar.
2. Esnek tampon yapısı: Yerleşik elastik eleman, iş parçasının temas etkisini emer ve hassas yüzeyin hasar görmesi riskini azaltır.
3. Modüler adaptör arayüzü: Standartlaştırılmış dişli/hızlı değiştirme arayüzü, ana akım vakum sistemleriyle uyumludur ve vantuz özelliklerinin hızlı değiştirilmesini destekler.
4. İnce ve kompakt düzen: Düşük kurulum yüksekliği tasarımı, küçük alan düzenine uygundur ve robot kolunun uç yükünü optimize eder.
5. Geniş çalışma koşulları kapsamı: Geleneksel negatif basınç koşullarına uygundur, metal/cam/plastik gibi gözeneksiz malzemelerin taşınmasıyla uyumludur.

E-posta: manager@cktworld.com
İndir
ÖNCEKİ：Önceki makale yok
SONRAKİ：ZP Serisi Kilit Halkalı Vakum Vantuzu (Ø9~Ø50)

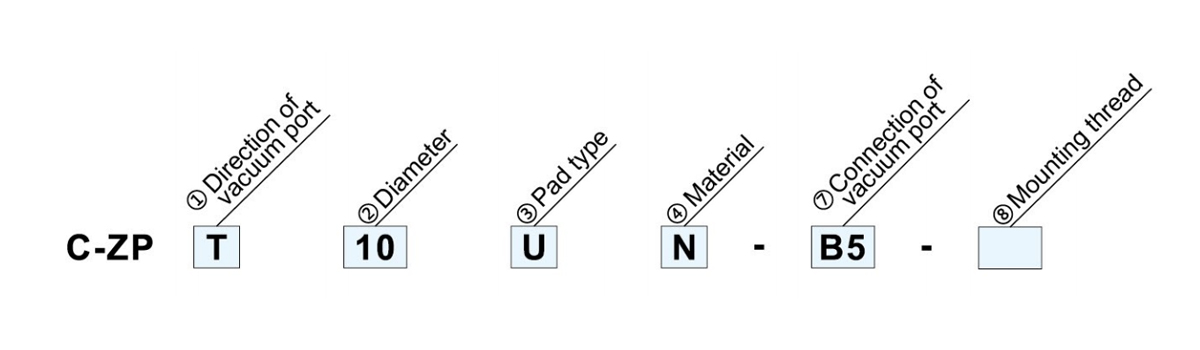

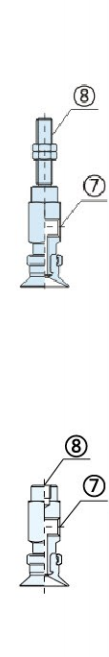

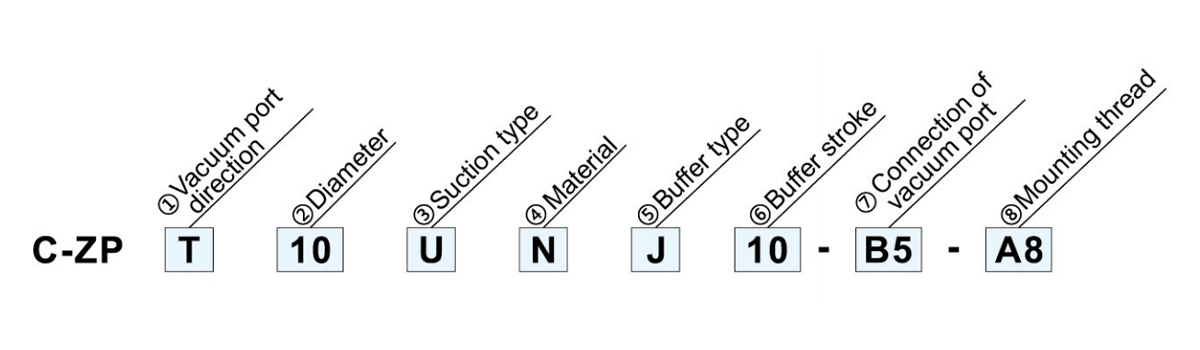

  • ④Malzeme□ ② Çap（mm）○/③Emme Tipi☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silikon Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Düz - ● ● - ● ● ● - ● ● ●
    C Kaburga ile - ● ● - ● ● ● - ● ● ●
    D Derin - ● - - ● - ● - - ● -

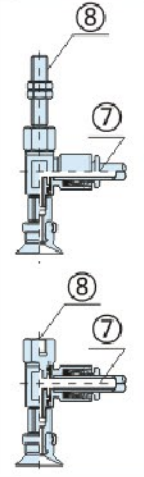

    ①Yön
    vakum    bağlantı noktası     		B 2   Körük - ● ● - ● ● ● - ● ● ●
    J 3/4 Körük ● - - ● ● - ● ● - - -

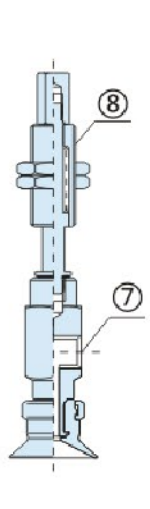

    T Dikey ⑦Vakum Portunun Bağlantısı Dış iplik A5 M5 × 0,8 ● - -
    A6 M6 × 1,0 ● ● ●
    A8 M8 × 1,0 - ● ●
    A01 R1/8 ● ● ●
    Dahili konu B5 M5 × 0,8 ● ● -
    B6 M6 × 1,0 ● ● ●
    B8 M8×1,25 - ● ●
    B01 Kc1/8 ● ● ●
    R Yanal Hızlı bağlayıcı 04 Ø4 ● ●
    06 Ø6 ● ● ●
    08 Ø8 - ○ ●
    ⑧Montaj Konusu Dış dişli A5 M5 × 0,8 ● - -
    A6 M6 × 1,0 ● ● ●
    A8 M8 × 1,0 - ● ·
    Dahili ileti dizisi B5 M5 × 0,8 ● ● -
    B6 M6 × 1,0 ● ● ●
    B8 M8×1,25 - ● ●
    Y ⑦ Vakum Portunun Bağlantısı◇ B5 M5 × 0,8 ● ● ●
    Diken bağlantısı U4 φ4 PU hortum ● ● -
    N4 φ4 Naylon hortum ● ● -
    U6 φ6 PU hortum ● ● ●
    N6 φ6 Naylon hortum ● ● ●
    Dış altıgen hızlı bağlantı parçası 03 Ø3 ● - -
    23 Ø3.2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ●
    İç altıgen hızlı bağlantı noktası 03S Ø3 ● - -

    23S

    		Ø3.2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧ Montaj dişi Harici
    iplik     		A5 M5 × 0,8 ● - -
    A6 M6 × 1,0 ● ● ●
    A8 M8 × 1,0 - ● ●
    İç dişli B5 M5 × 0,8 ● ● -
    B6 M6 × 1,0 ● ● ●
    B8 M8×1,25 - ● ●

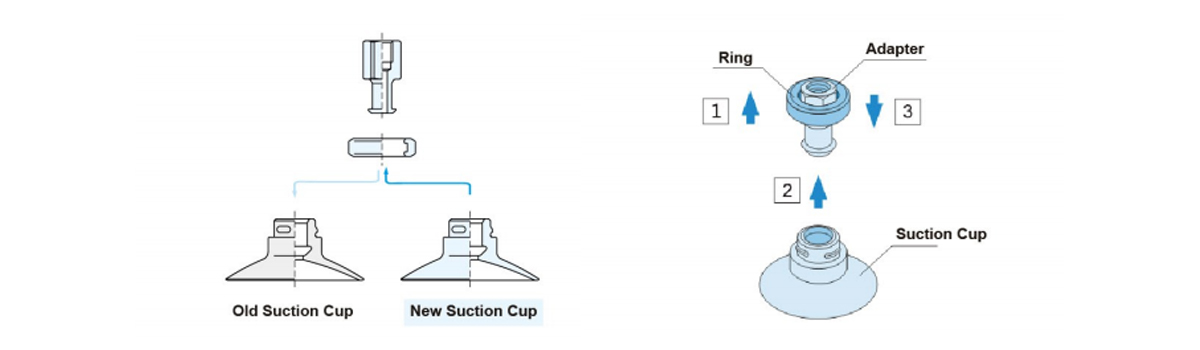

    Vantuzlar kauçuk bileşenlerdir ve yaşlanma kaçınılmazdır. Yaşlanma oranı kullanım yöntemleri, ortam, sıcaklık koşulları gibi faktörlere bağlıdır. Düzenli bakım yapılmalıdır. Herhangi bir hasar, çatlama, çatlama veya aşınma meydana gelirse vantuz derhal değiştirilmelidir. Vantuzu değiştirirken lütfen dış yüzeyine zarar vermeyin.

    ADIM:

    1. Yüzüğü çıkarın.
    2. Adaptörü çıkarın.
    3. Yeni vantuz halkasını sabitleyin ve ardından adaptörü yeni vantuzla birlikte takın.

    ④Malzeme□ ②Çap(mm)○/③Emiş Tipi☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silikon Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Düz - ● ● - ● ● ● - ● ● ●
    ⑤ Arabellek     türü● C Kaburga ile - ● ● - ● ● ● - ● ● ●
    J Döner D Derin ● - - ● - ● - - ● -
    K Döndürülemiyor B 2 Körük ● ● - ● ● ● - ● ● ●
    J 3/4 Körük ● - - ● ● - · ● - - -

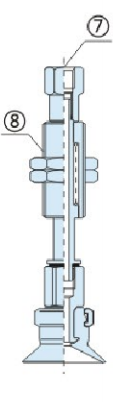

    ⑥Tampon vuruşu■ 10 10   mm ● ● ●
    20 20   mm ● ● ●
    30 30   mm ● ● ●
    ①Vakum bağlantı noktasının bağlantısı 40 40   mm ● ● -
    50 50   mm ● ● ●
    T Dikey ⑦Vakum bağlantı noktasının bağlantısı◇ İç dişli B5 M5 × 0,8 ● ● ●
    B01 Kc1/8 - - ●
    Diken bağlantısı U4 中4 PU hortum ● - -
    N4 φ4 Naylon hortum ● - -
    U6 φ6 PU hortum ● ● ●
    N6 中6 Naylon hortum ● ● ●
    Dış altıgen hızlı bağlantı 03 Ø3 ● - -
    23 Ø3.2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●





    R     		İç altıgen hızlı bağlantı 03S Ø3 ● - -
    23S Ø3.2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    Yanal Hızlı bağlantı 04 Ø4 ● ● -
    06 Ø6 ● ● ●
    08 Ø8 - ● ●
    Y İç B5 M5 × 0,8 ● ● ●
    Diken bağlantısı U4 φ4 PU hortum ● ● -
    N4 φ4 Naylon hortum ● ● 一
    U6 φ6 PU hortum ● ● ●
    N6 φ6 Naylon hortum ● ● ●
    Dış altıgen hızlı bağlantı 03 Ø3 ● - -
    23 Ø3.2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●
    İç hexagon quick conector 03S Ø3 ● - -
    23S Ø3.2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧Montaj ipliği Harici thread A10 M10×1.0 ● ● -
    A14 M14×1.0 - ● ●

    Montaj
    Konu     		Montaj Nut
    Sıkma Torku (N.m)     		Yay Tampon Kuvveti(N)
    0 Vuruş Tam Vuruş
    M10×1.0 2,5-3,5 1.0 3.0
    M14×1.0 6.5-7.5 2.0 5.0

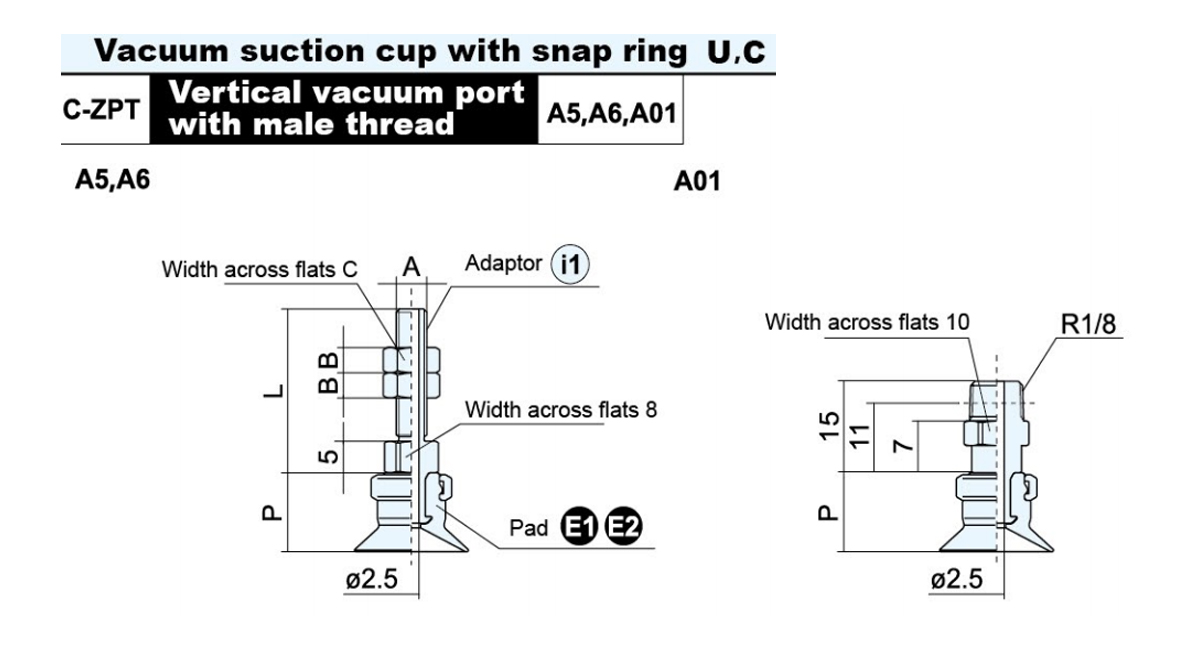

  • Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

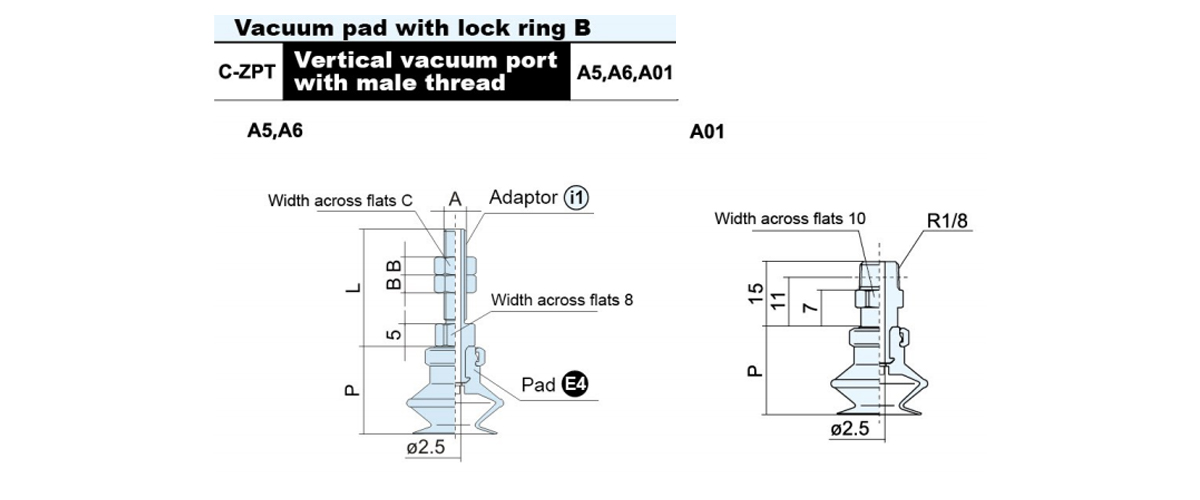

    C-ZPT○☆□-A5 M5×0.8 7 4 26 12 12 12.5 ZPT2-A5
    C-ZPT○☆□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○☆□-A01 - - ZPT2-A01
    ○ Symbol of pad diameter:10,13,16       ☆ Pad type:Flat(U),with  ribs(C)
    □Material:NBR(N),Silicone(S)

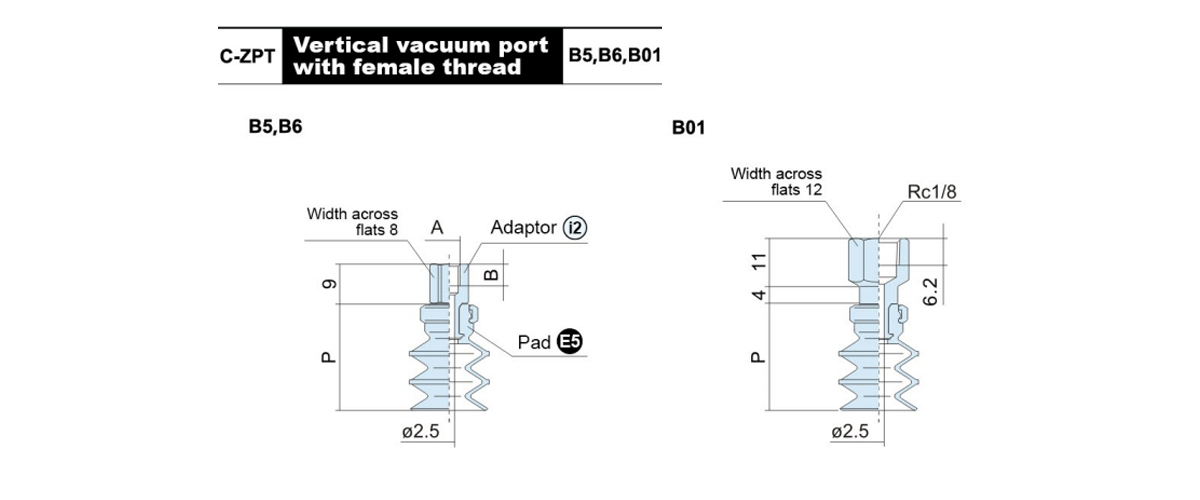

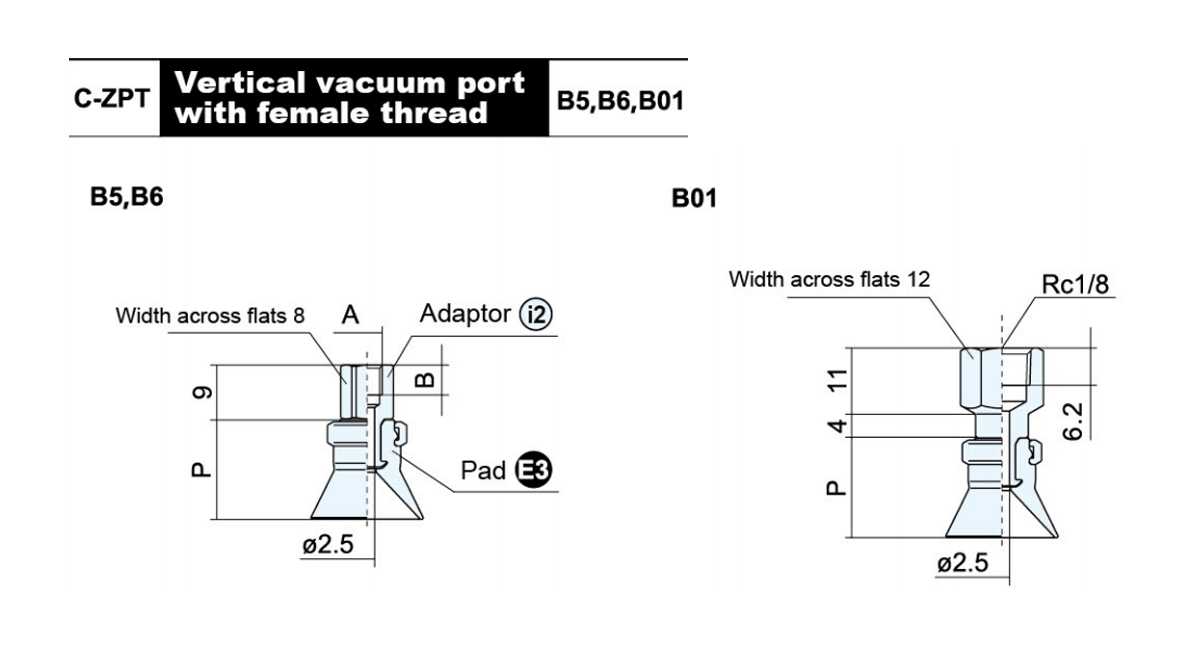

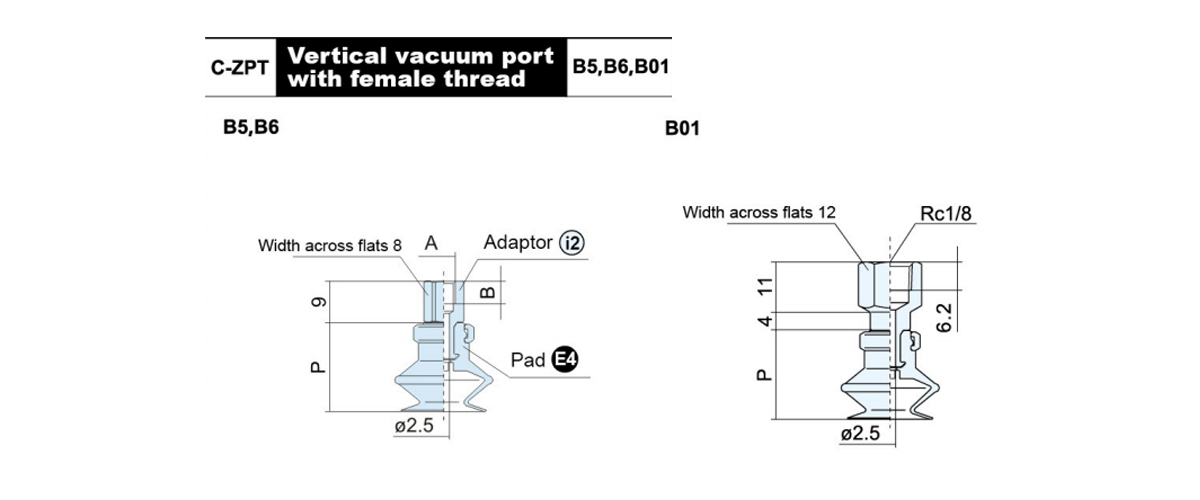

    Model A B ○Pad diameter P Adaptor Model
    10 13 16

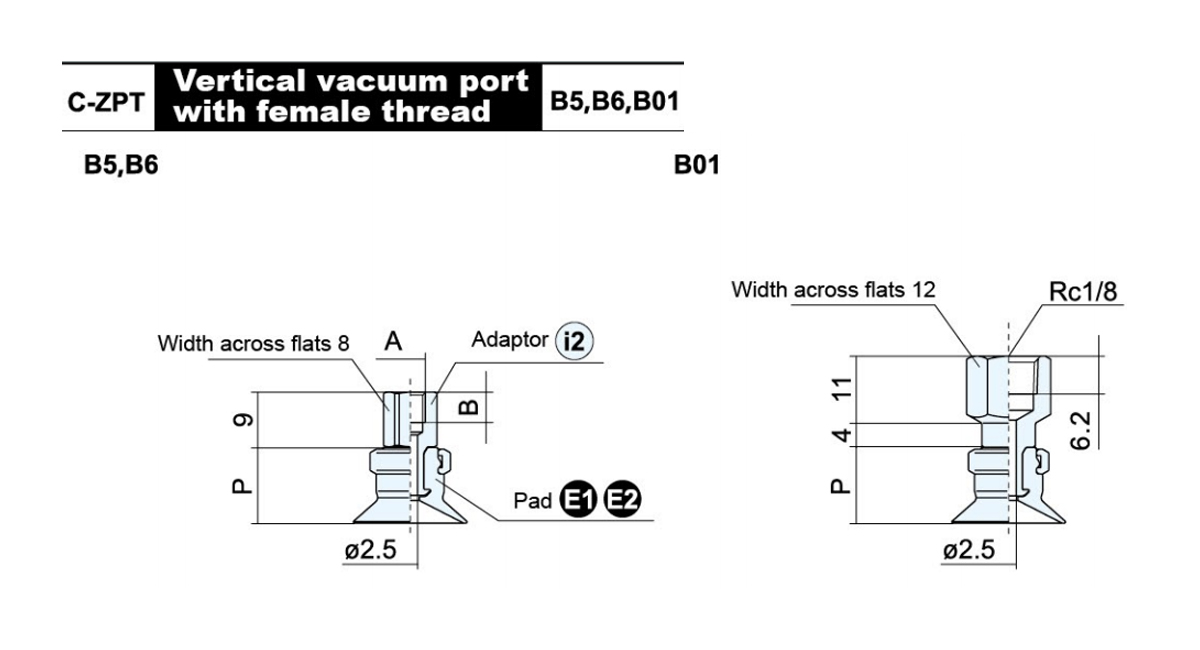

    C-ZPT○☆□-B5 M5×0.8 5 12 12 12.5 ZPT2-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○☆□-B01 - ZPT2-B01
    ○Symbol of pad diameter:10,13,16
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

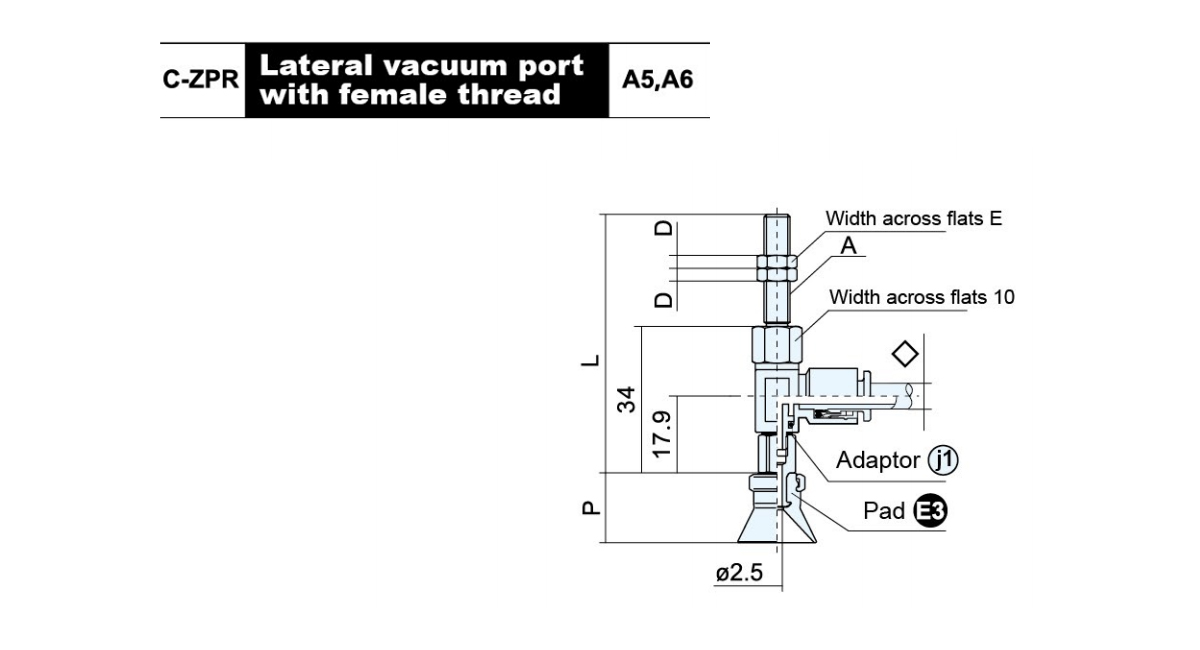

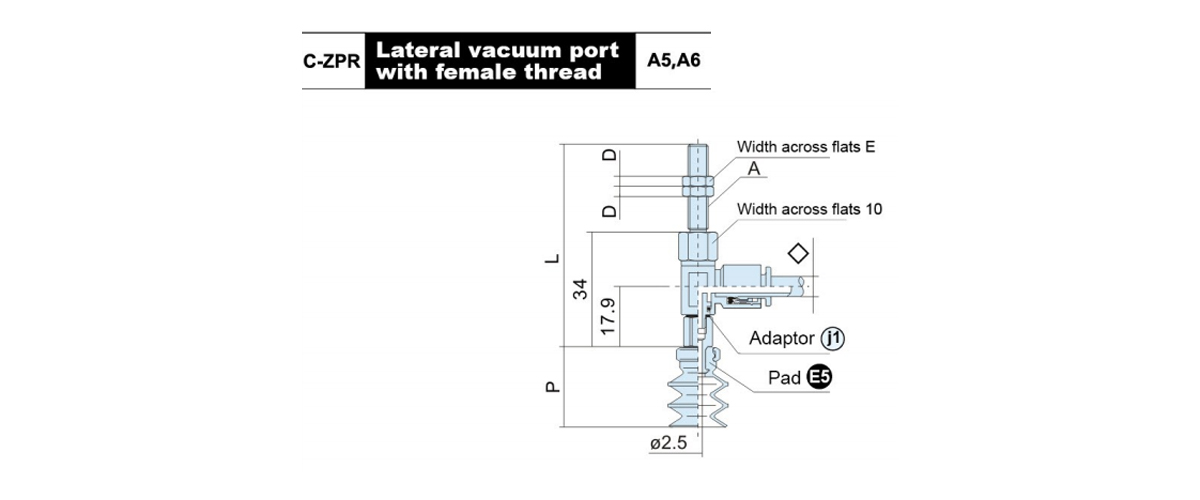

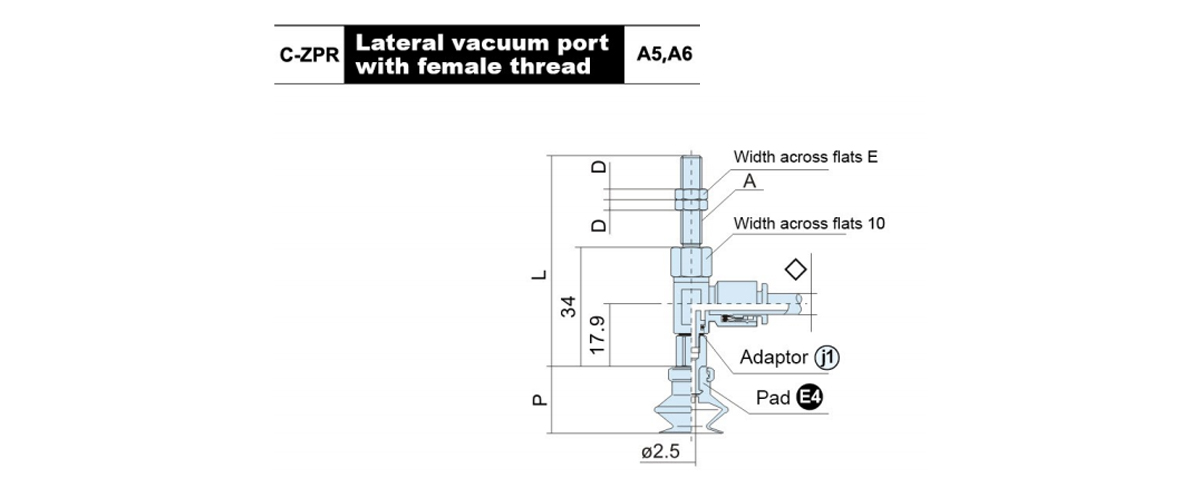

    Model A D E L ○Pad diameter P Adaptor Model
    10 13 16

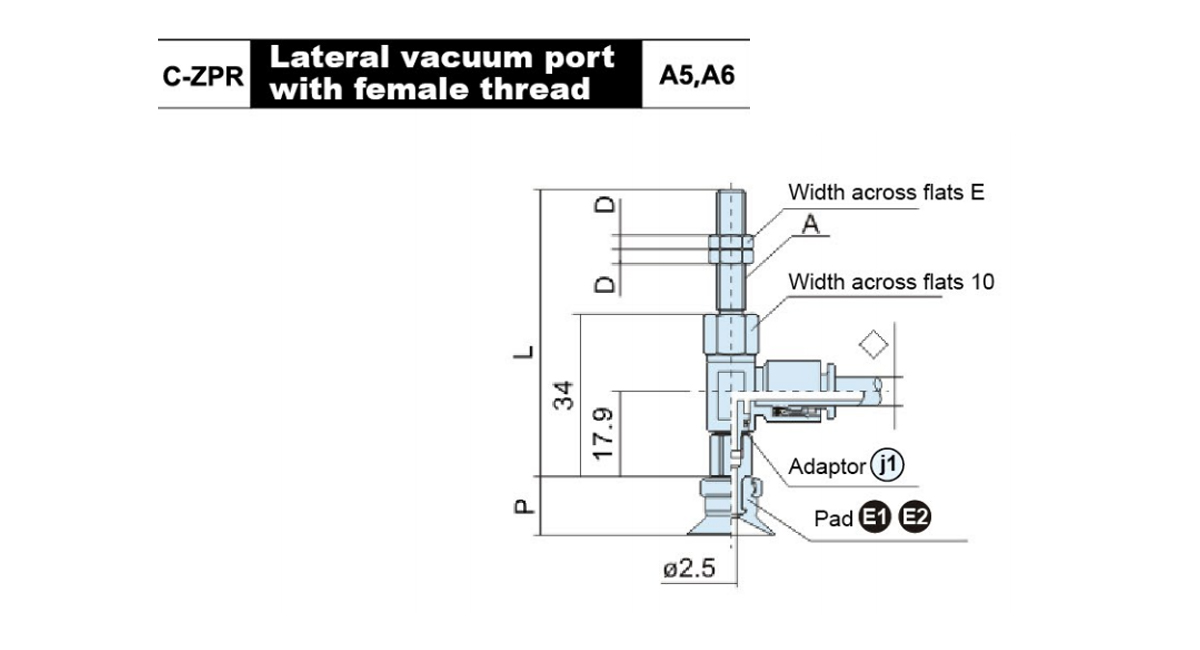

    C-ZPR○☆口 - ◇ -A5 M5×0.8 4 7 55 12 12 12.5 ZPR2-◇-A5
    C-ZPR○☆□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:04,06

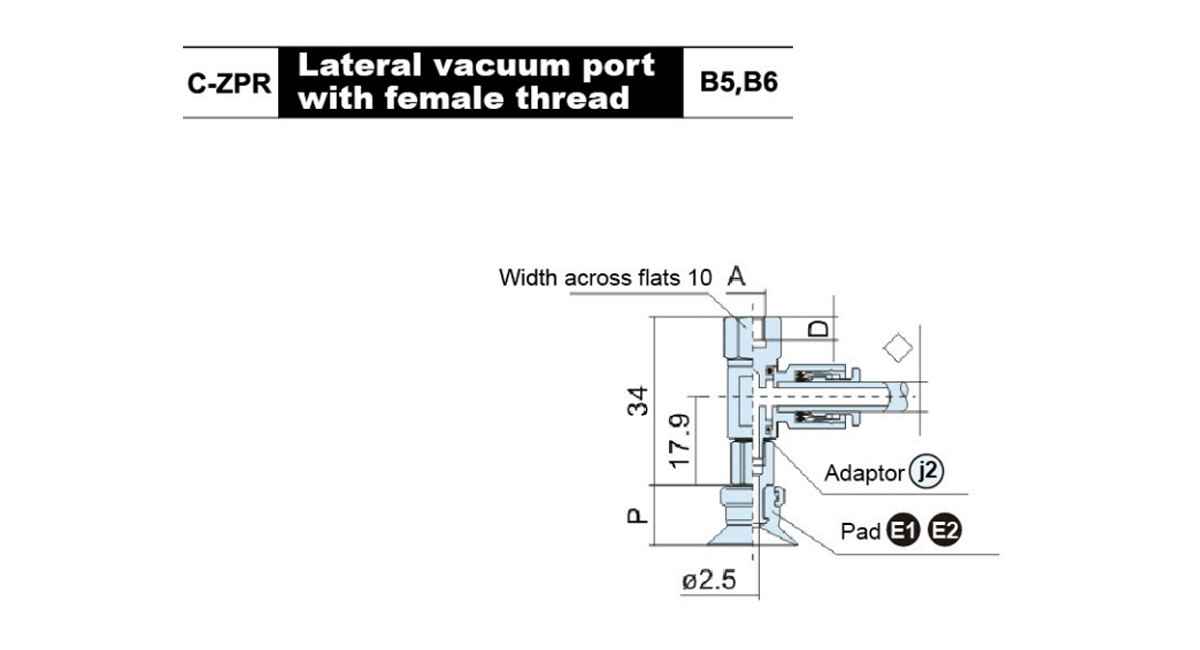

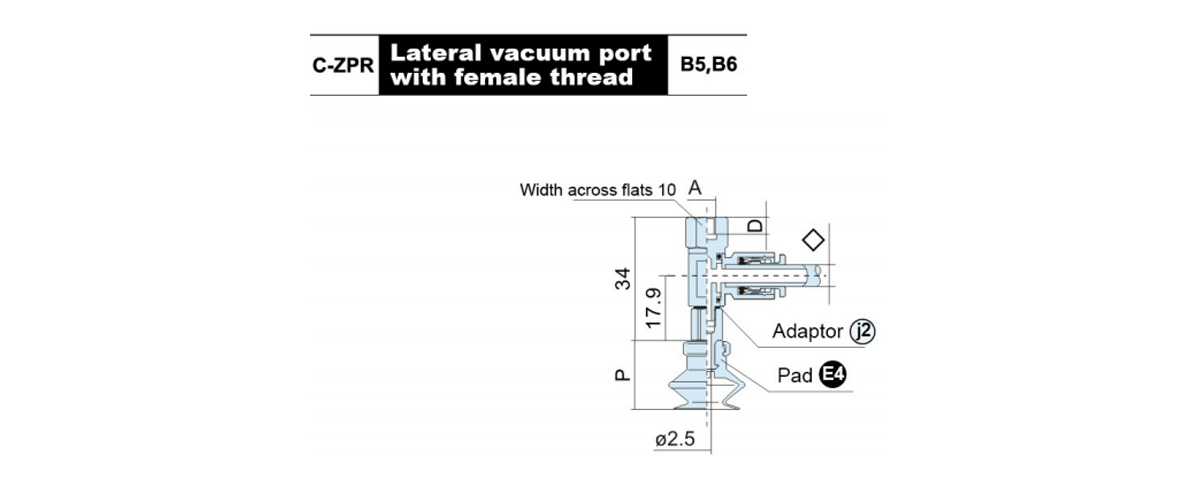

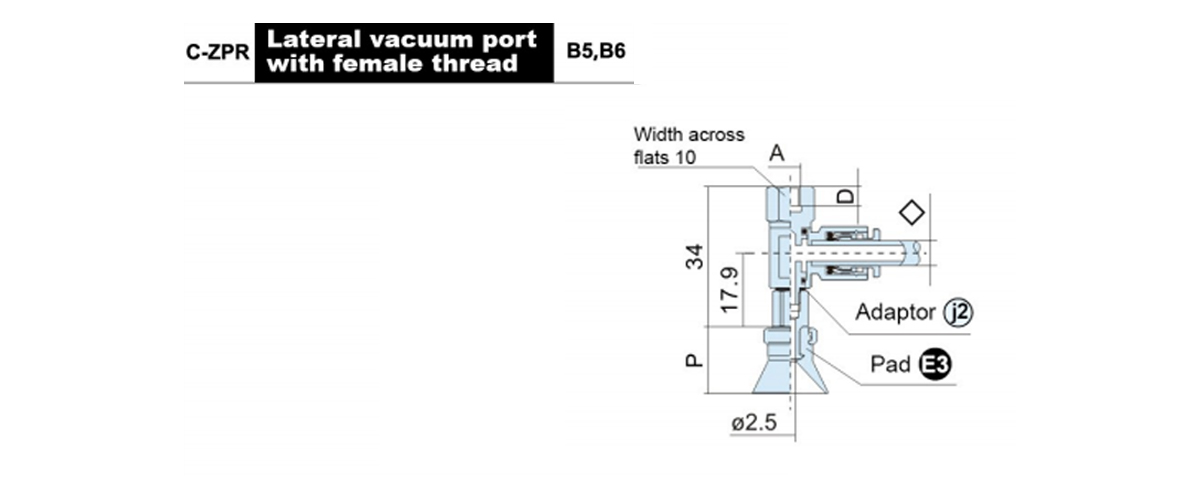

    Model A D ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPR○☆□-◇-B5 M5×0.8 5 12 12 12.5 ZPR2-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06

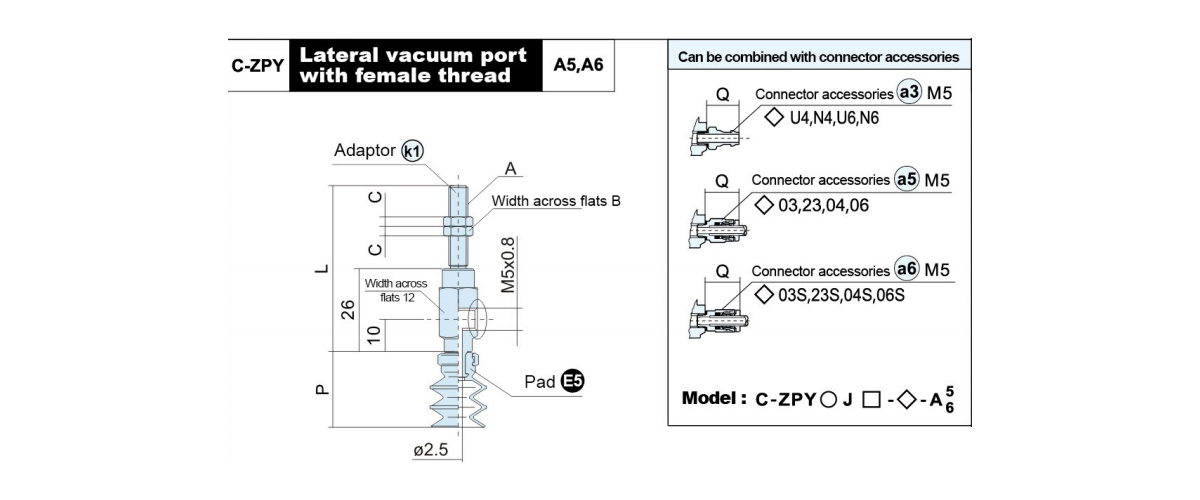

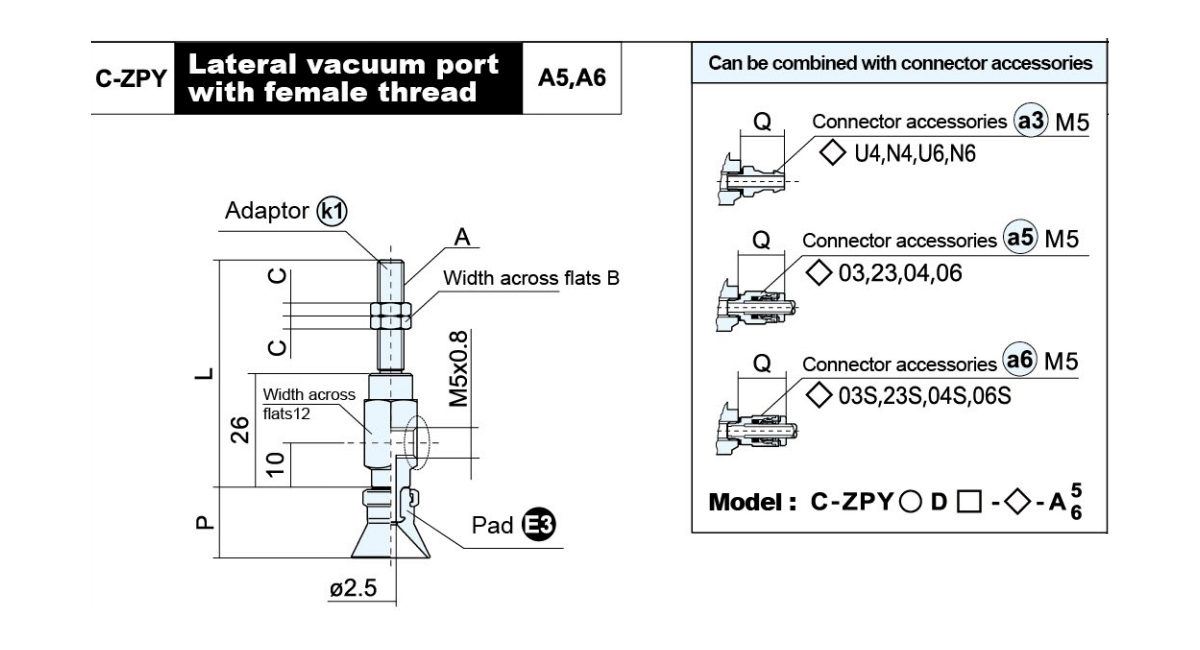

    Model A B C L ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPY○☆□-B5-A5 M5×0.8 7 4 47 12 12 12.5 ZPY2-B5-A5
    C-ZPY○☆□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

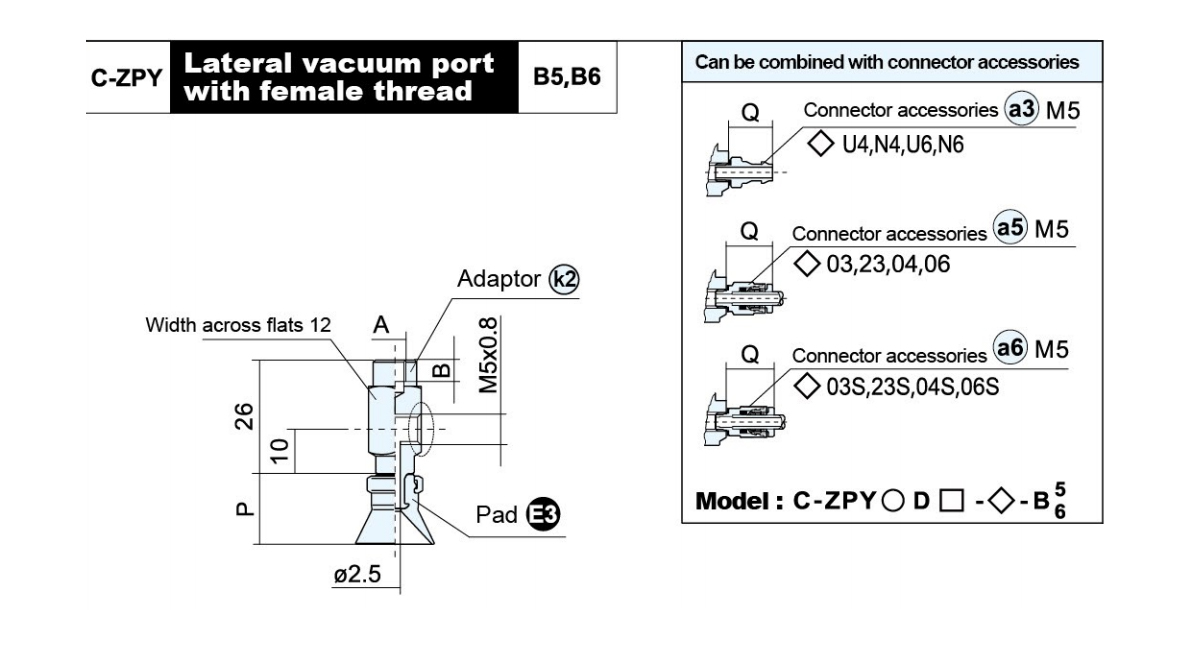

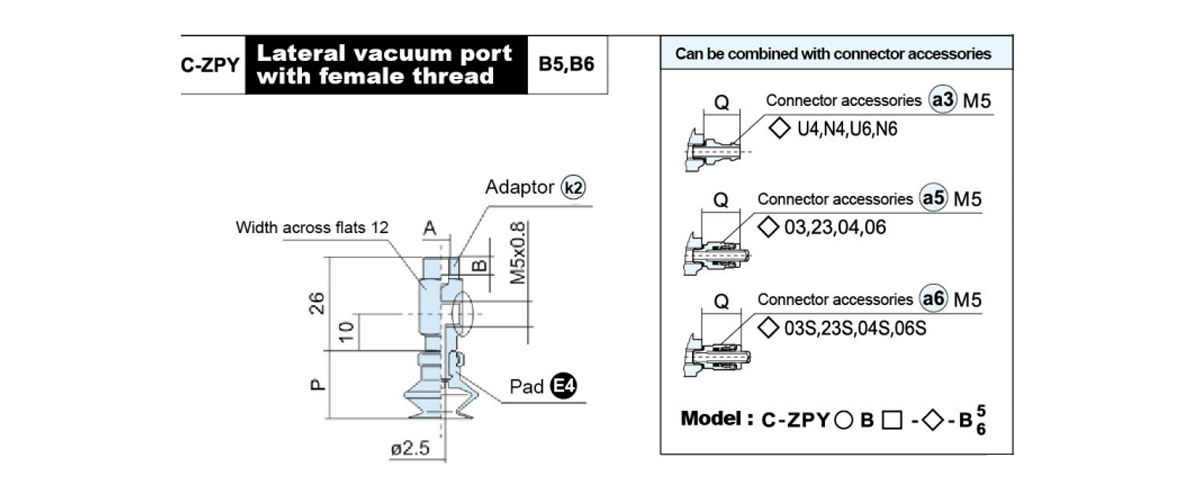

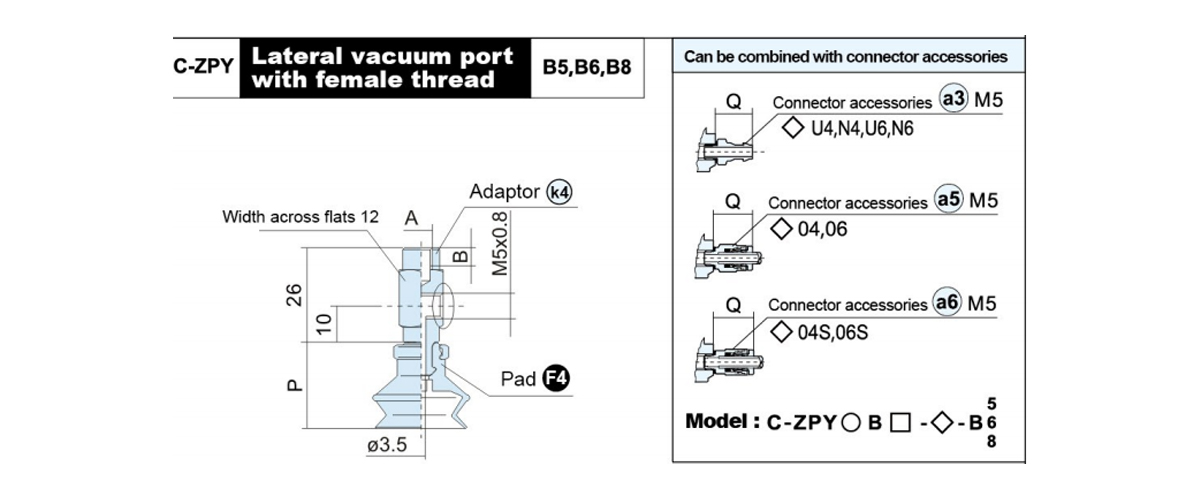

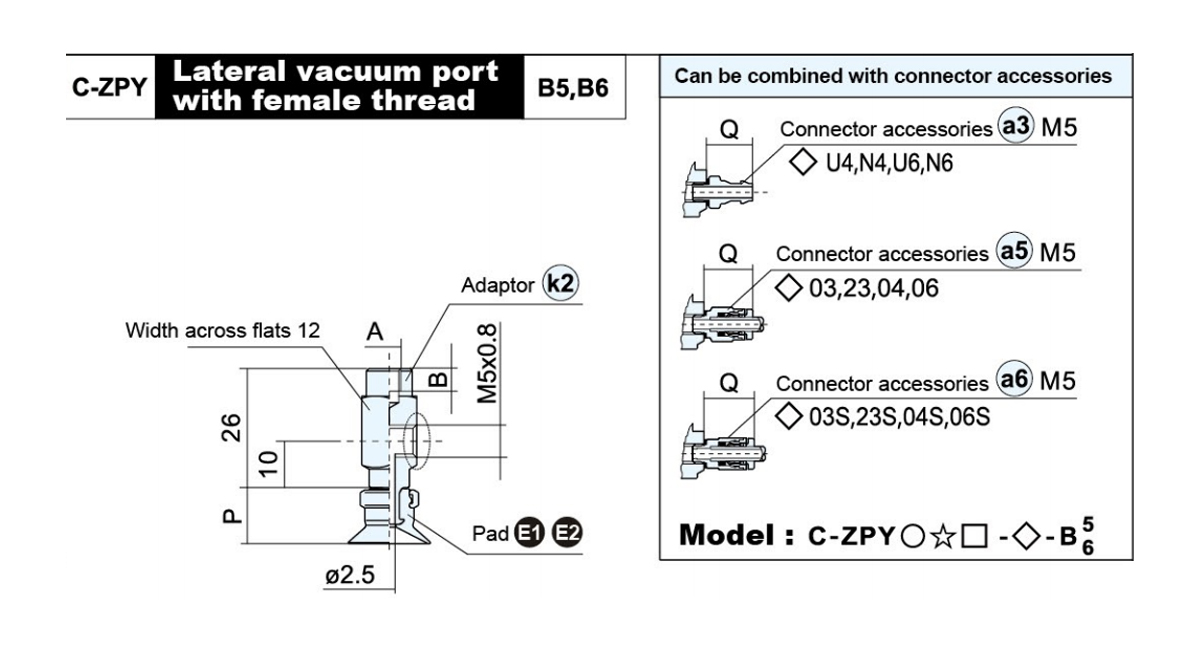

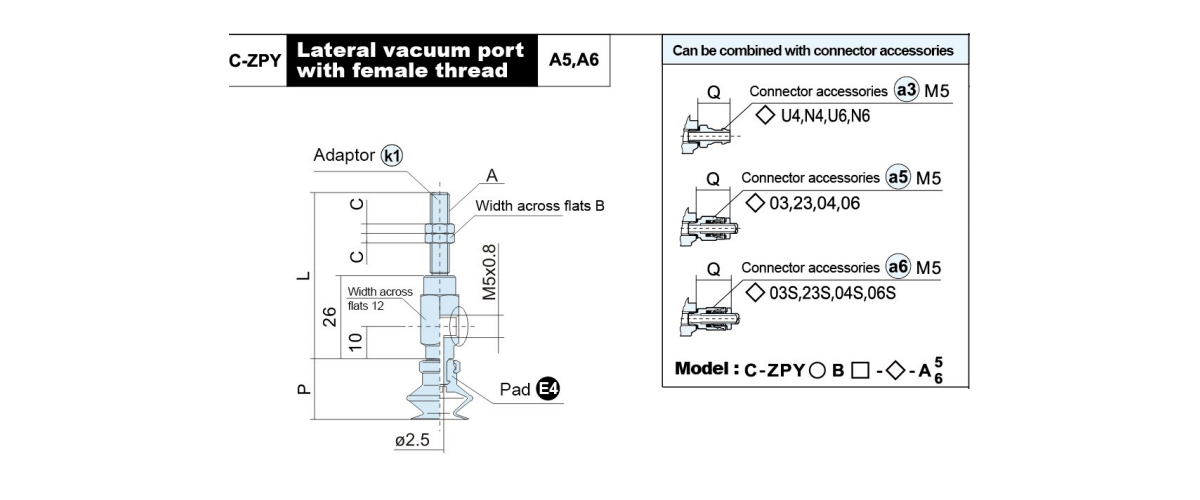

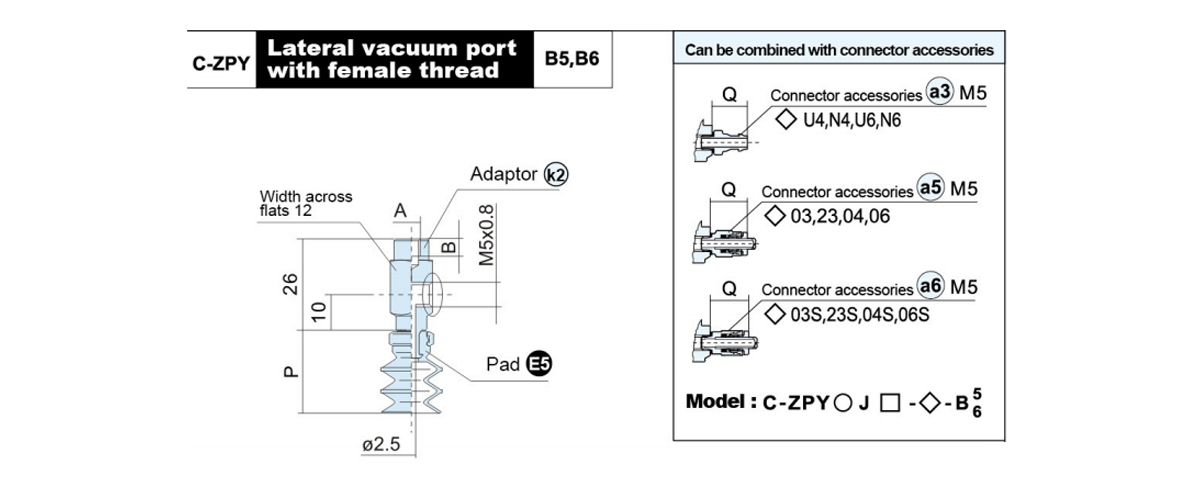

    Model A B ○Pad diameter P Adaptor Model
    10 13 16

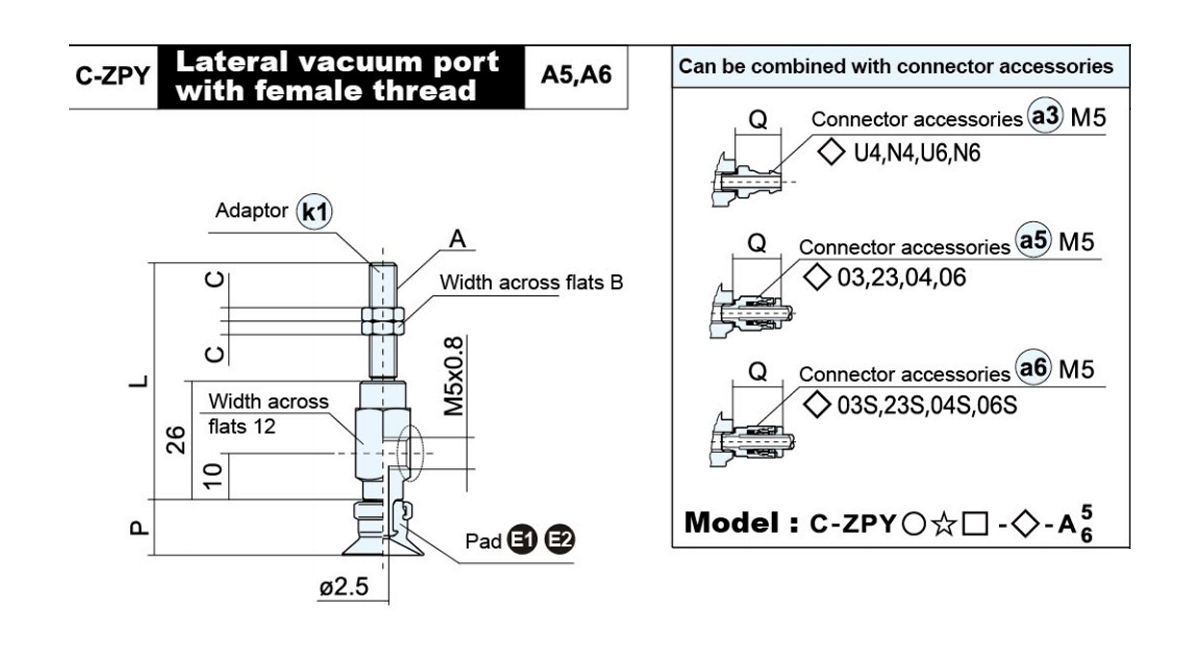

    C-ZPY○☆□-B5-B5 M5×0.8 5 12 12 12.5 ZPY2-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

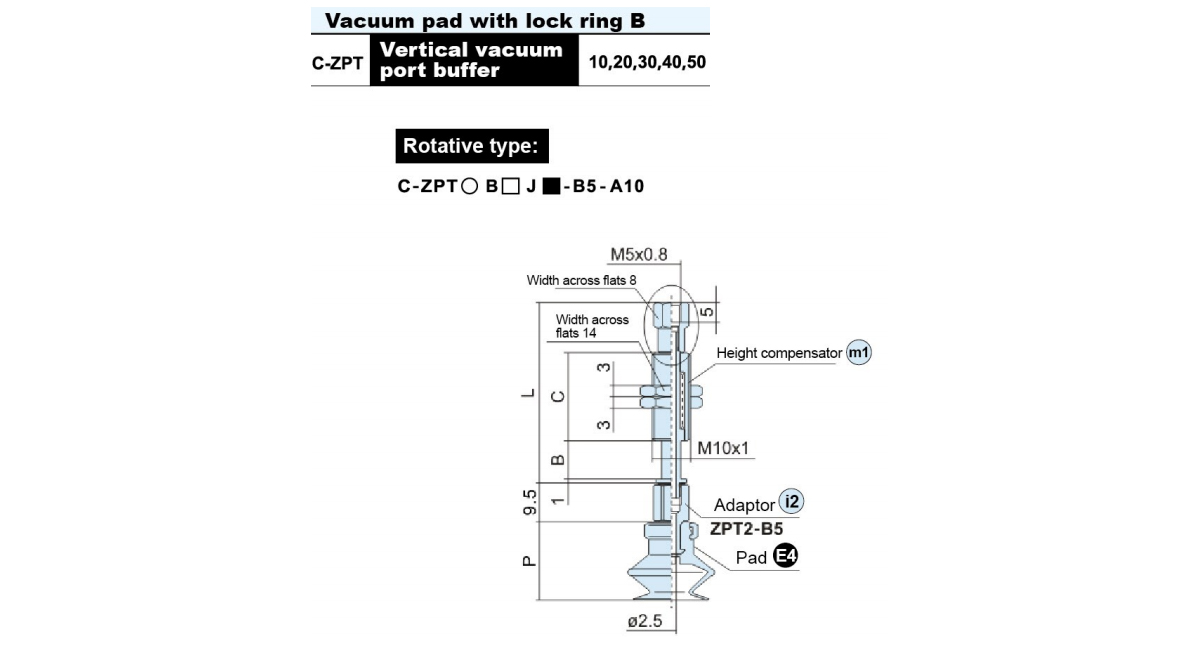

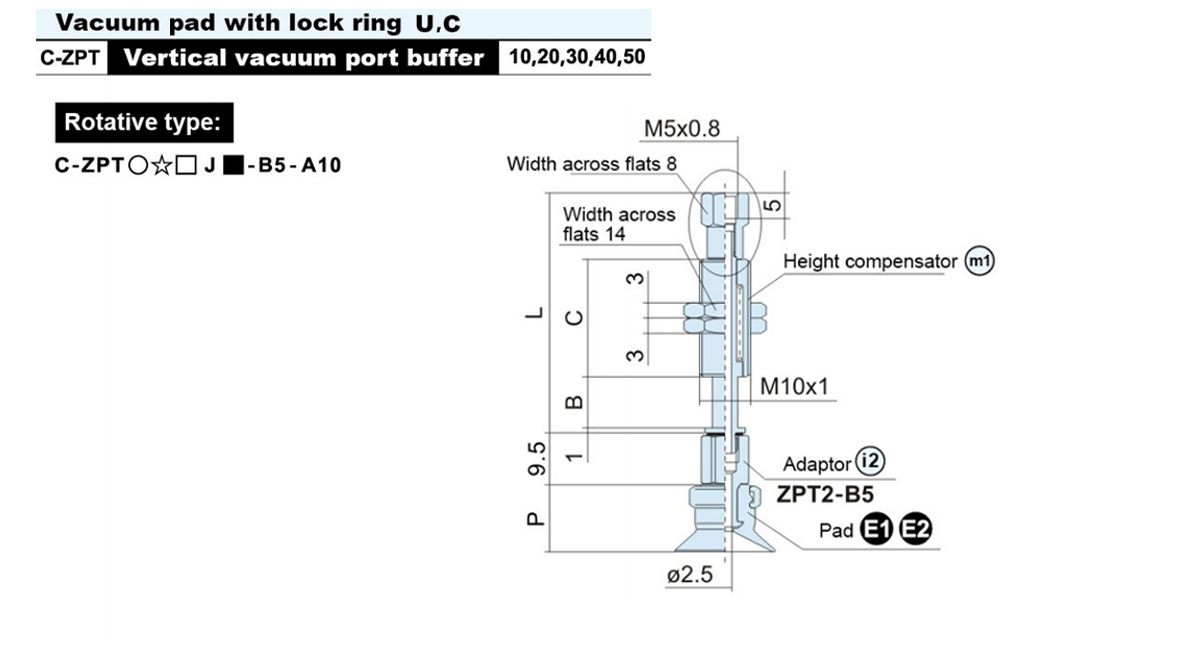

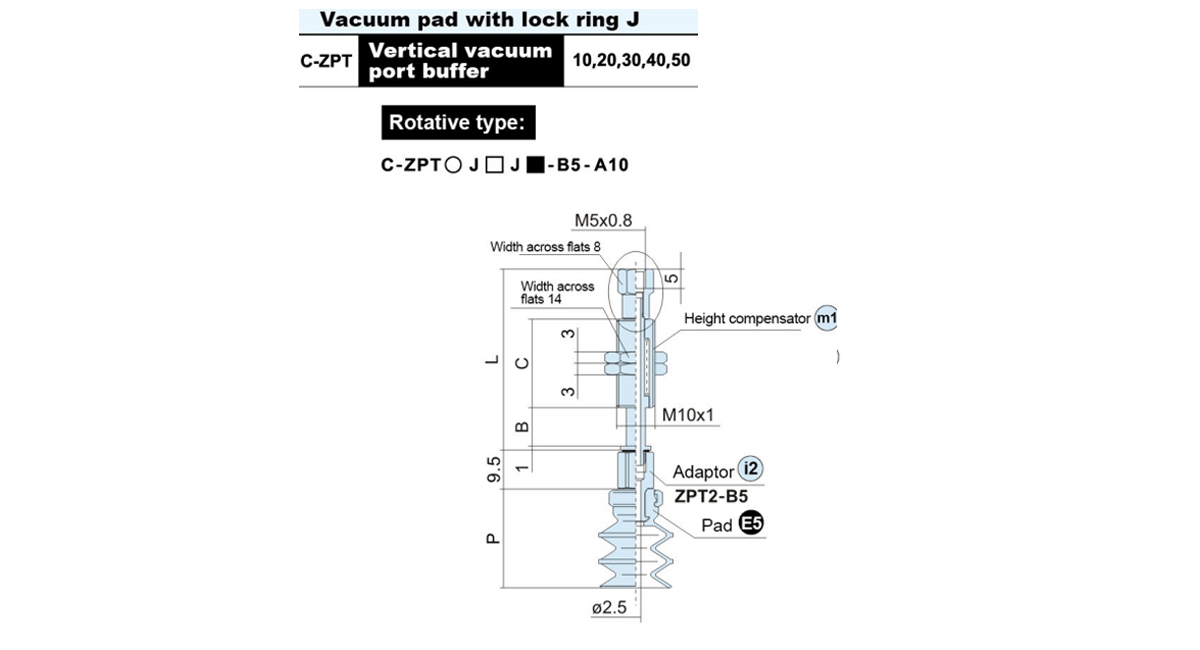

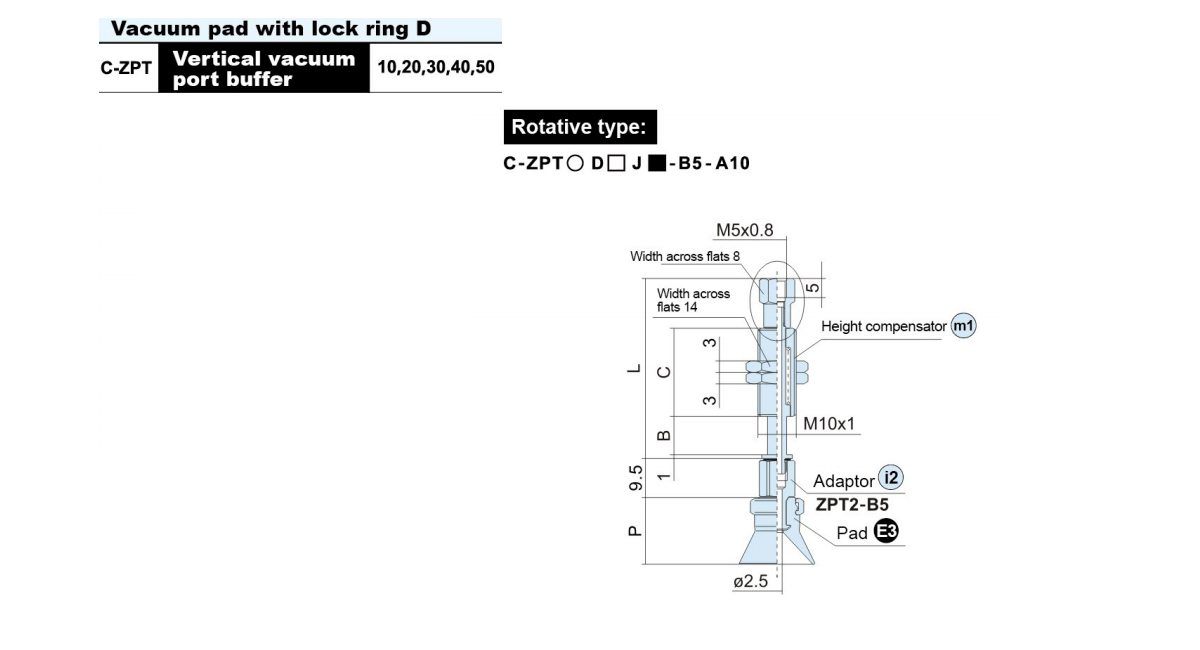

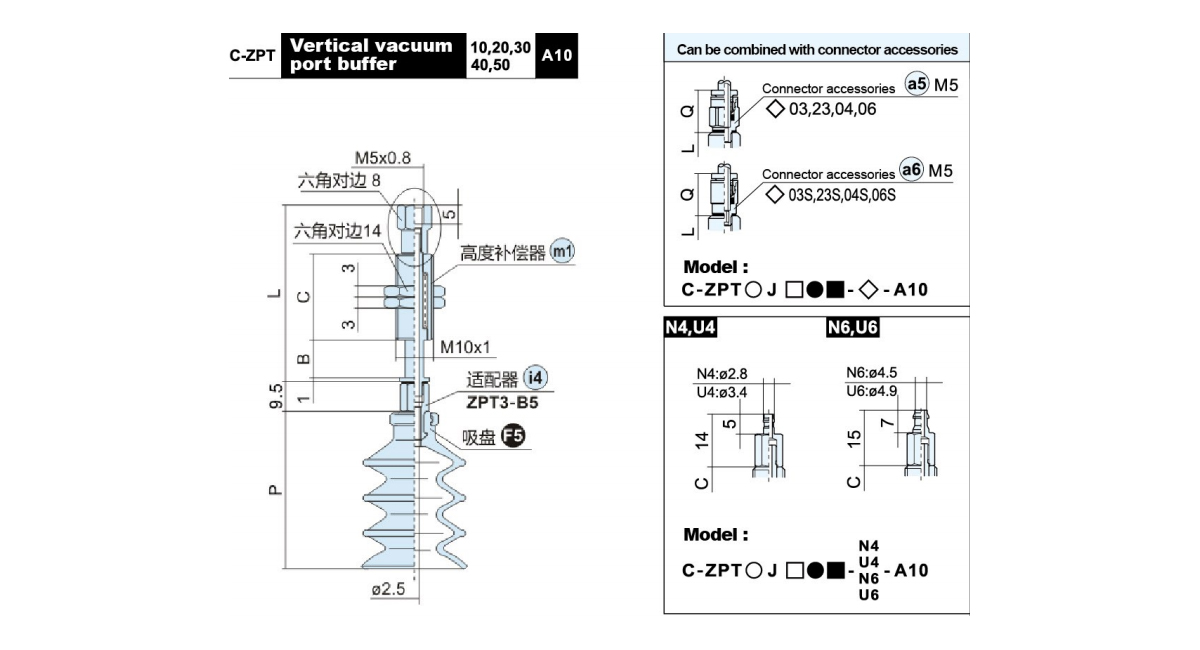

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○☆□J10-B5-A10 10 23 47 12 12 12.5 ZPT2-J10-B5-A10
    C-ZPT○☆□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○☆□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○☆□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○☆□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

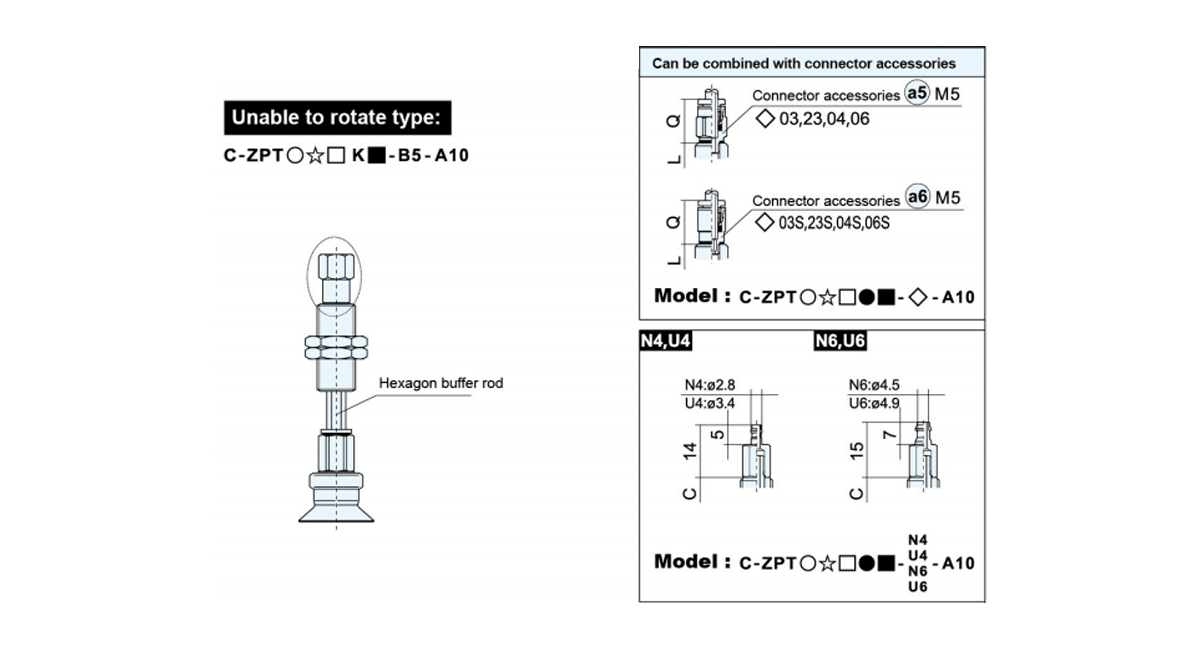

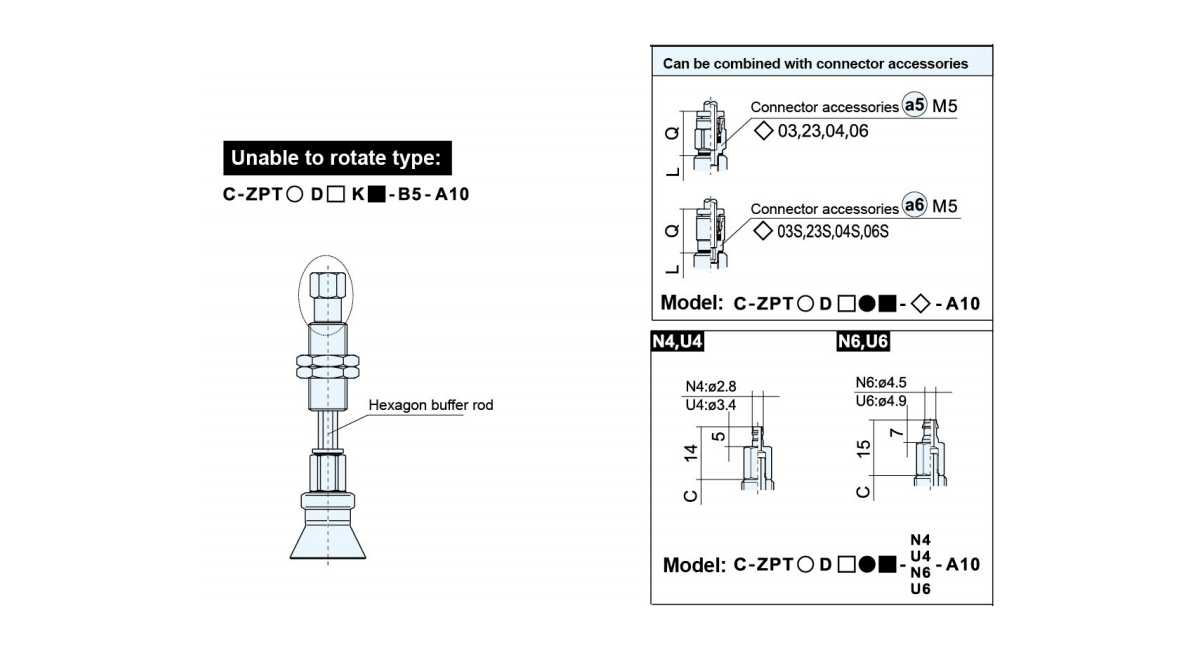

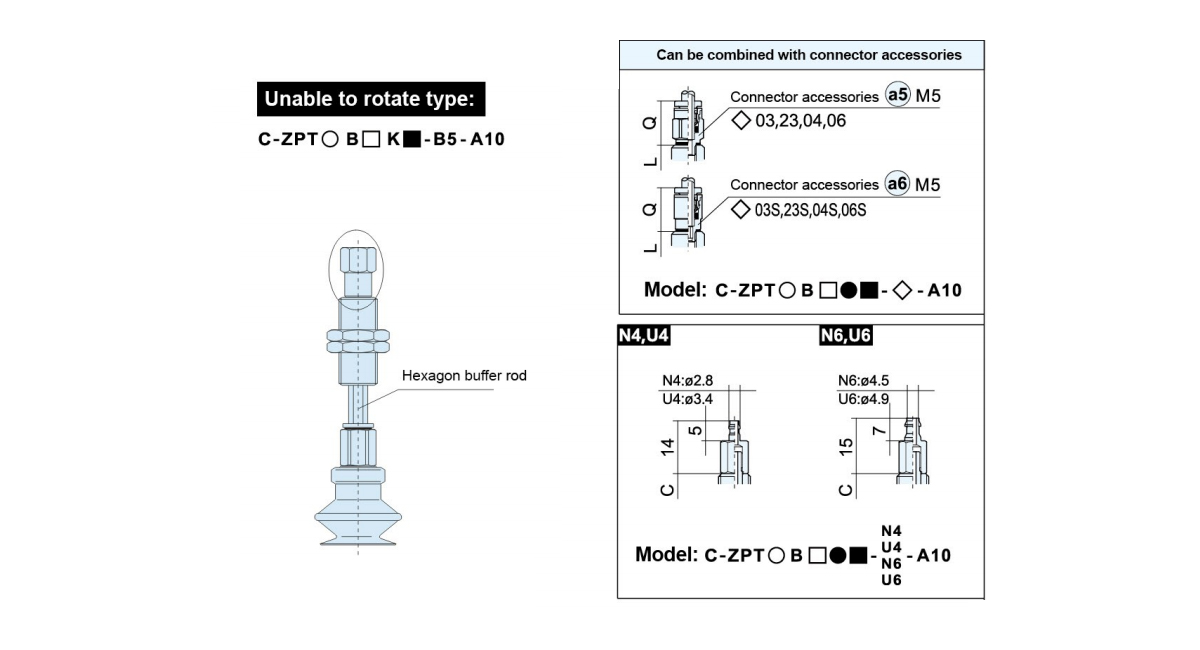

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16

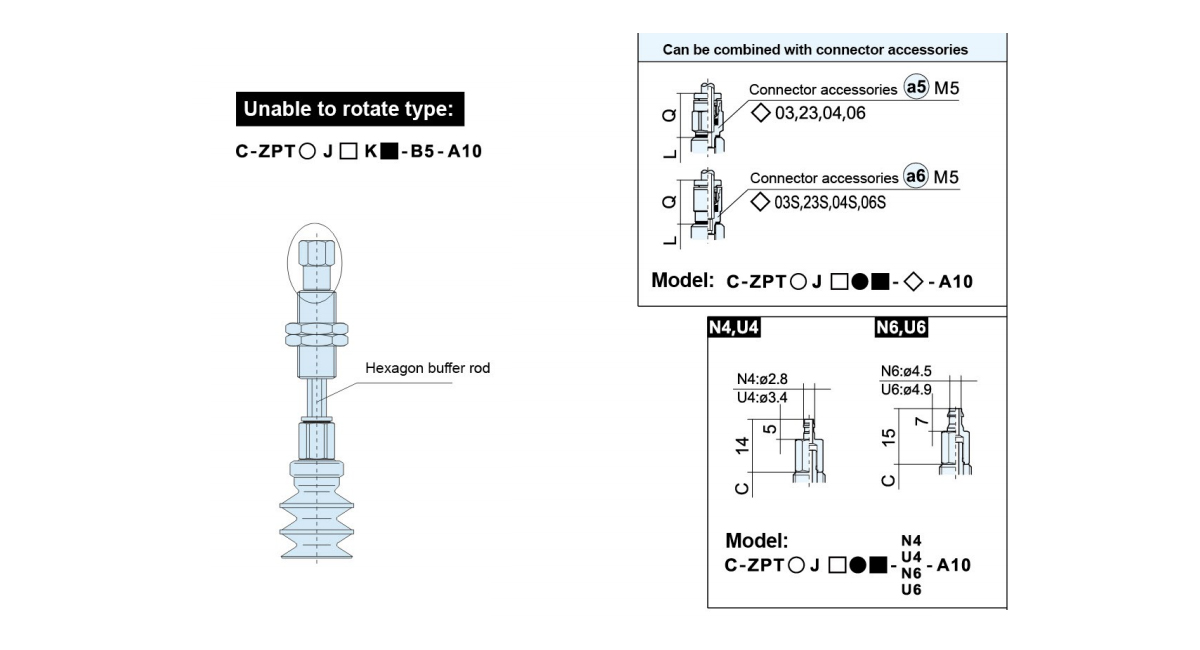

    C-ZPT○☆□K10-B5-A10 10 23 47 12 12 12.5 ZPT2-K10-B5-A10
    C-ZPT○☆□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○☆□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○☆□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○☆□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

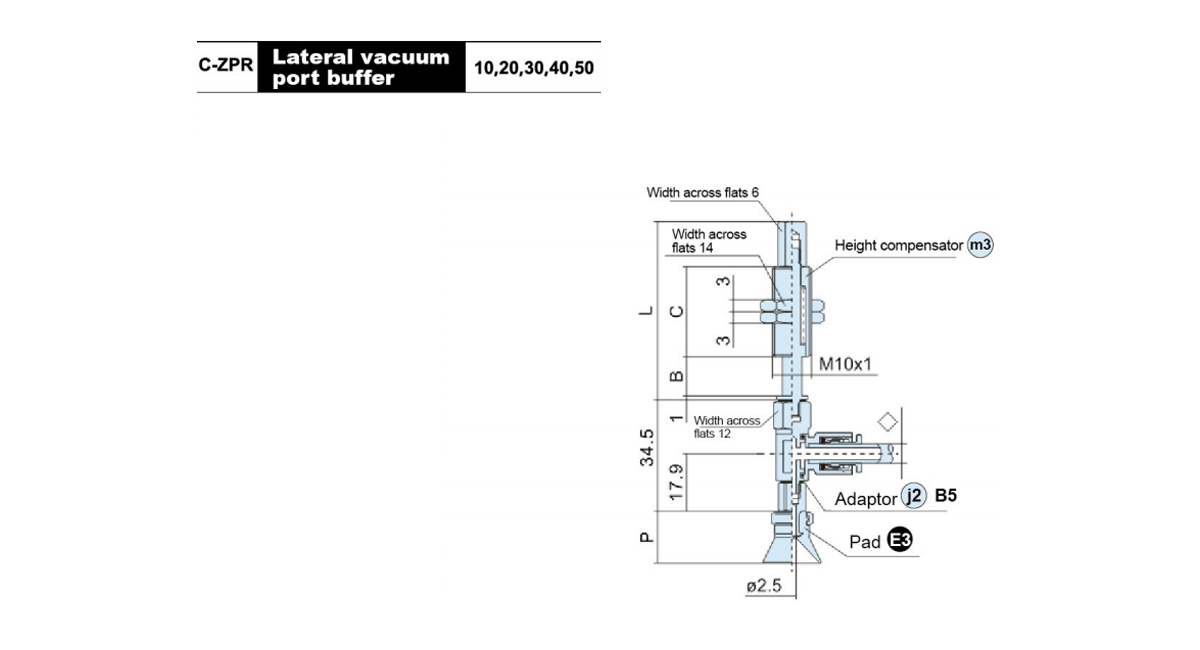

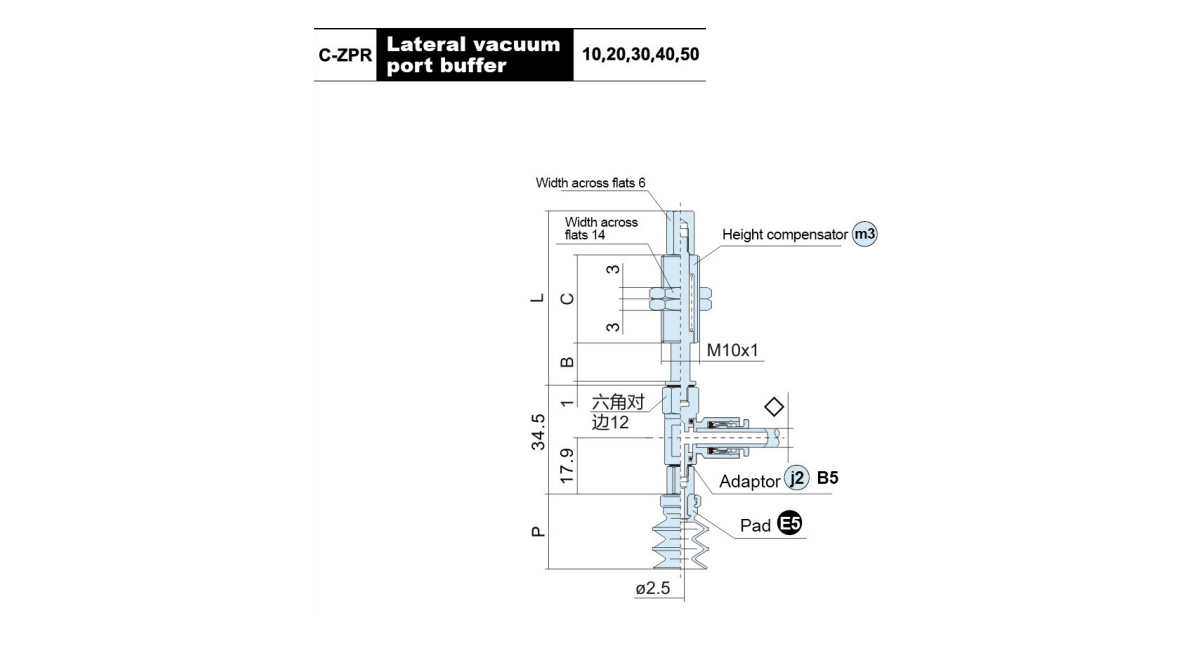

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16

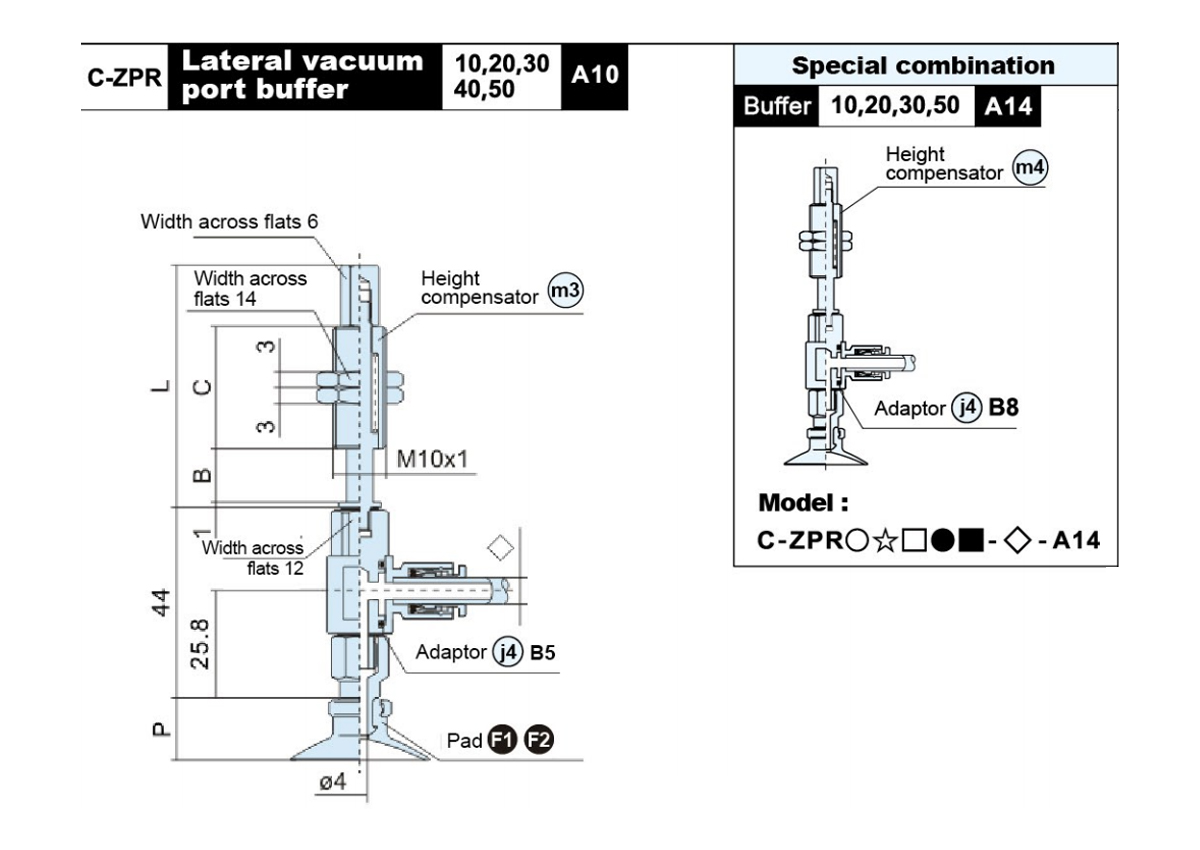

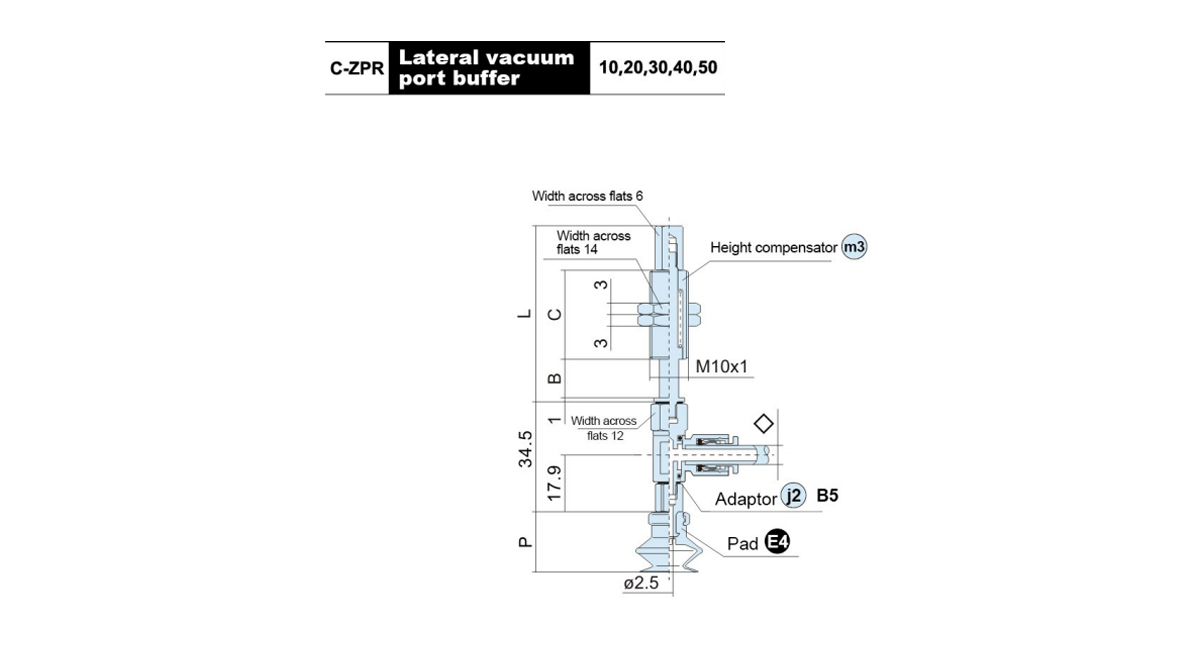

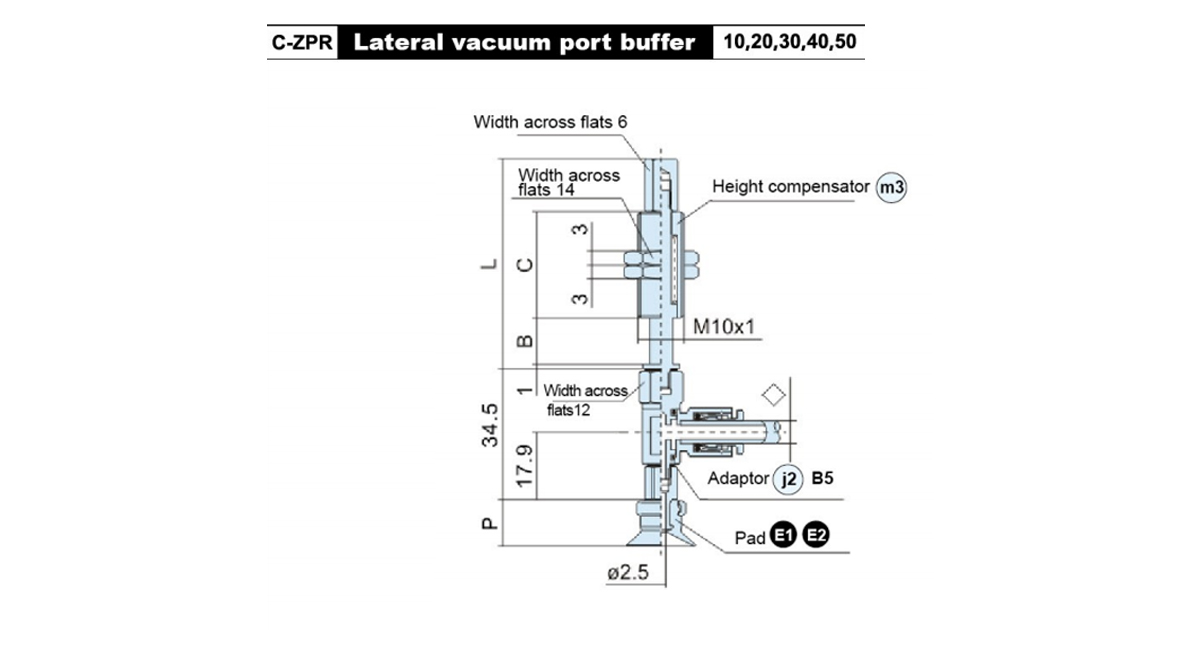

    C-ZPR○☆□●10-◇-A10 10 23 45 12 12 12.5 ZPR2-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○☆□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J),
    Unable to rotate(K)

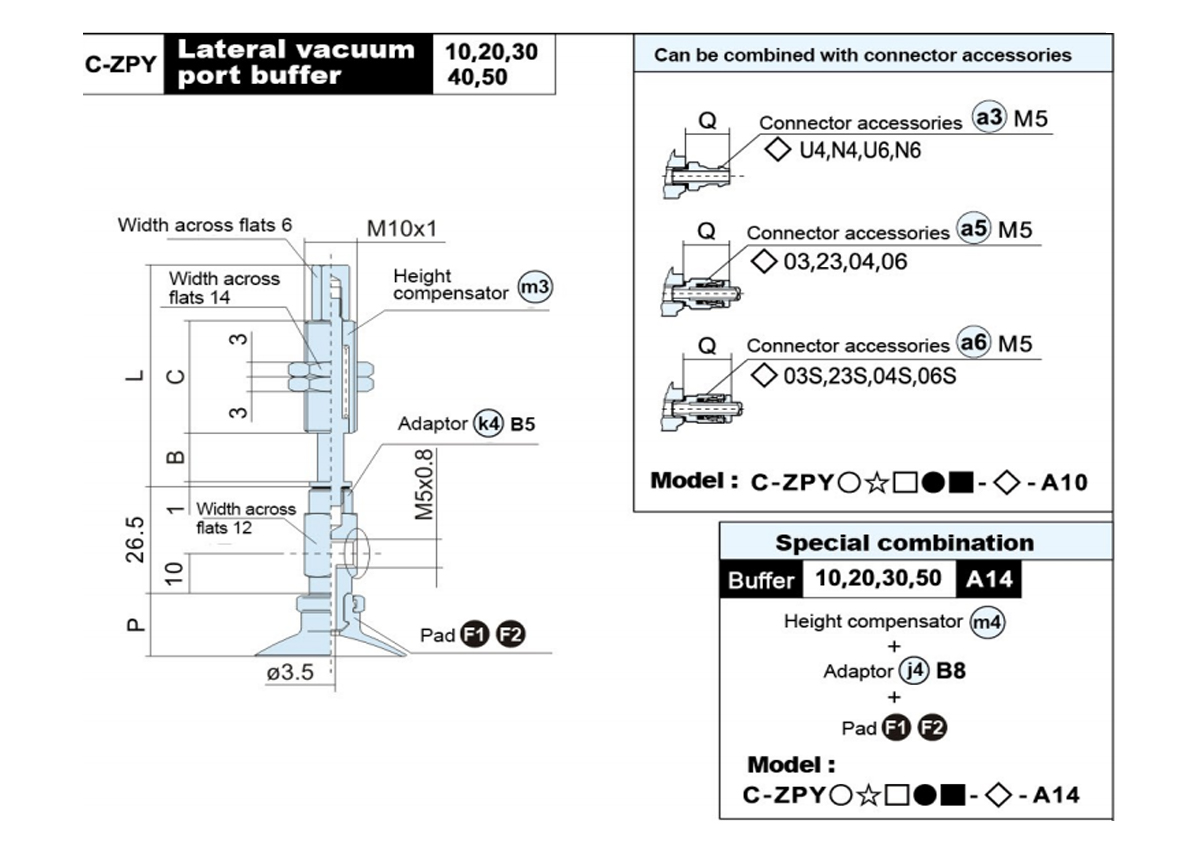

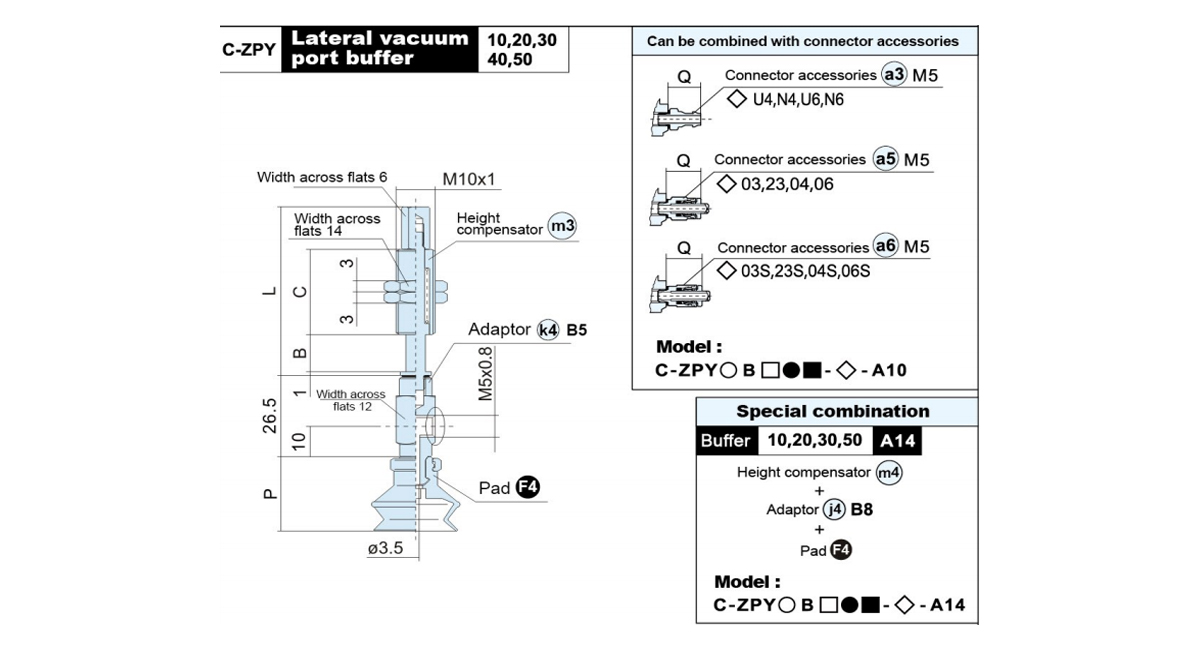

    Model B C L ○Pad Diameter P m3 j⑫
    Bumper Support Model
    10 13 16

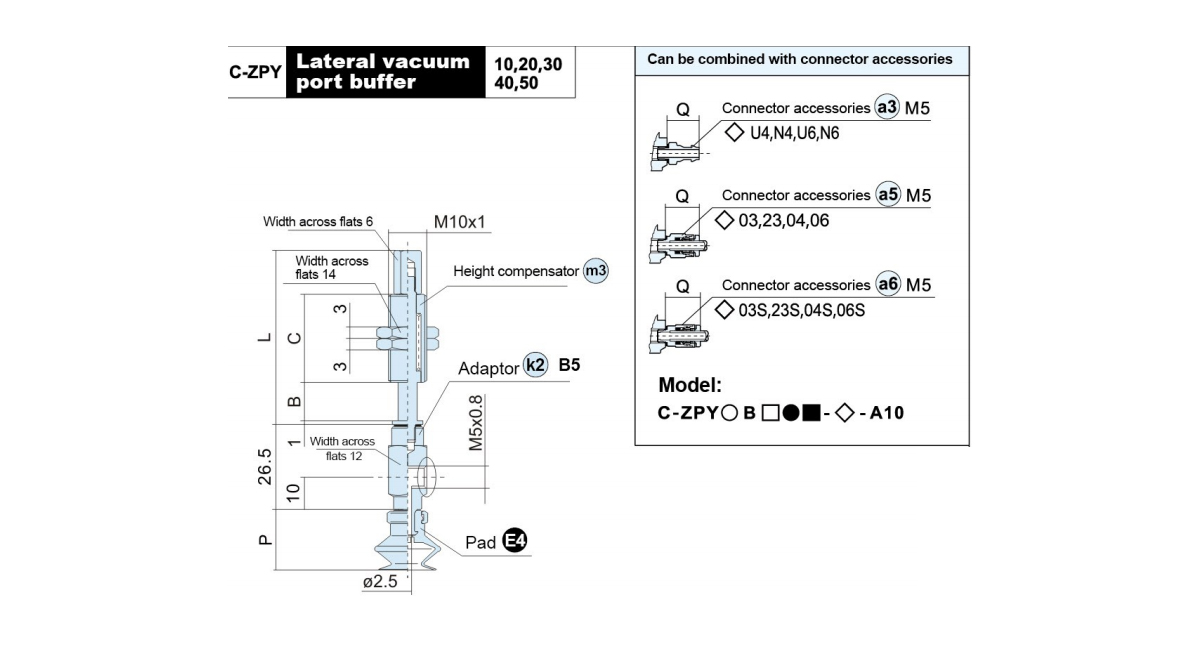

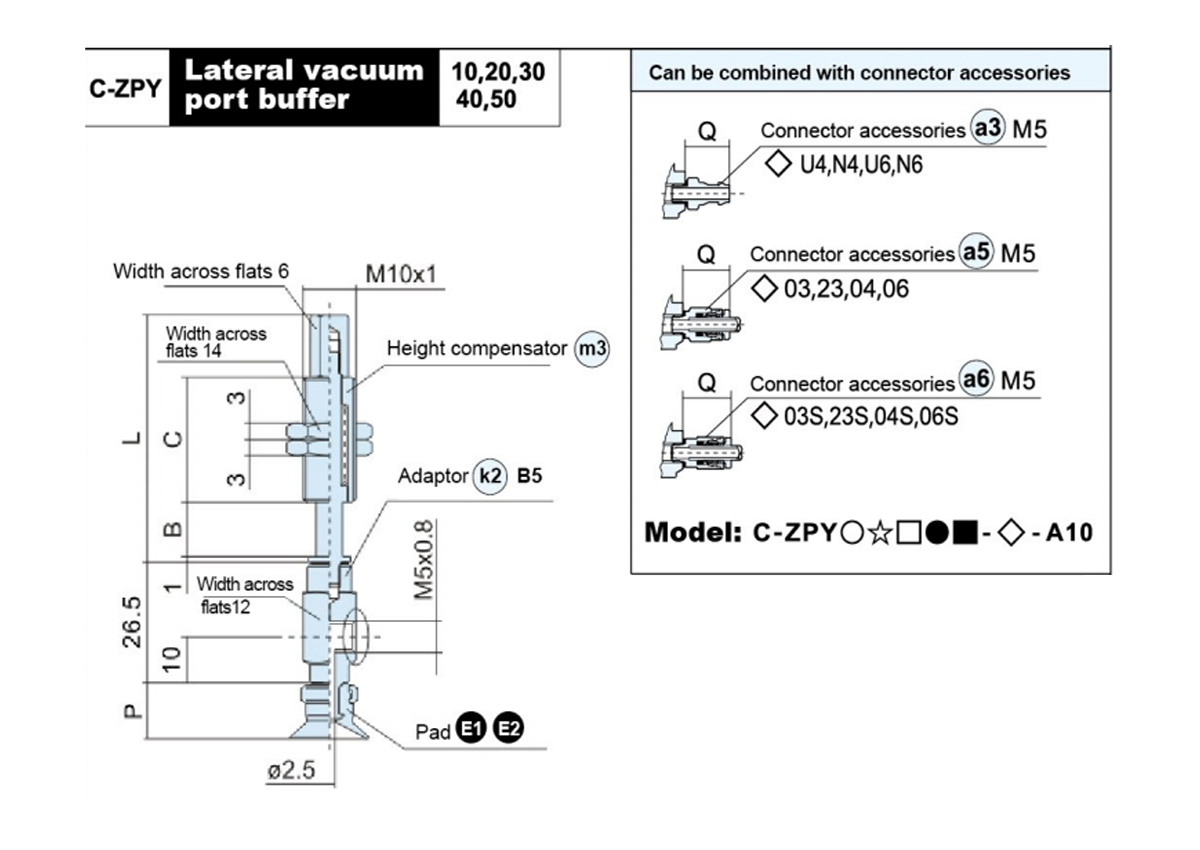

    C-ZPY○☆□●10-B5-A10 10 23 45 12 12 12.5 ZPY2-●10-B5-A10
    C-ZPY○☆口●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○☆□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with  ribs(C)
    ●   Height   compensator   type:Rotative(J),
    ■ Buffer stroke(mm):10,20,30,40,50  Unable to rotate(K)

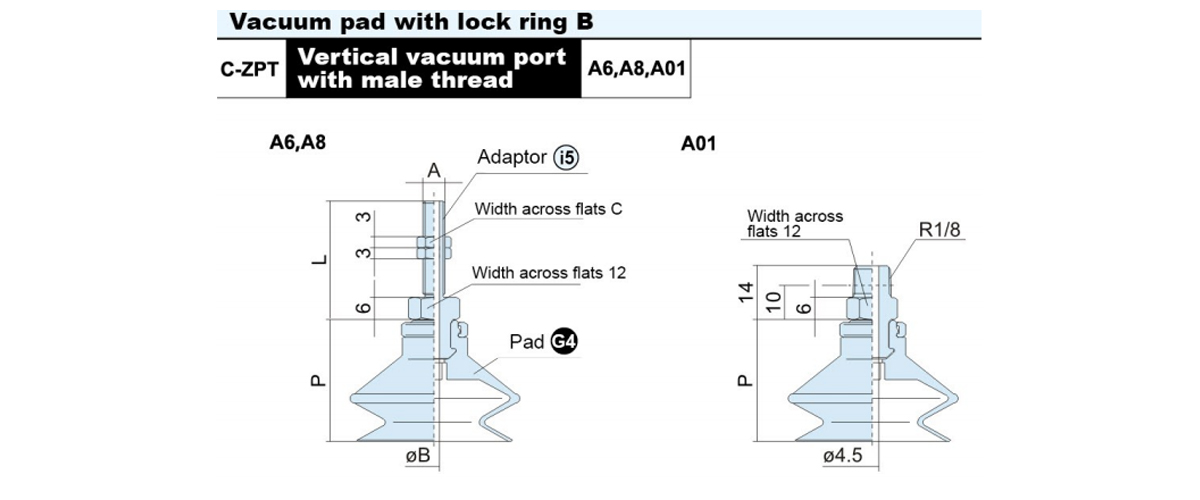

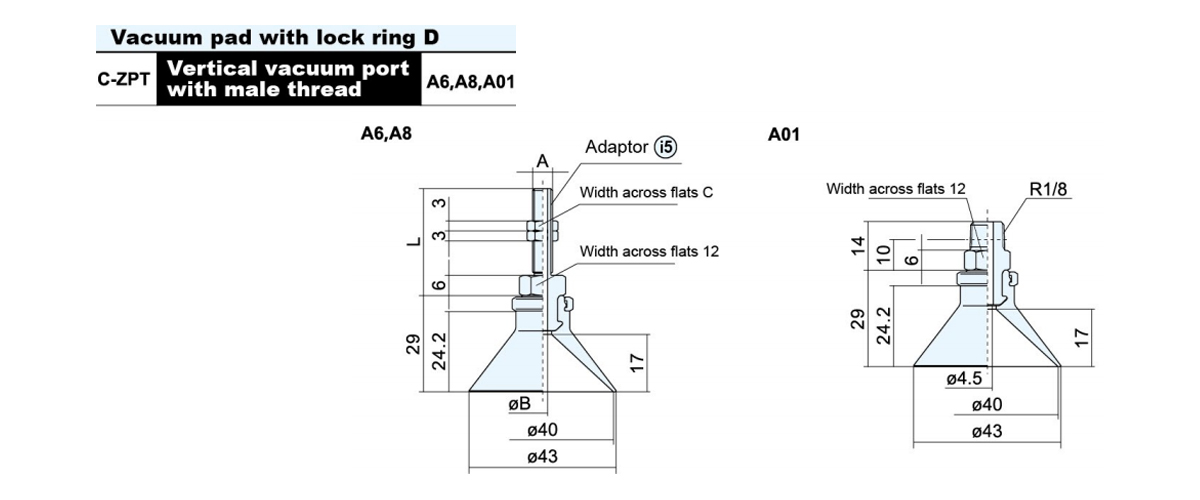

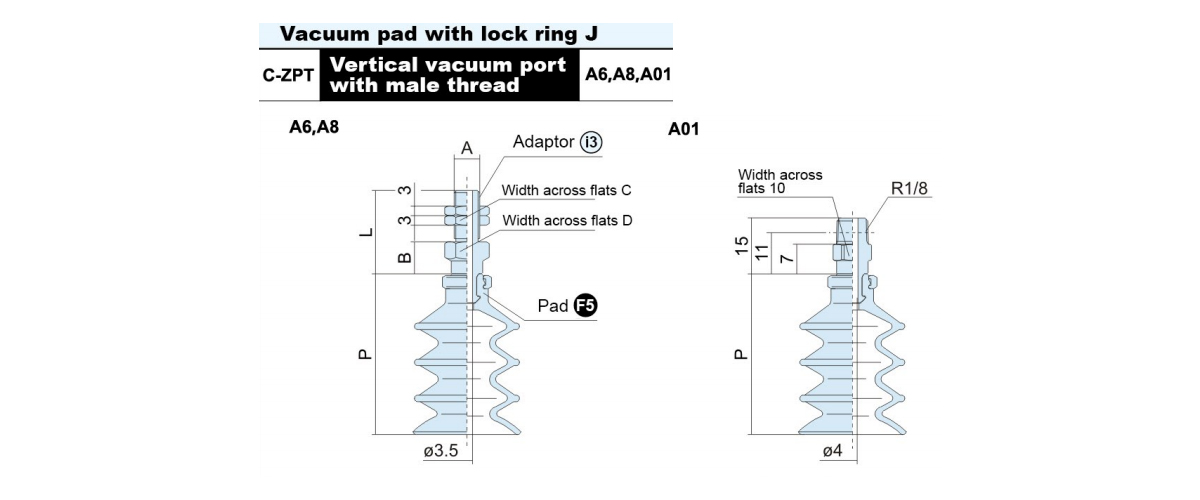

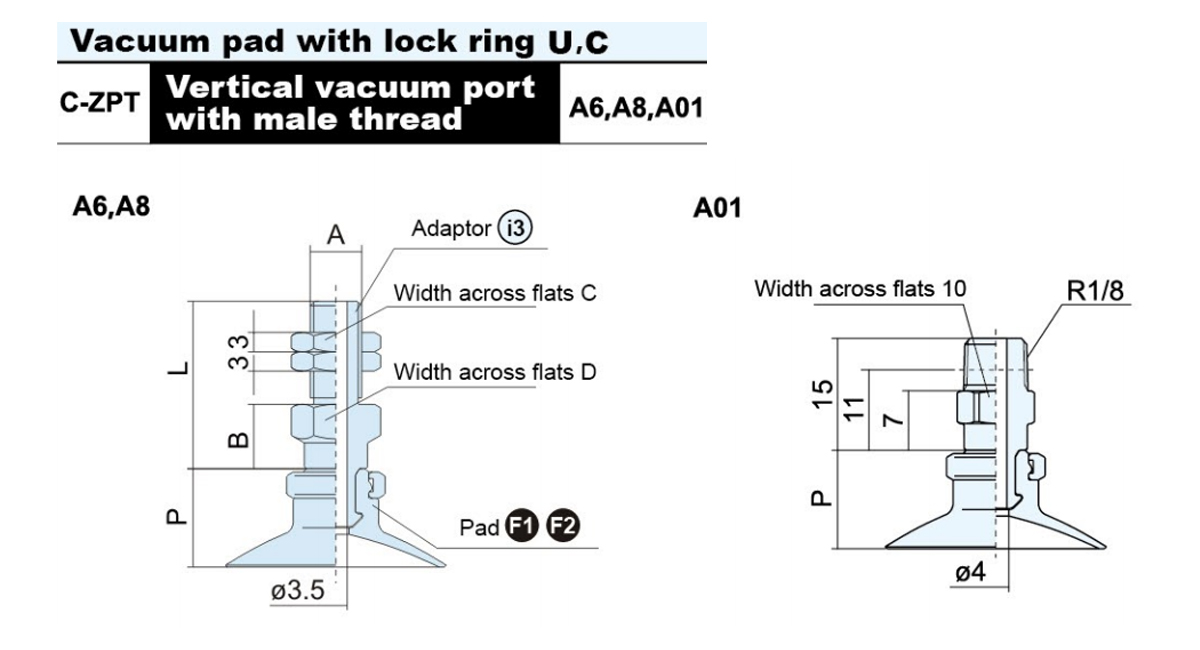

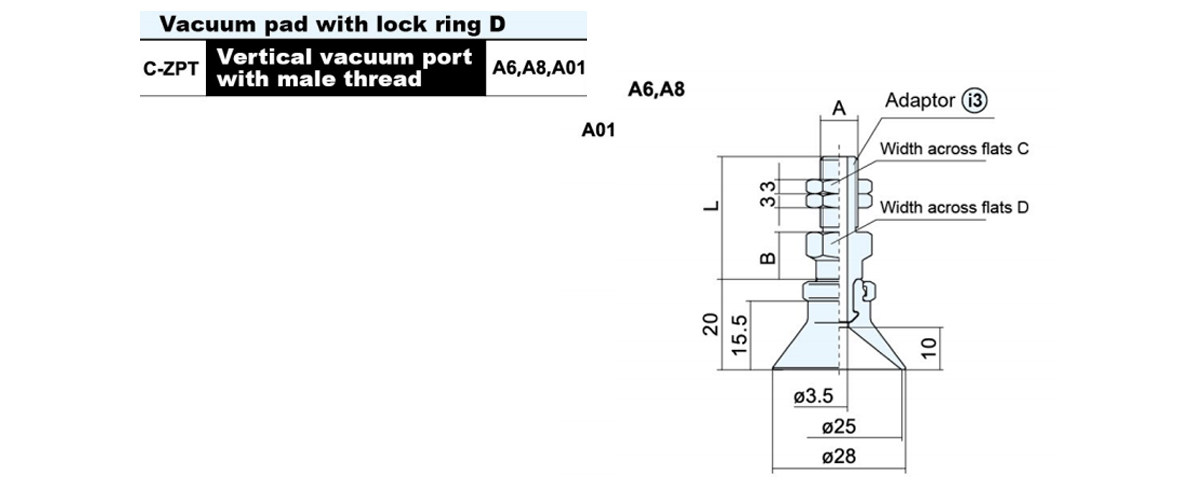

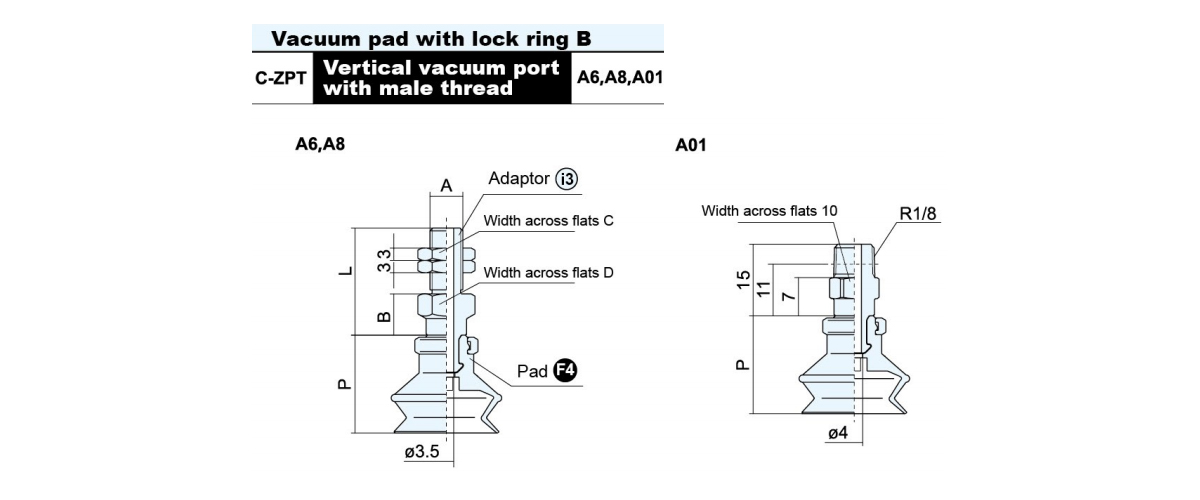

    Model A B C D L ○ Pad diameter P Adaptor Model
    20 25 32
    C-ZPT○☆□-A6 M6×1.0 5 8 8 31 14 14 14.5 ZPT3-A6
    C-ZPT○☆□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○☆□-A01 - - - - - ZPT3-A01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

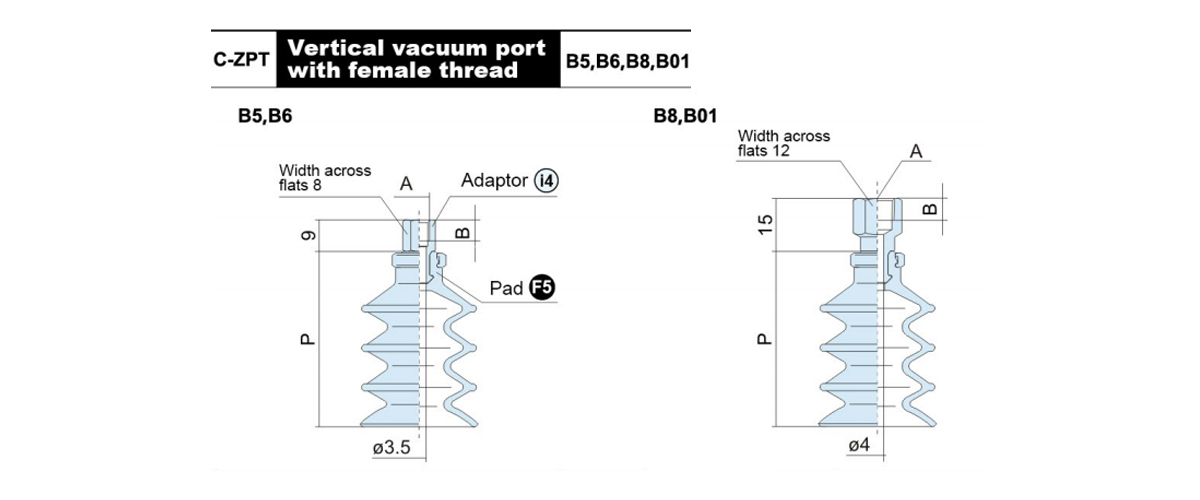

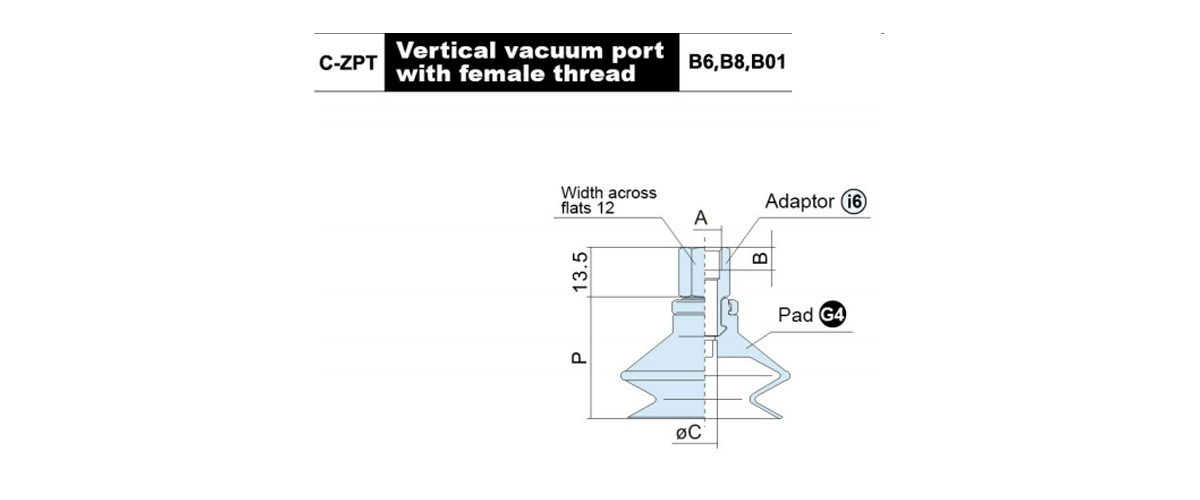

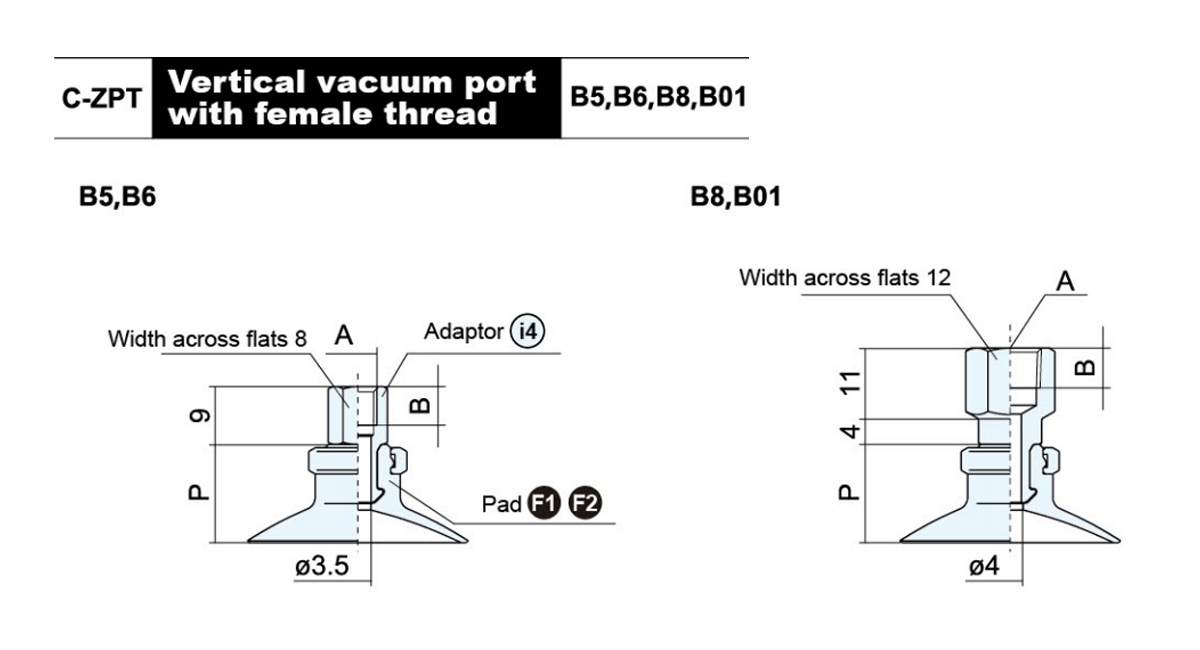

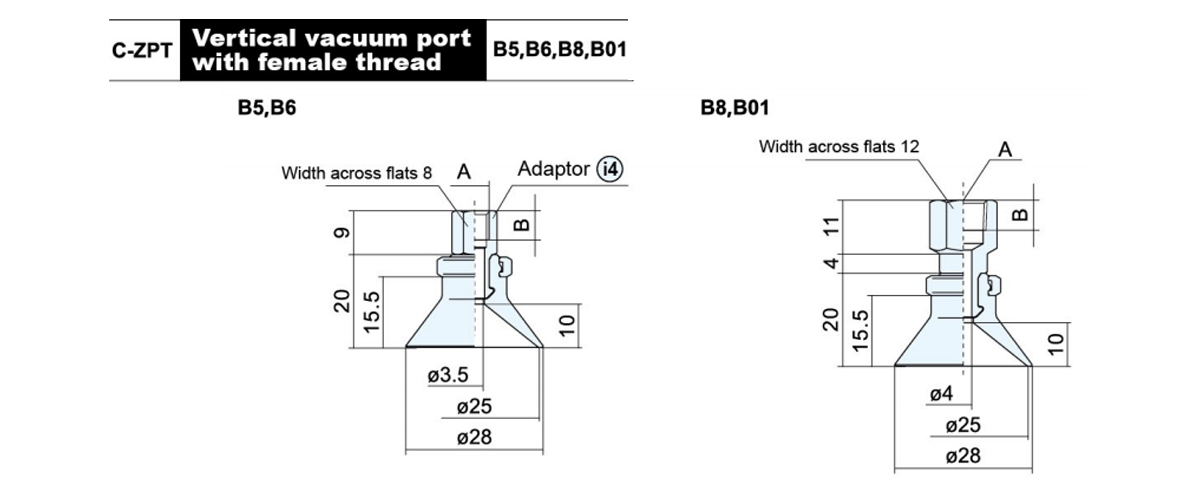

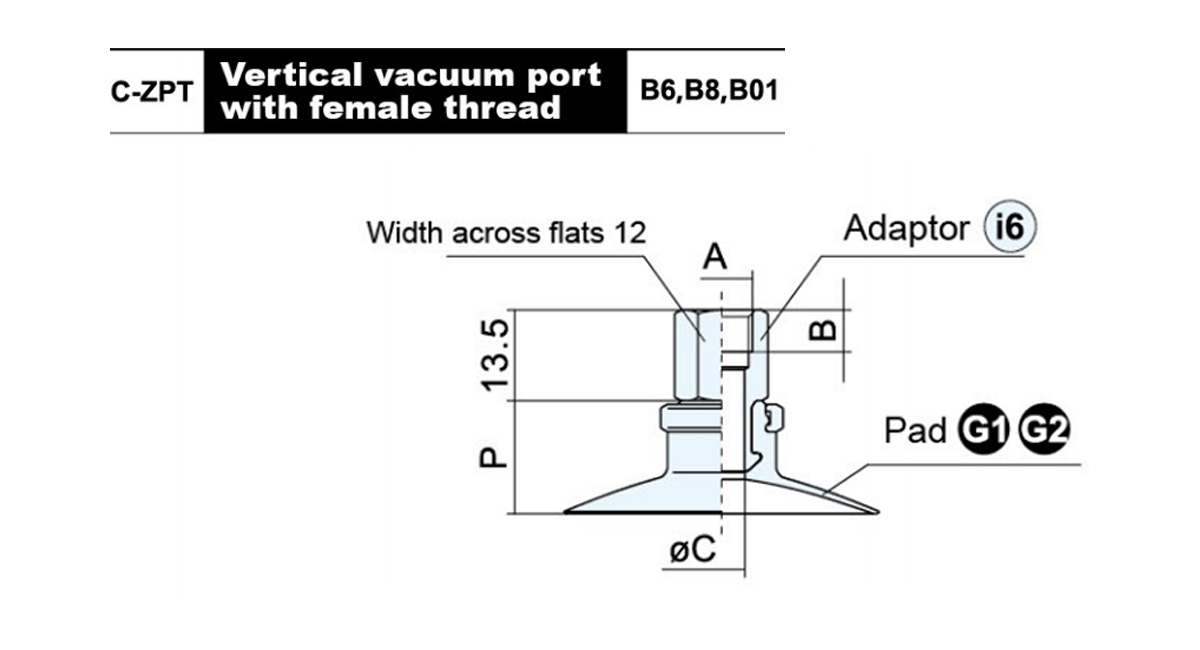

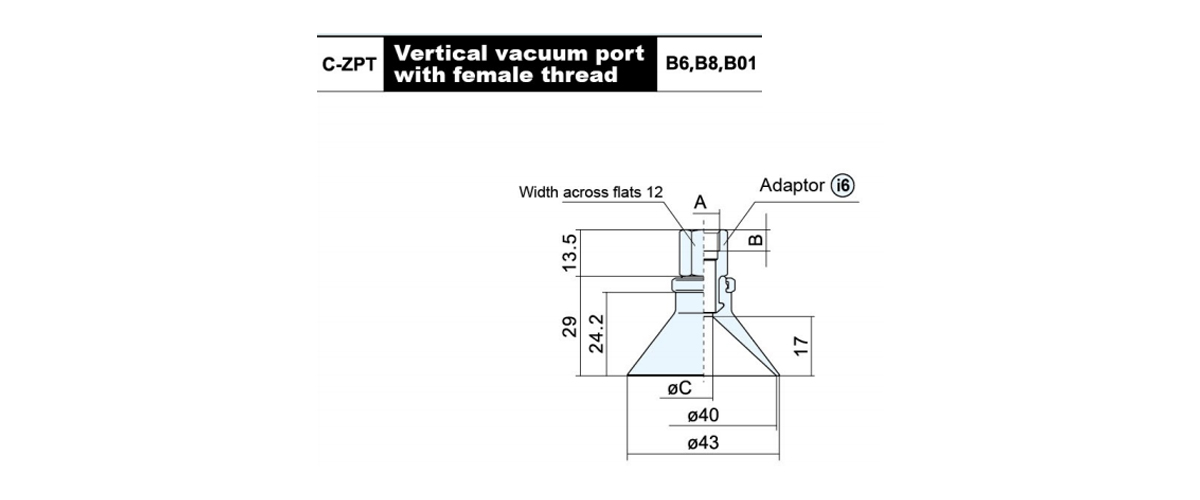

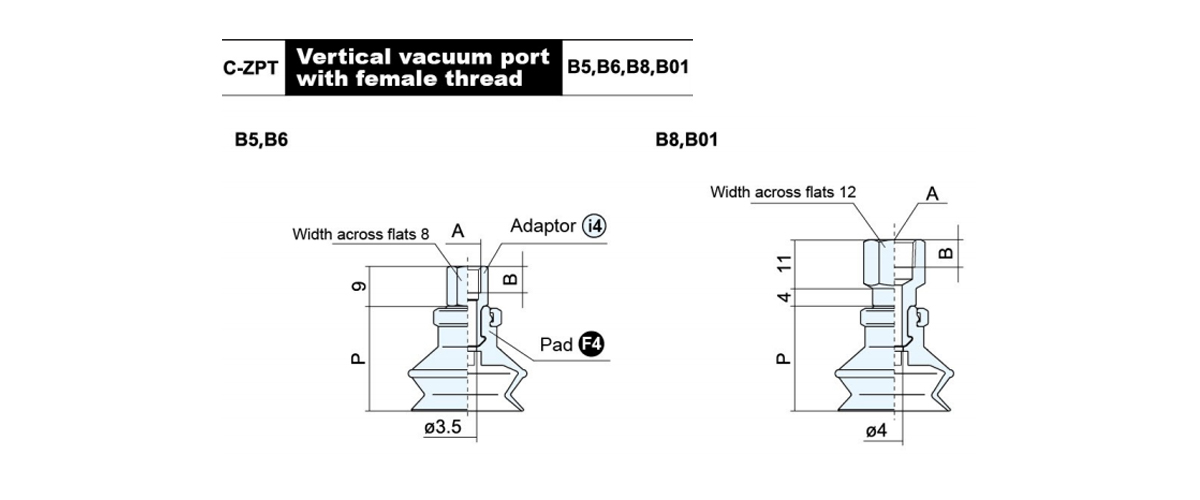

    Model A B ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPT○☆□-B5 M5×0.8 5 14 14 14.5 ZPT3-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○☆□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

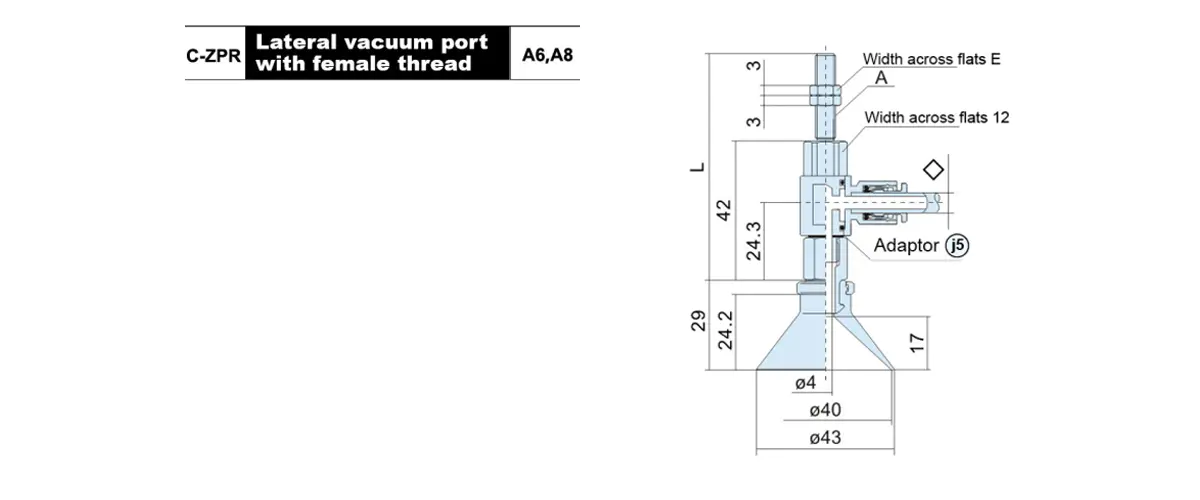

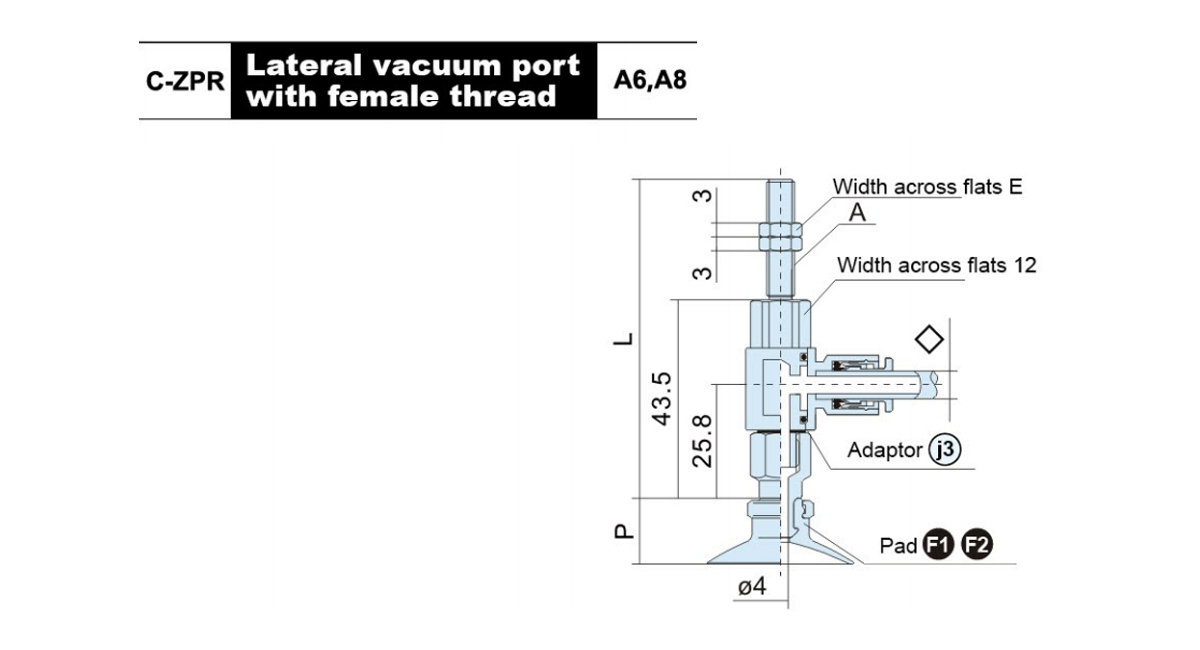

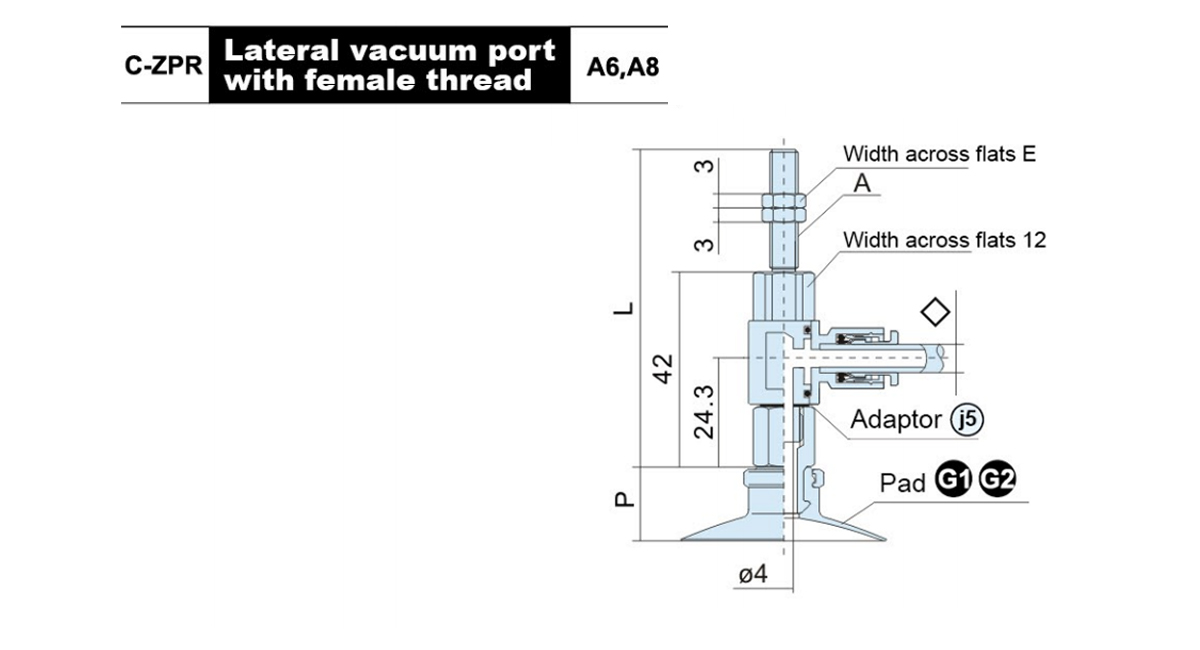

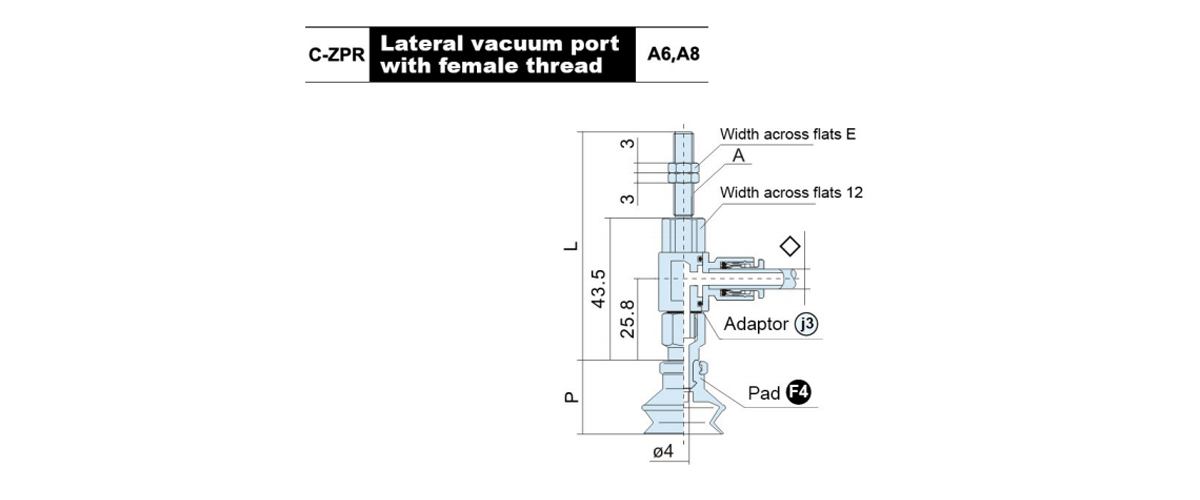

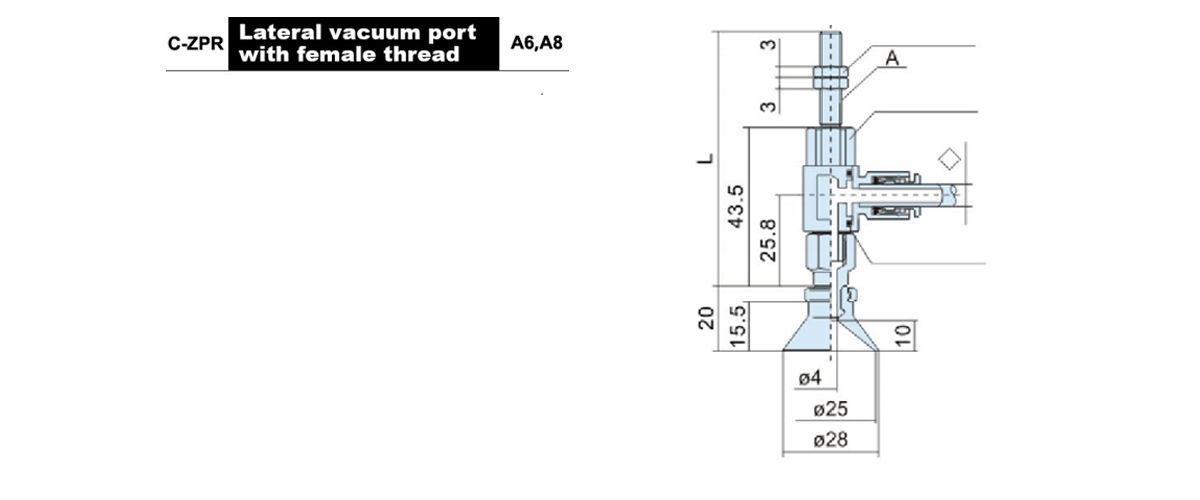

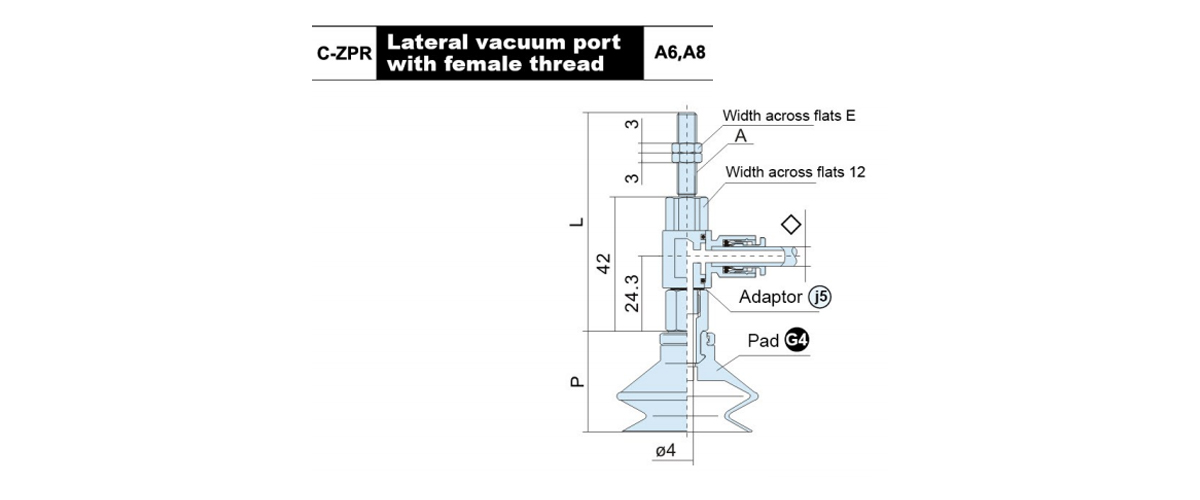

    Model A E L ○Pad diameter P Adaptor Model
    20 25 32

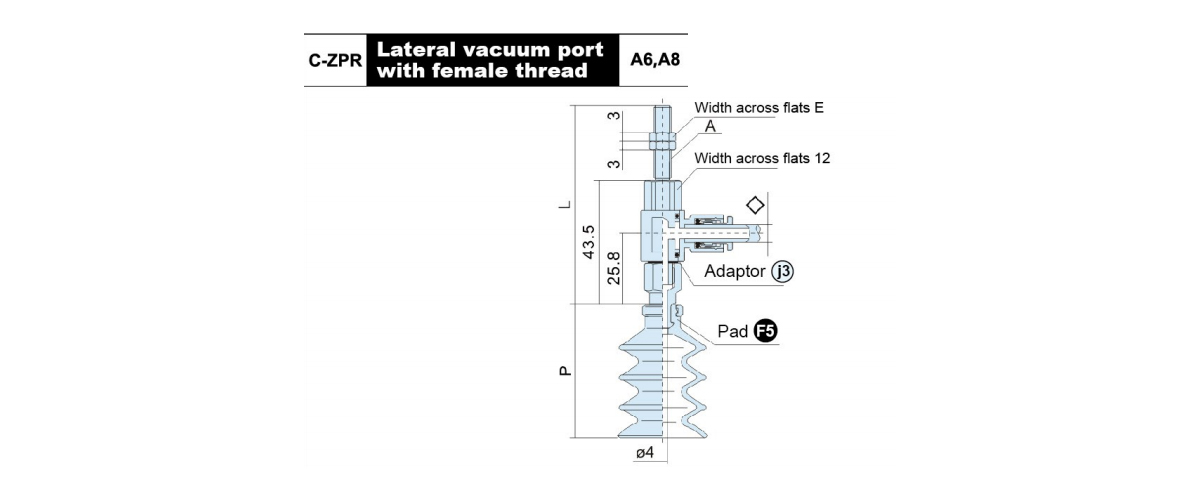

    C-ZPR○☆□-◇-A6 M6×1.0 8 69.5 14 14 14.5 ZPR3-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)    ◇Vacuum port connection:04,06,08

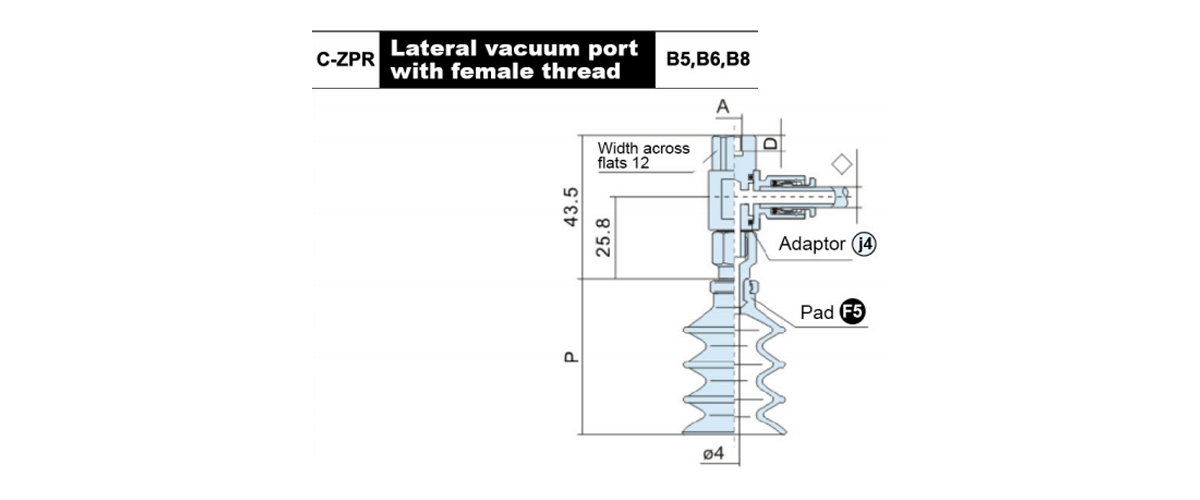

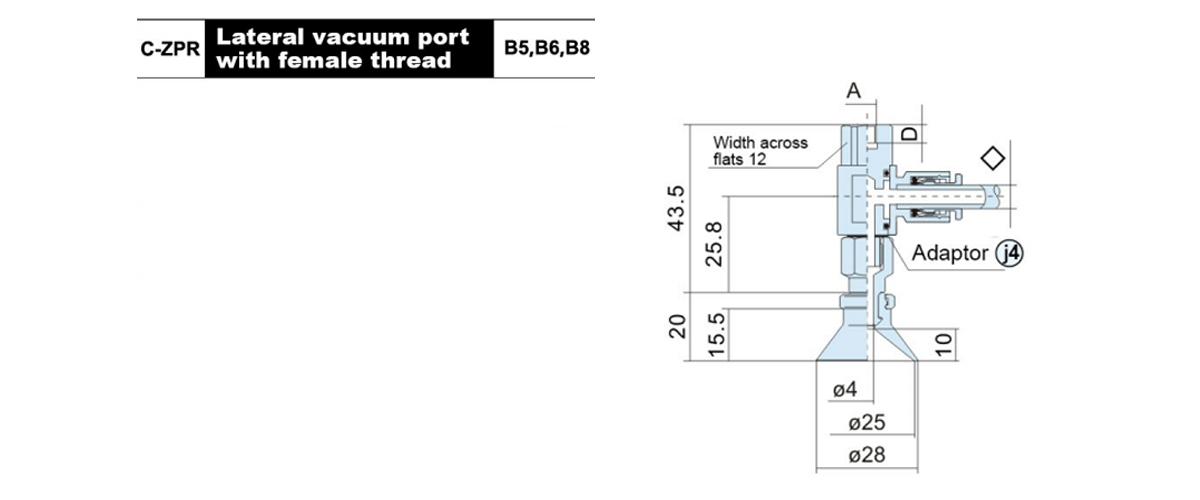

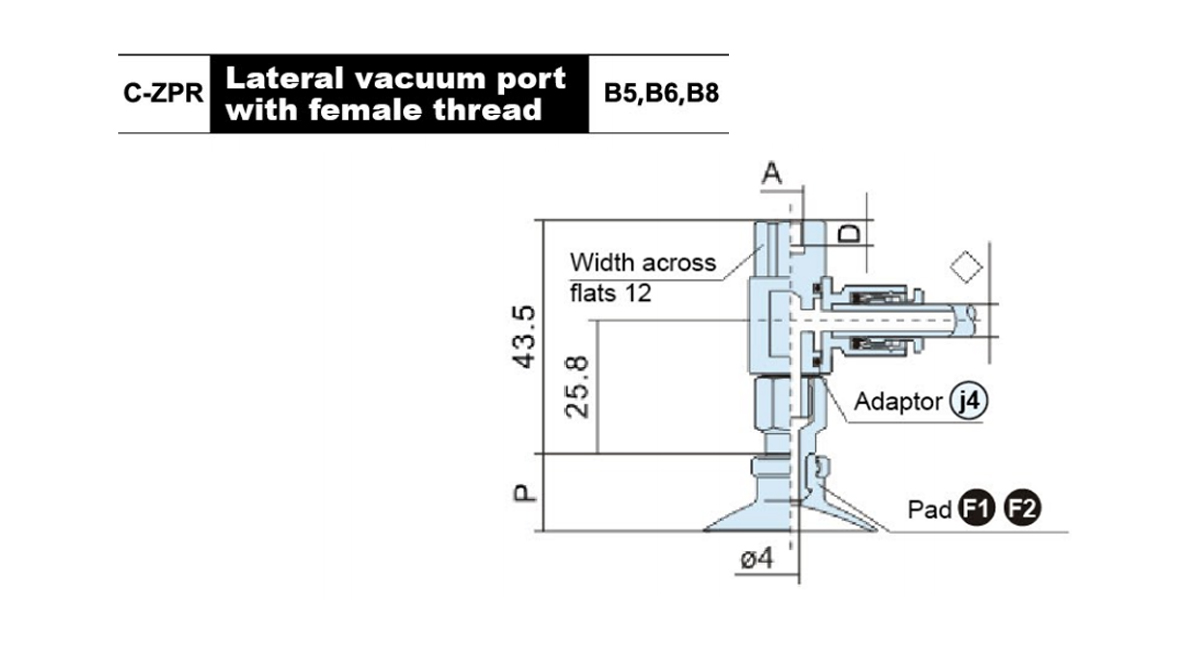

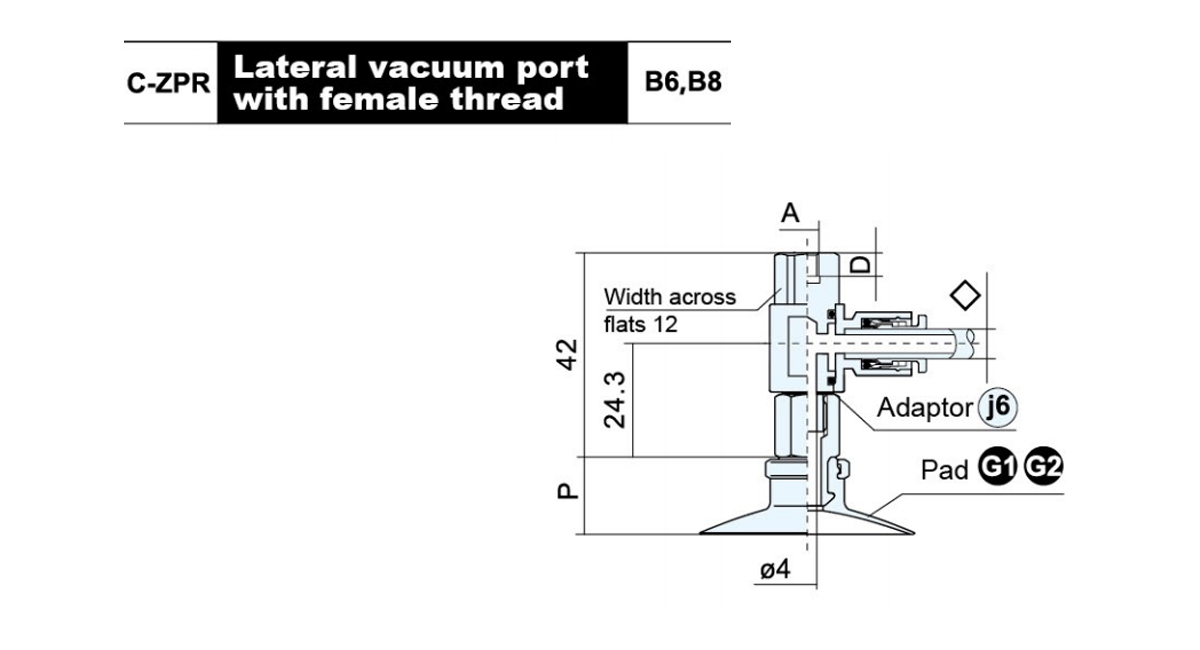

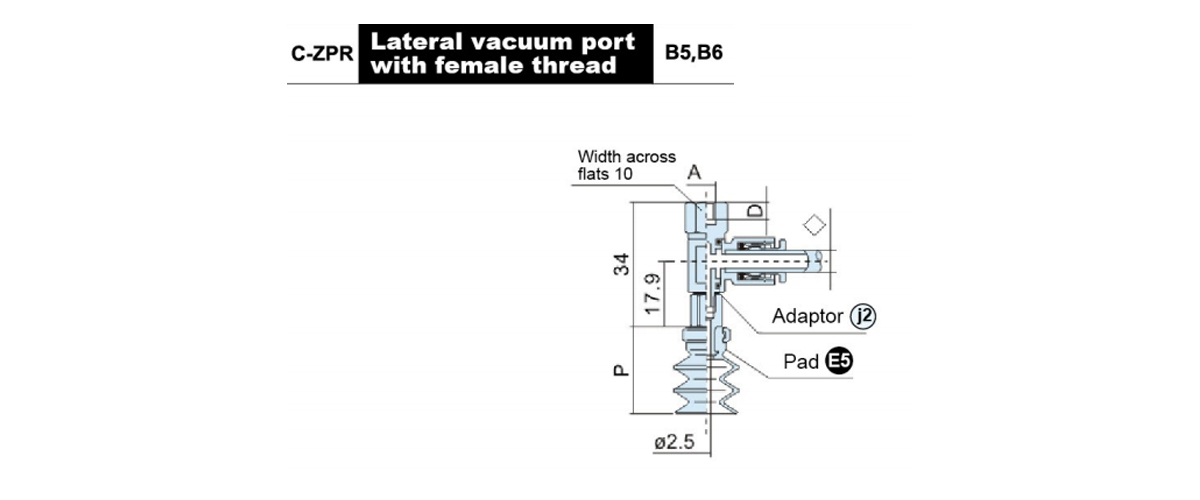

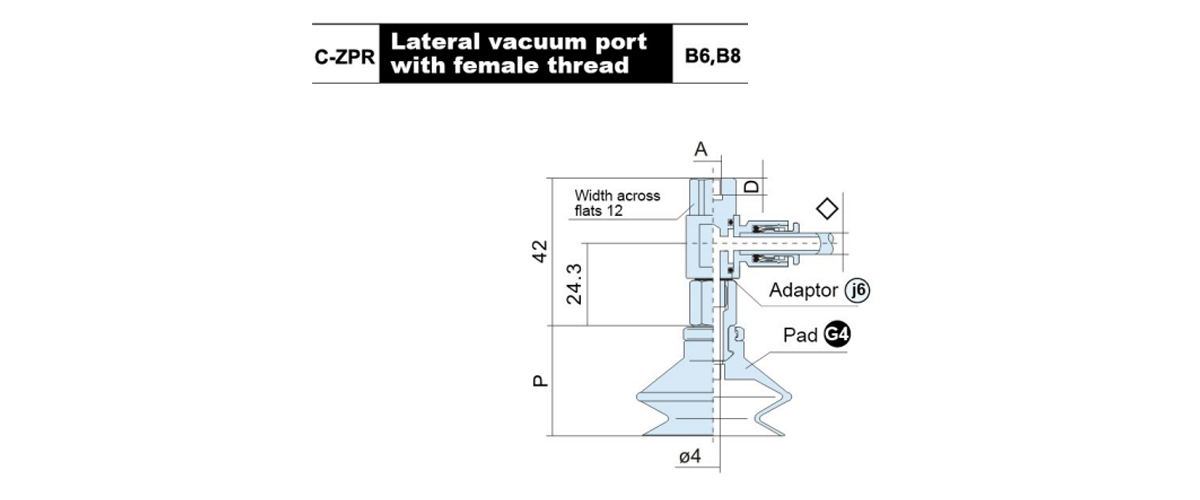

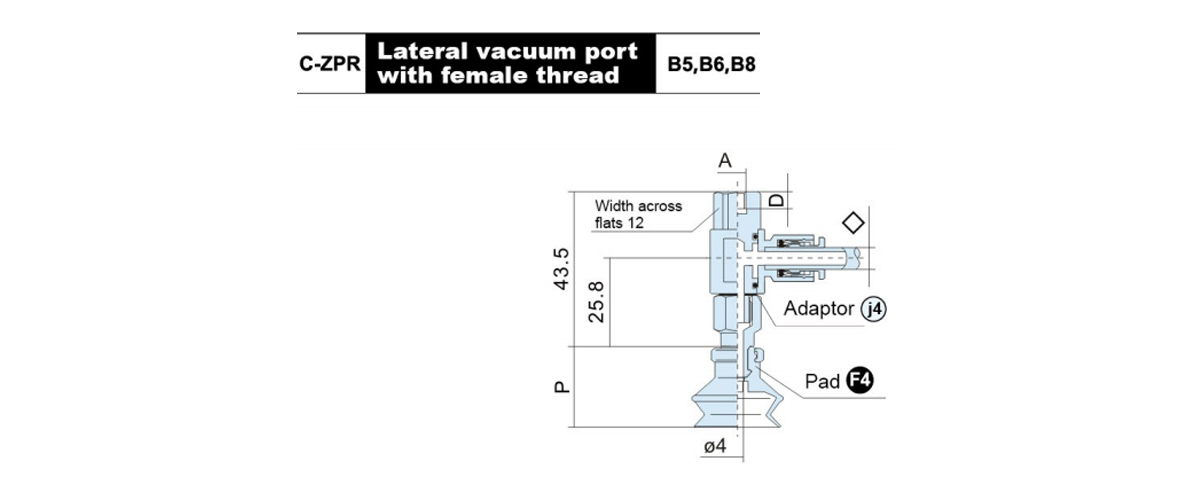

    Model A D ○ Pad diameter P Adaptor Model
    20 25 32
    C-ZPR○☆口 - ◇-B5 M5×0.8 5 14 14 14.5 ZPR3-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)          Vacuum port connection:04,06,08

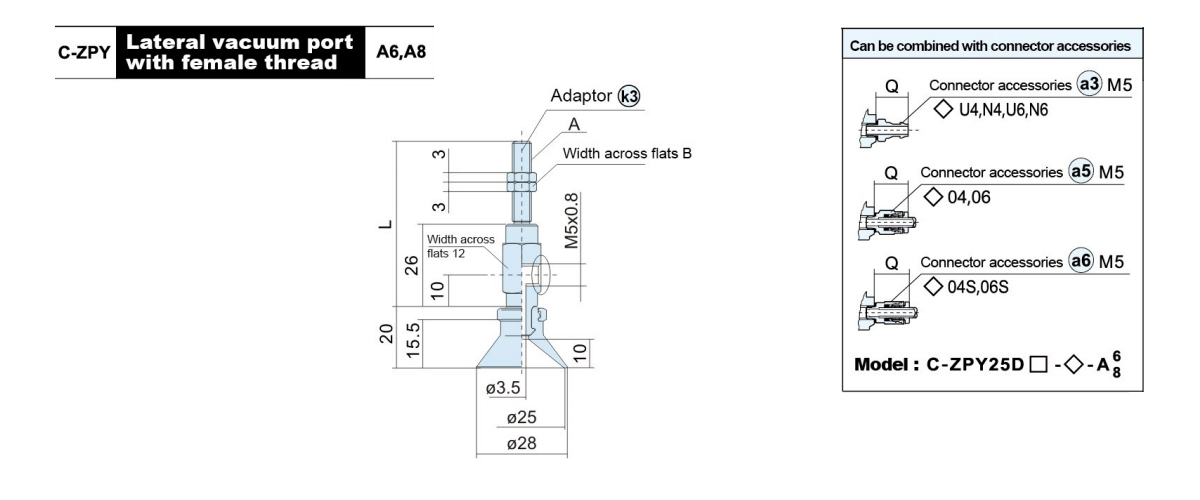

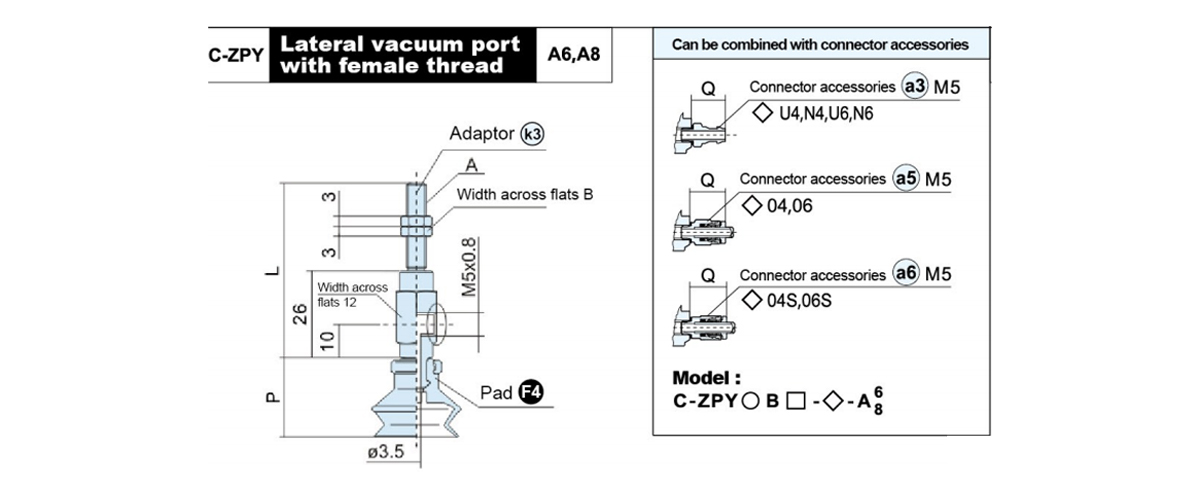

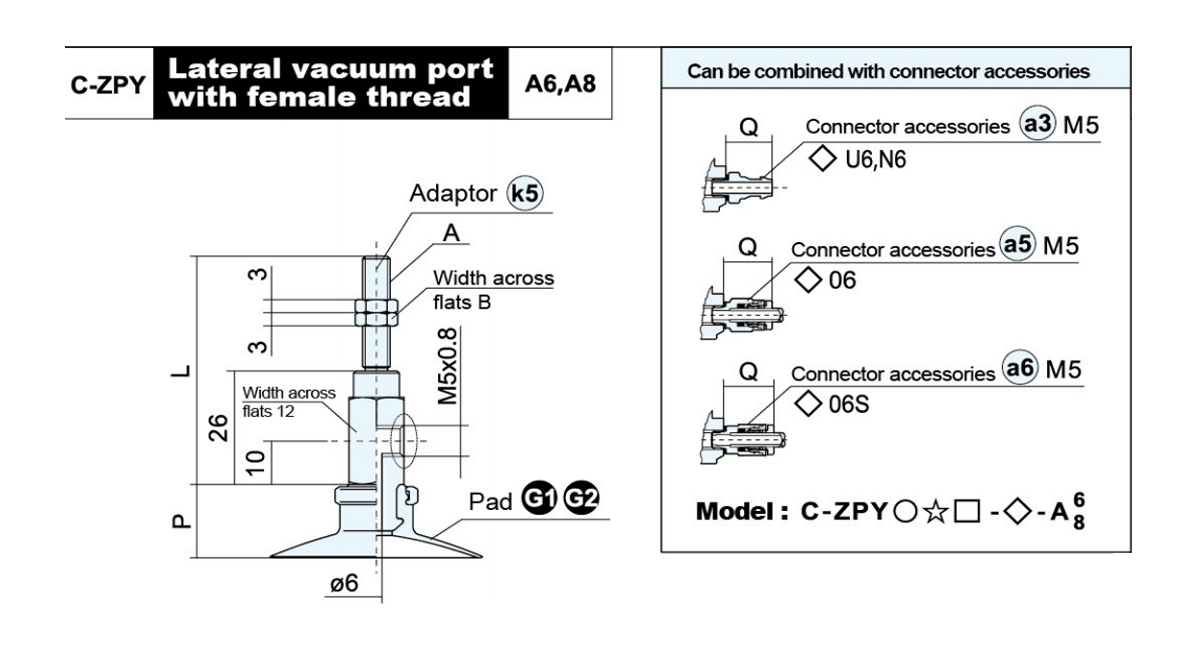

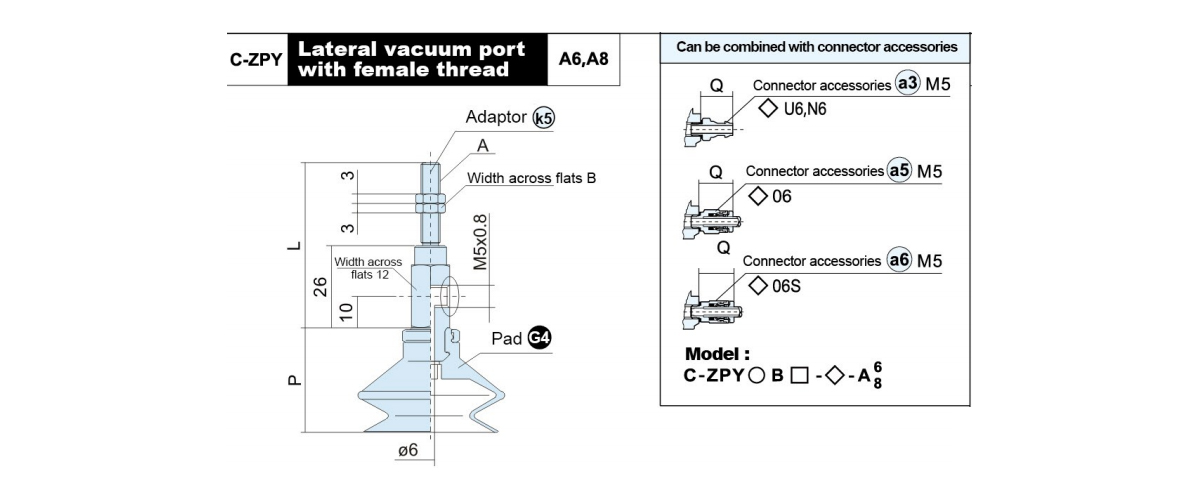

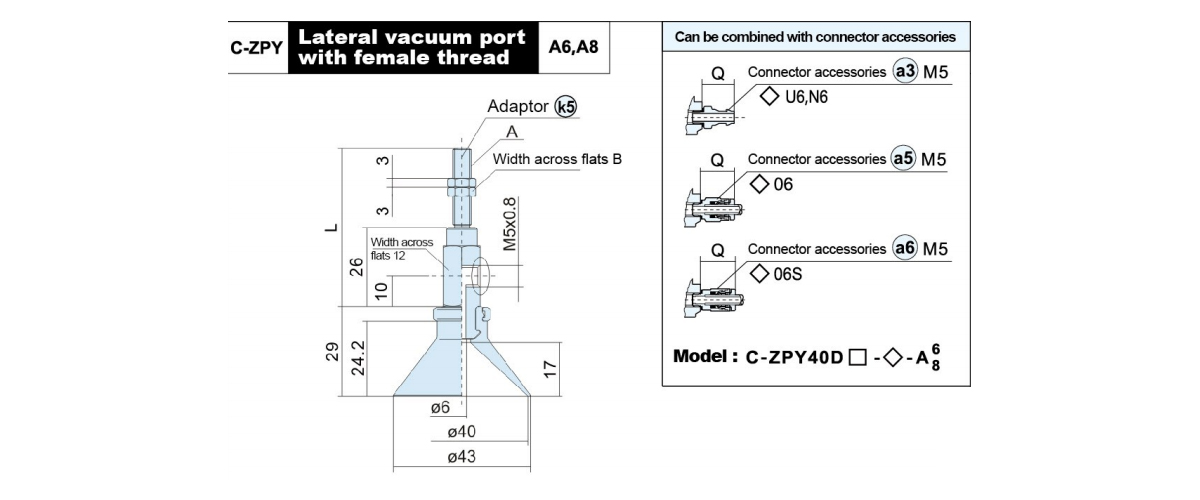

    Model A B L ○Pad diameter P Adaptor Model
    20 25 32

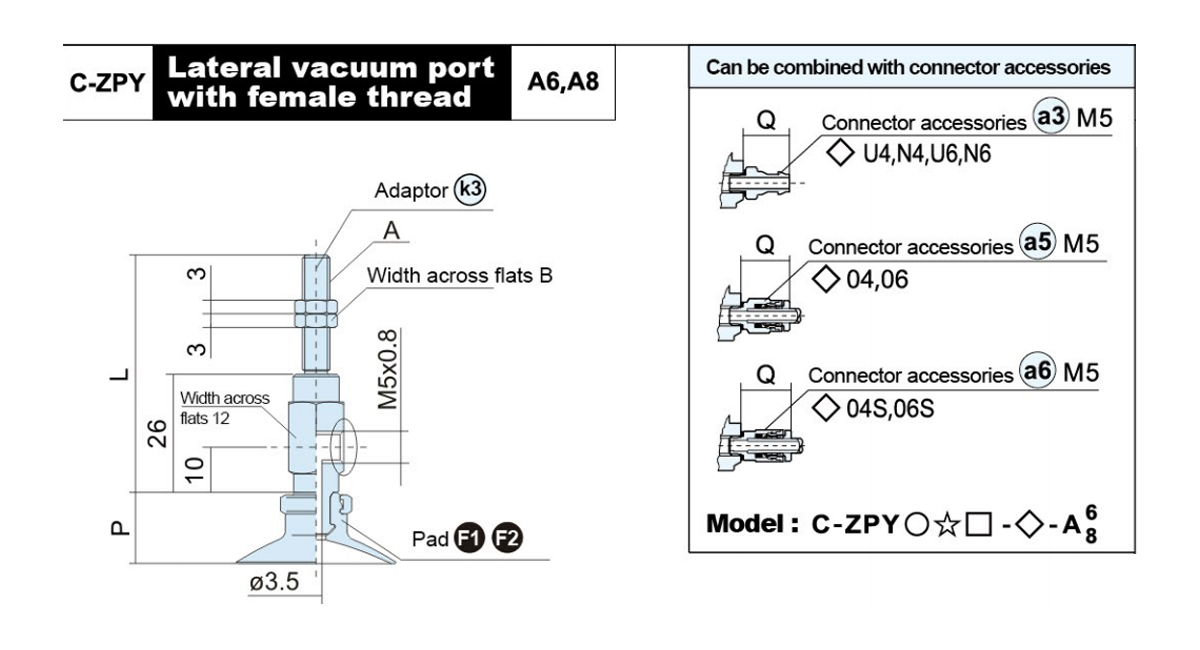

    C-ZPY○☆□-B5-A6 M6×1.0 8 54 14 14 14.5 ZPY3-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

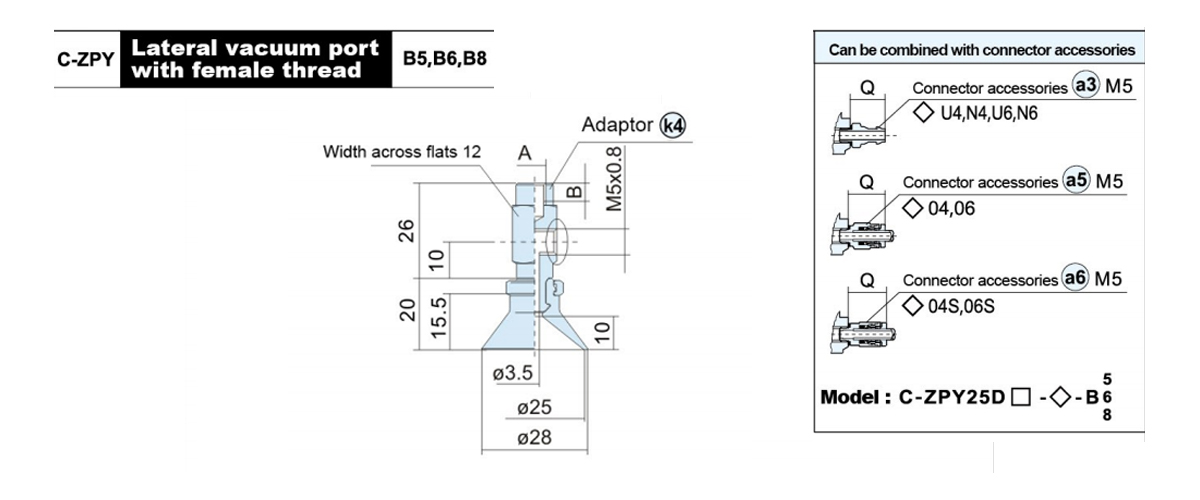

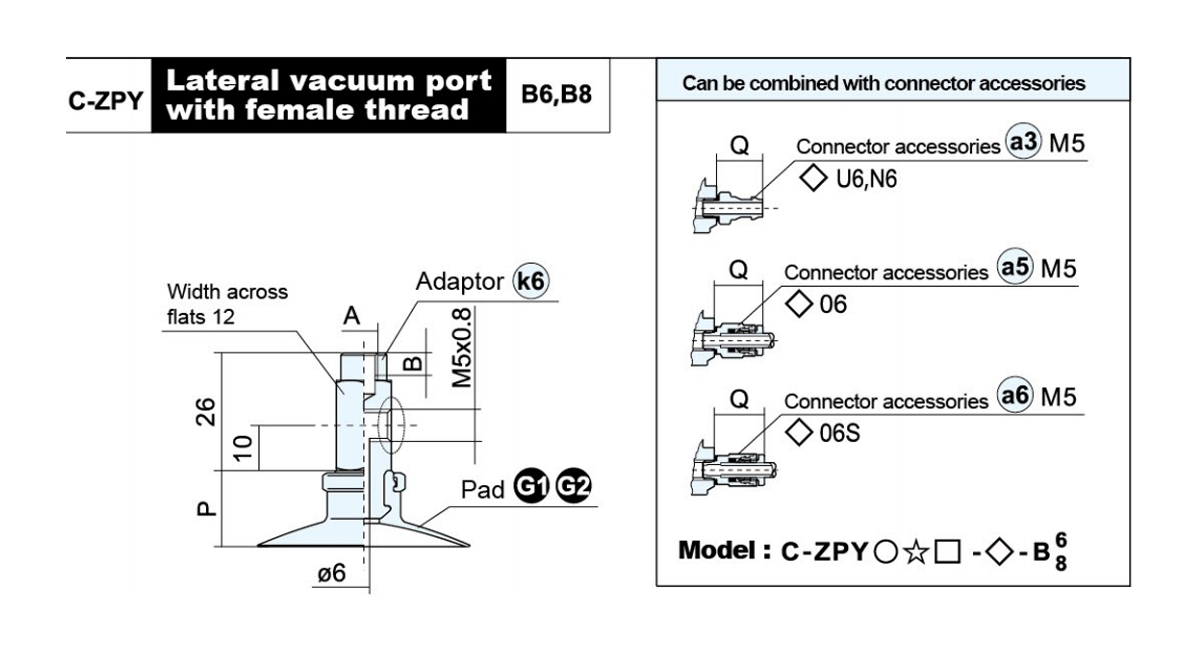

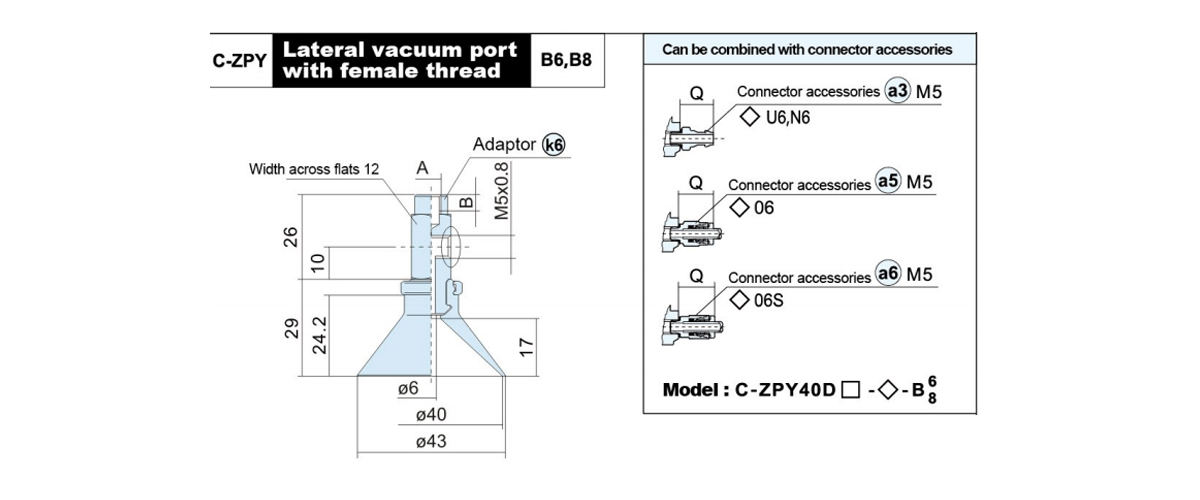

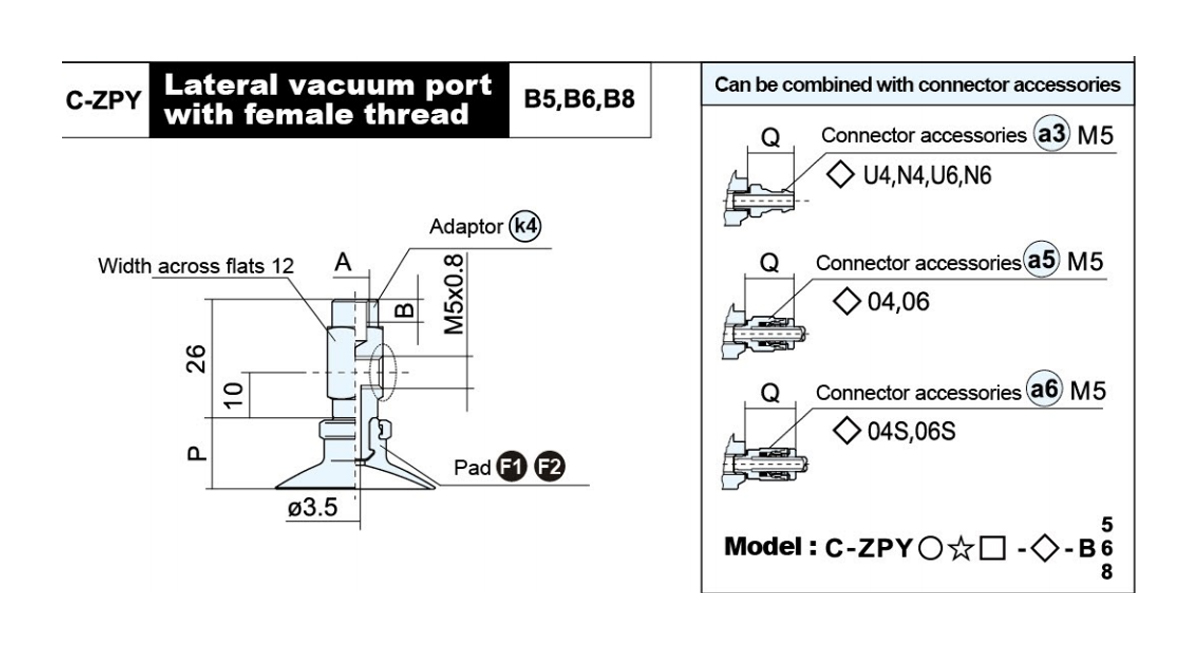

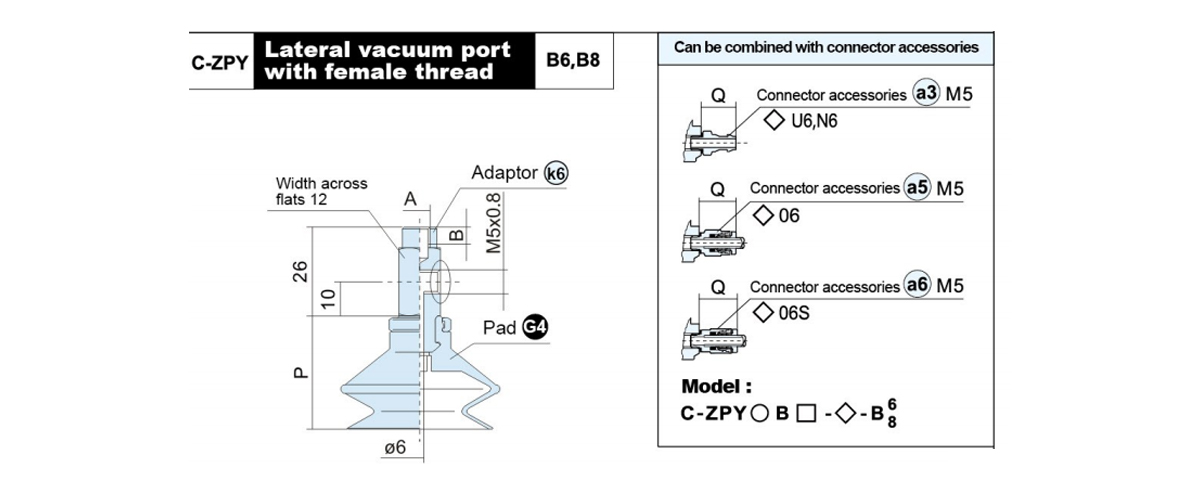

    Model A B ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPY○☆□-B5-B5 M5×0.8 5 14 14 14.5 ZPY3-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

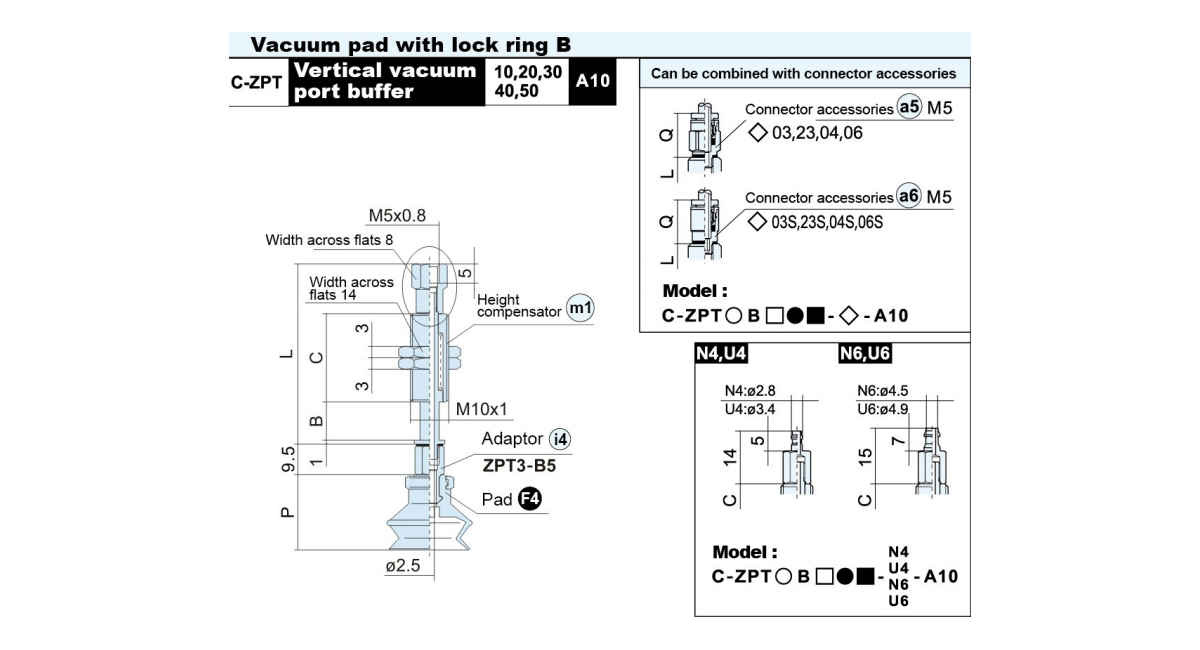

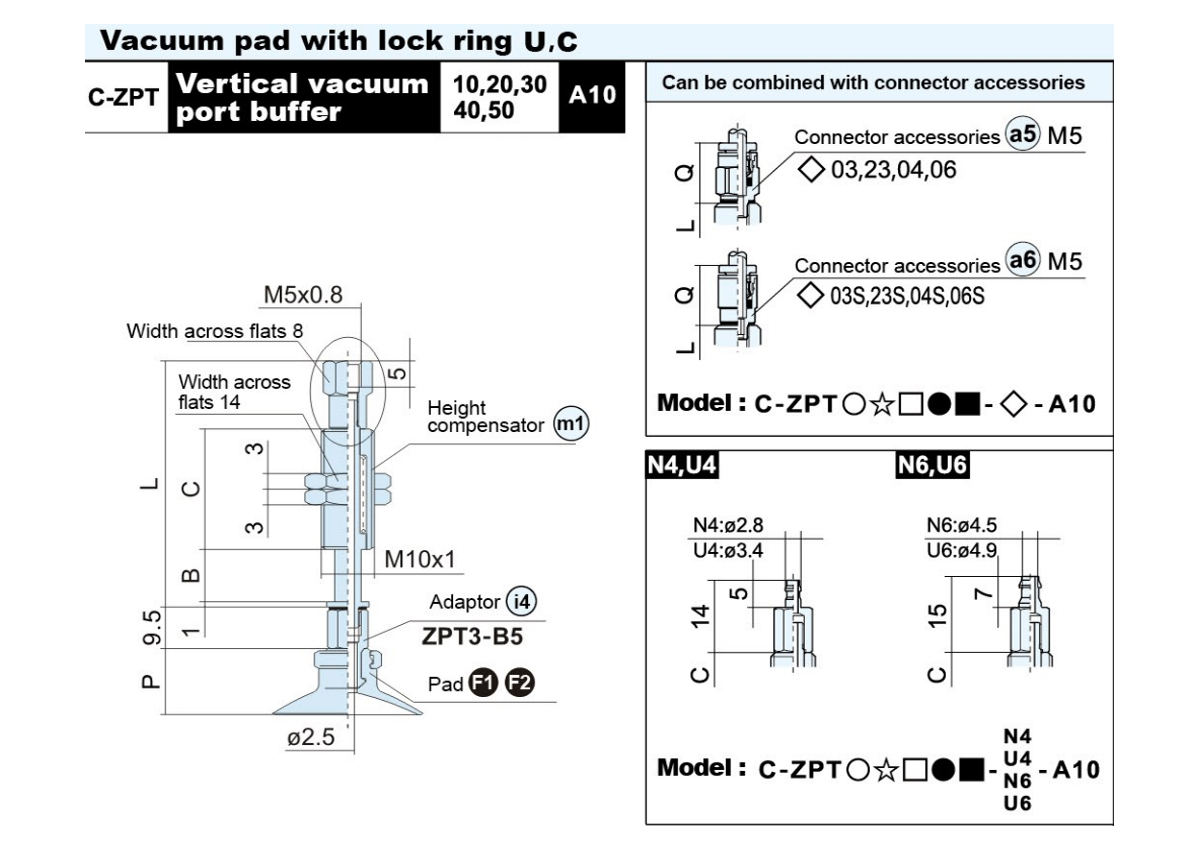

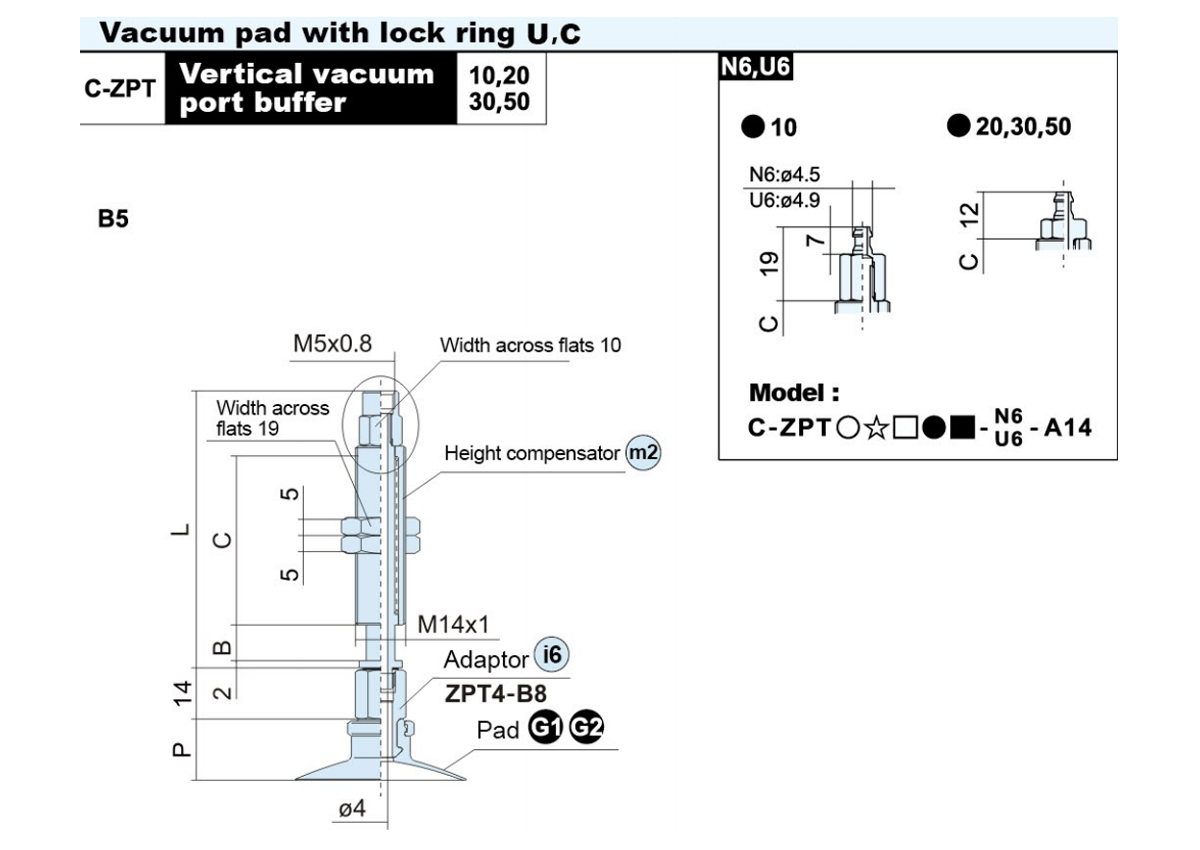

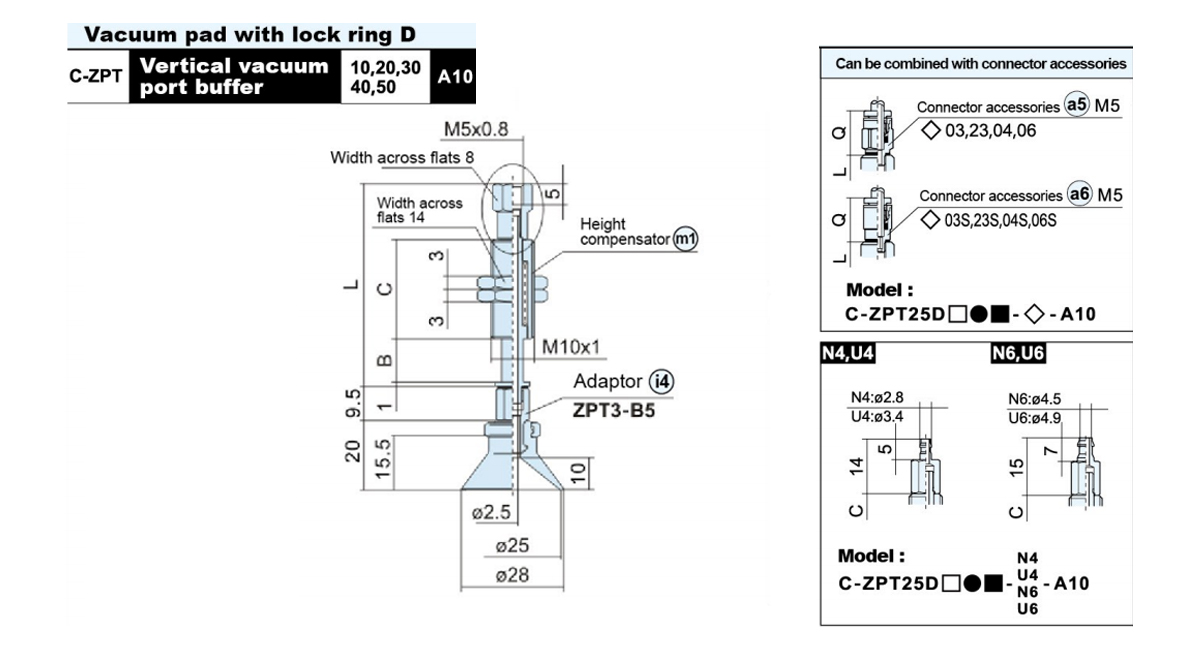

    Model B C L ○Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○☆□●10-B5-A10 10 23 47 14 14 14.5 ZPT3-●10-B5-A10
    C-ZPT○☆□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○☆□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○☆□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○☆□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ●Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,40,50                           Unable to rotate(K)

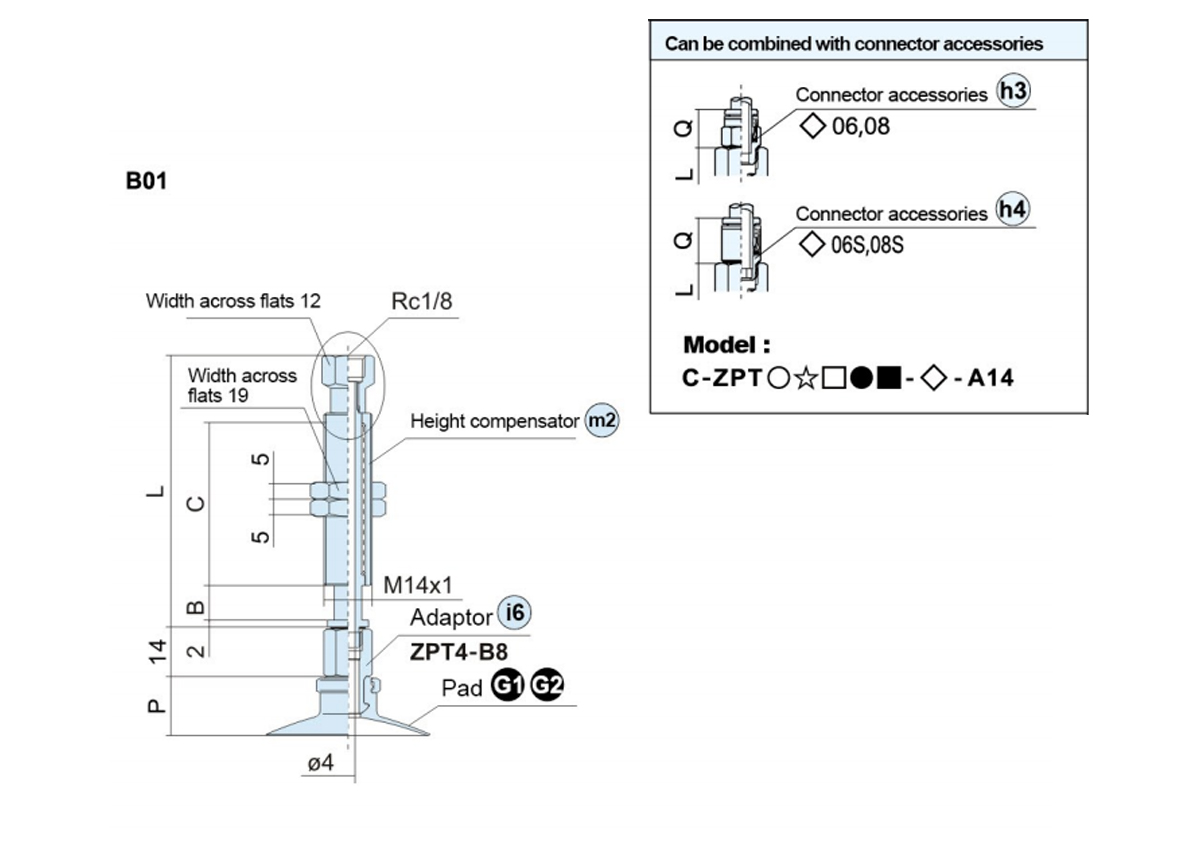

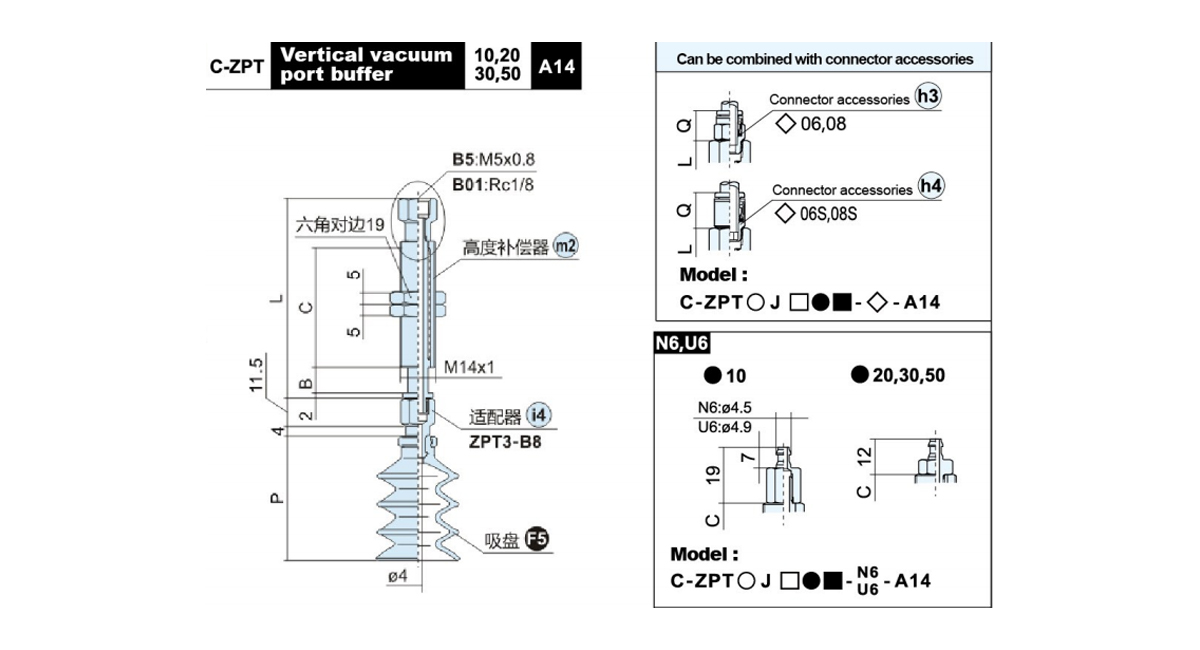

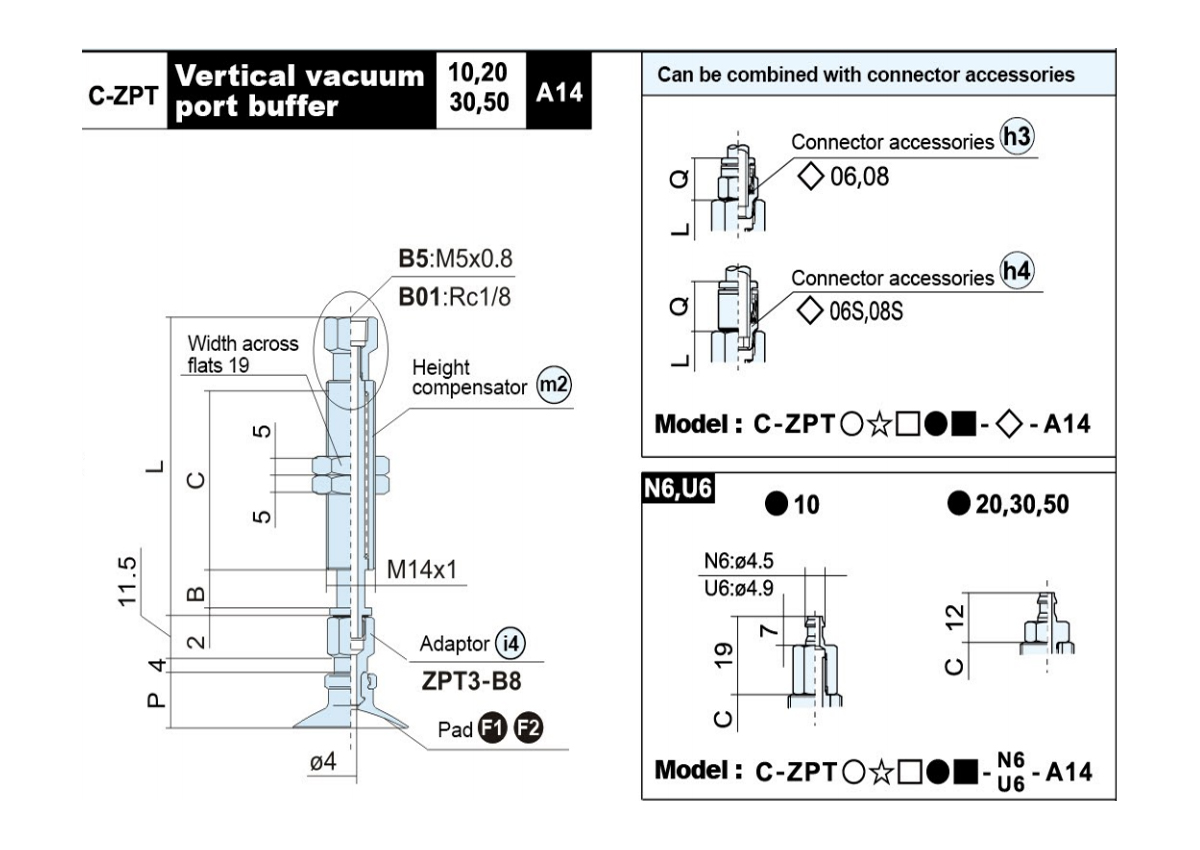

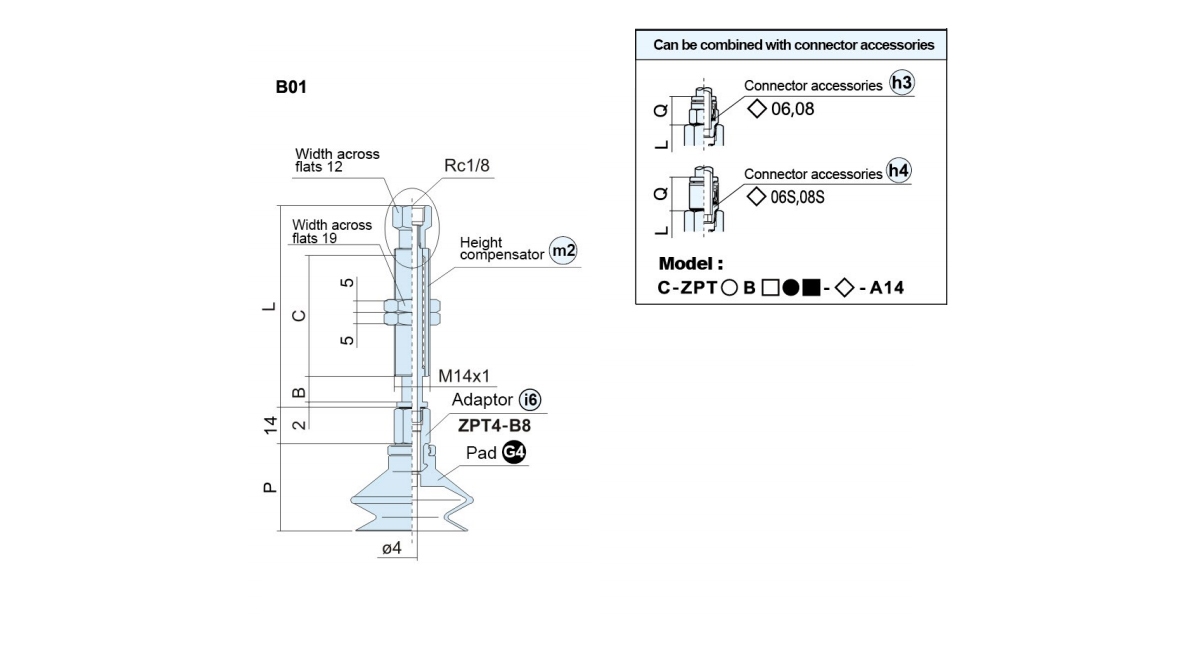

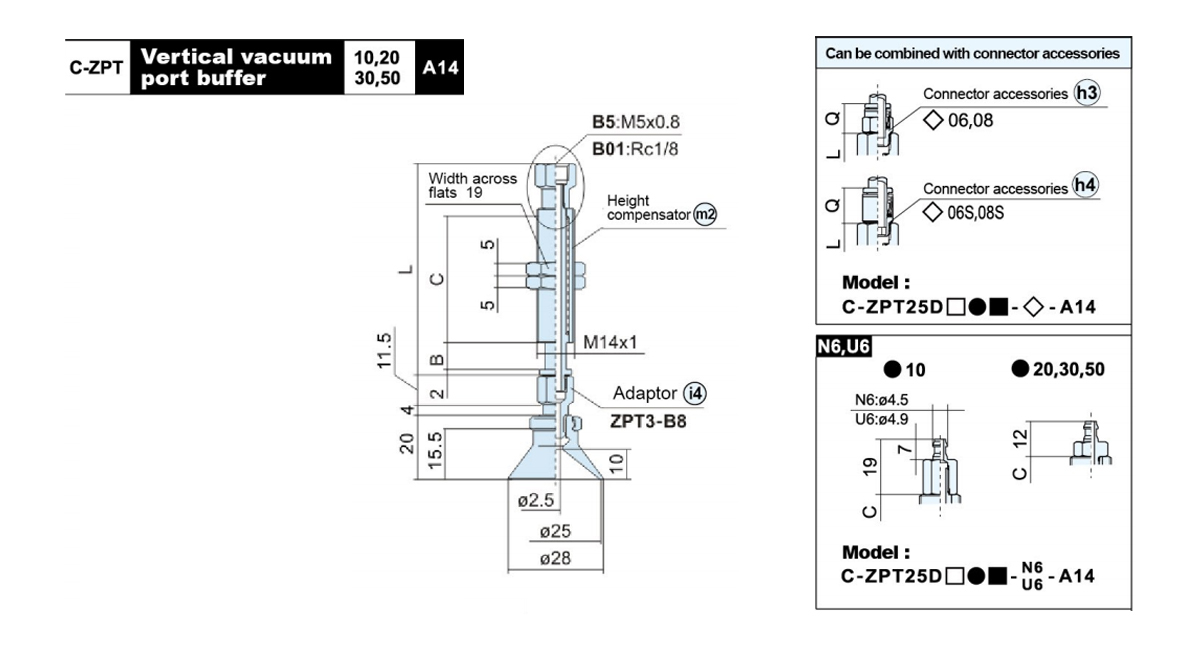

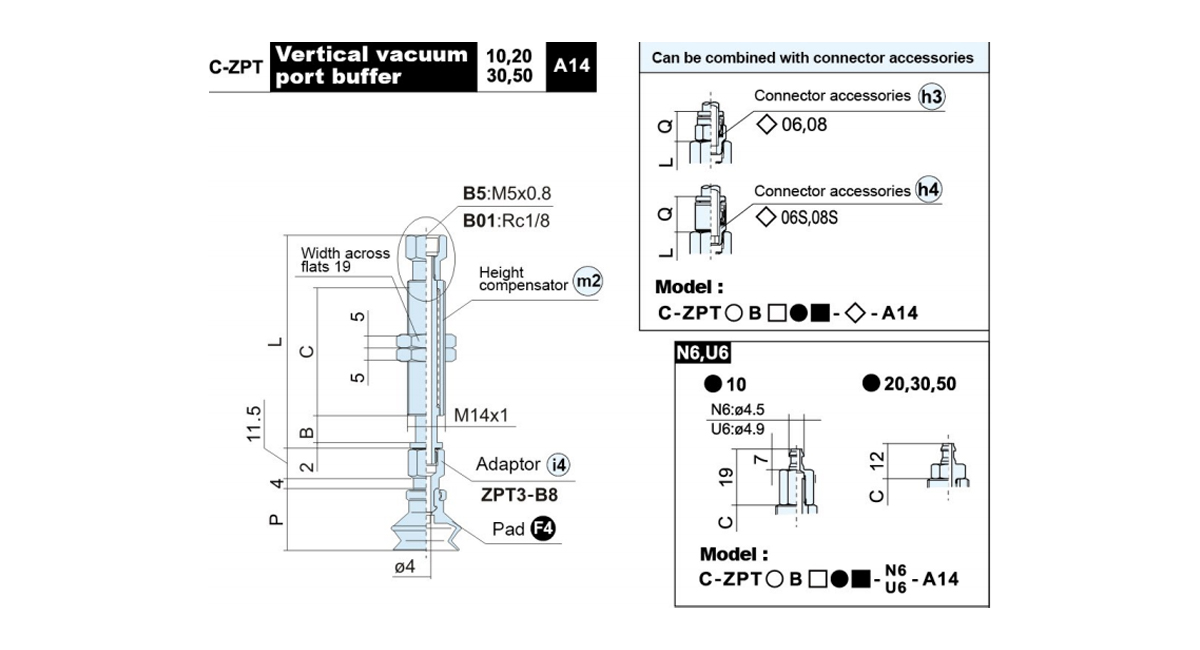

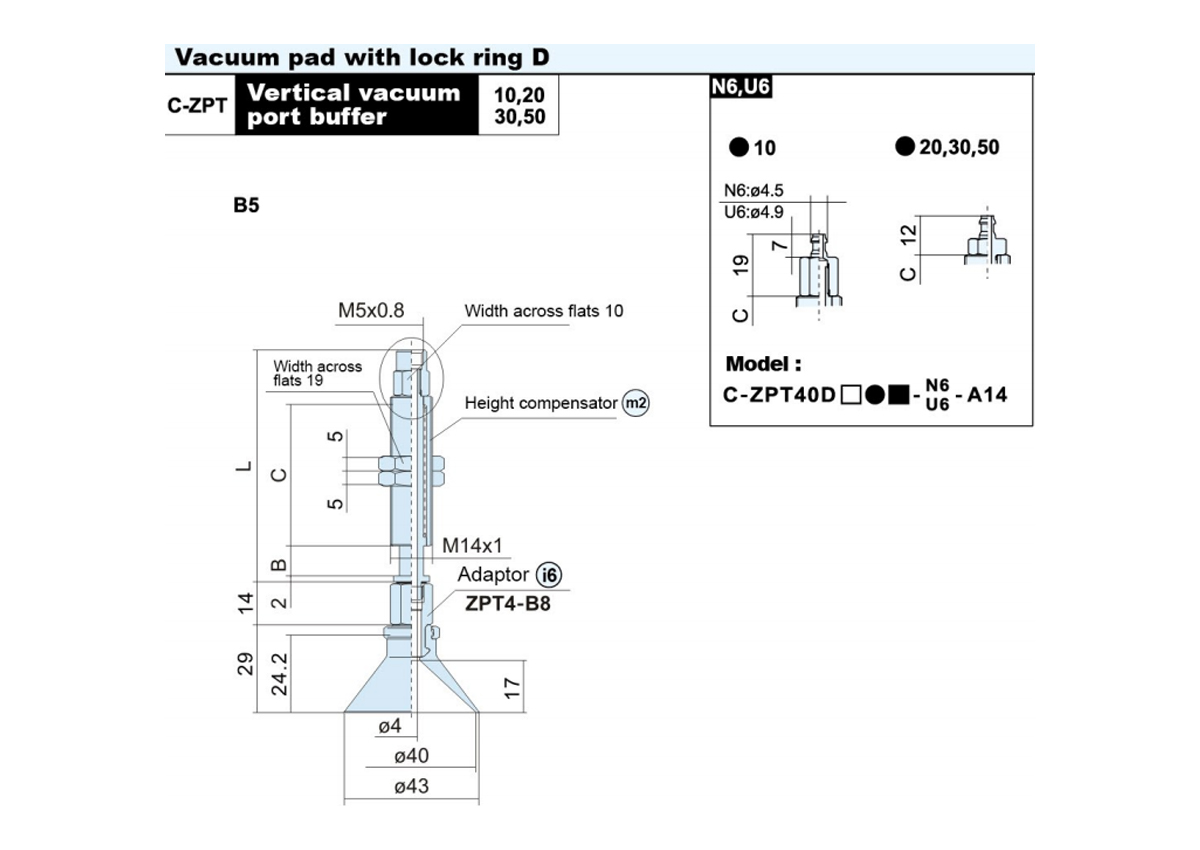

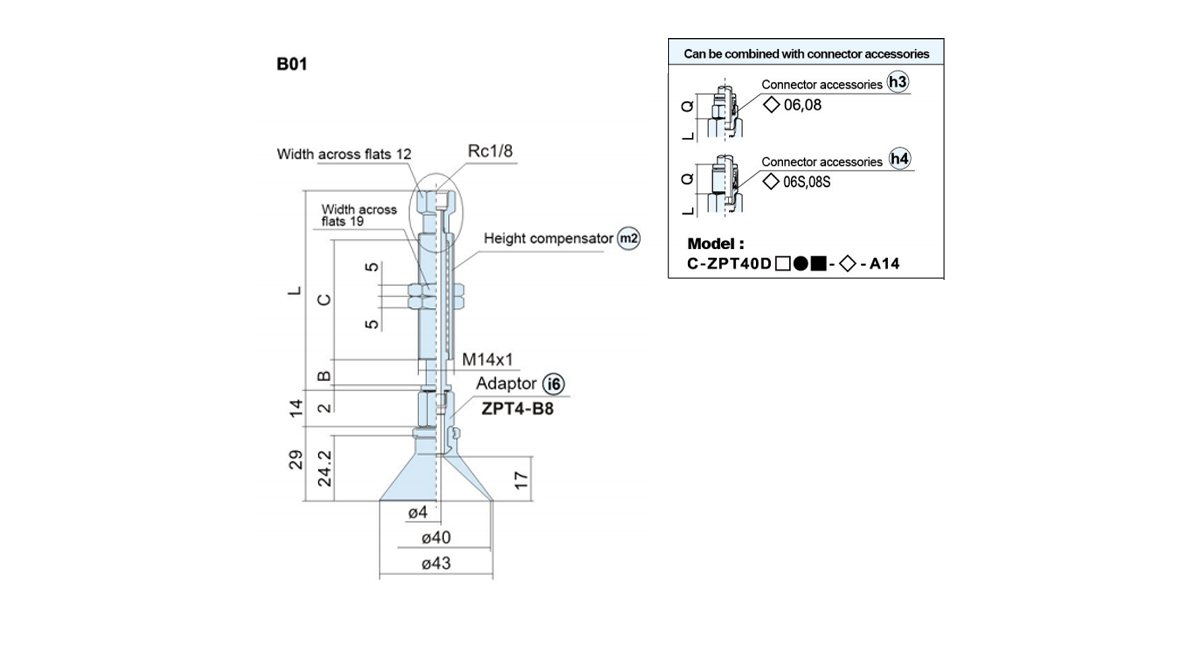

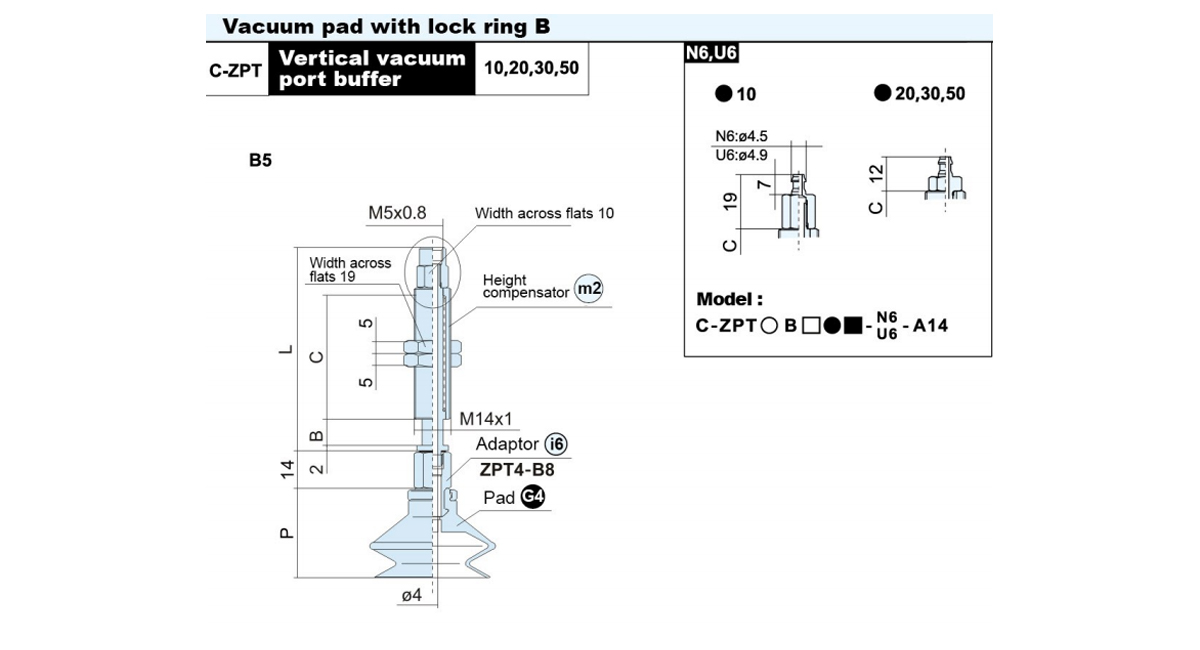

    Model B C L Pad
    U Diame
    Diameter     		P m2 i4
    Bumper Support Model
    20 25 32
    C-ZPT○☆□●10-B5-A14 10 50 77 14 14 14.5 ZPT3-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○☆□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○Symbol  of  pad  diameter:20,25,32
    □Material:NBR(N),Silicone(S)
    ☆ Pad  type:Flat(U),with   ribs(C)
    ●   Height  compensator  type:Rotative(J)
    ■    Buffer   stroke(mm):10,20,30,50                                                         Unable to rotate(K)

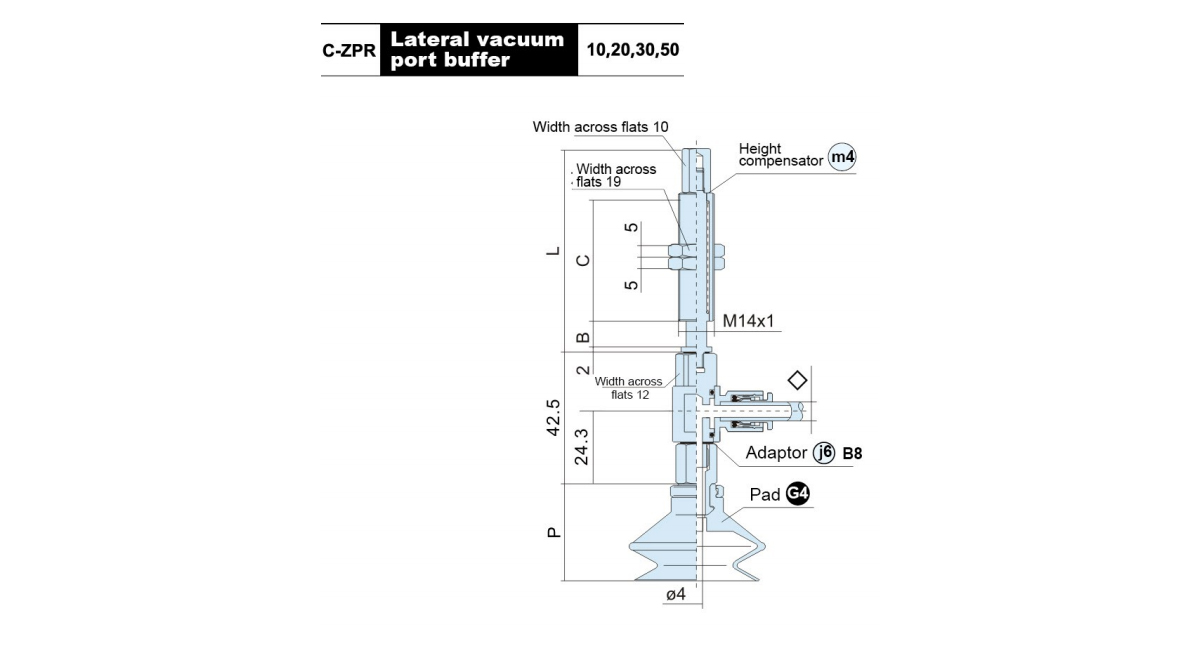

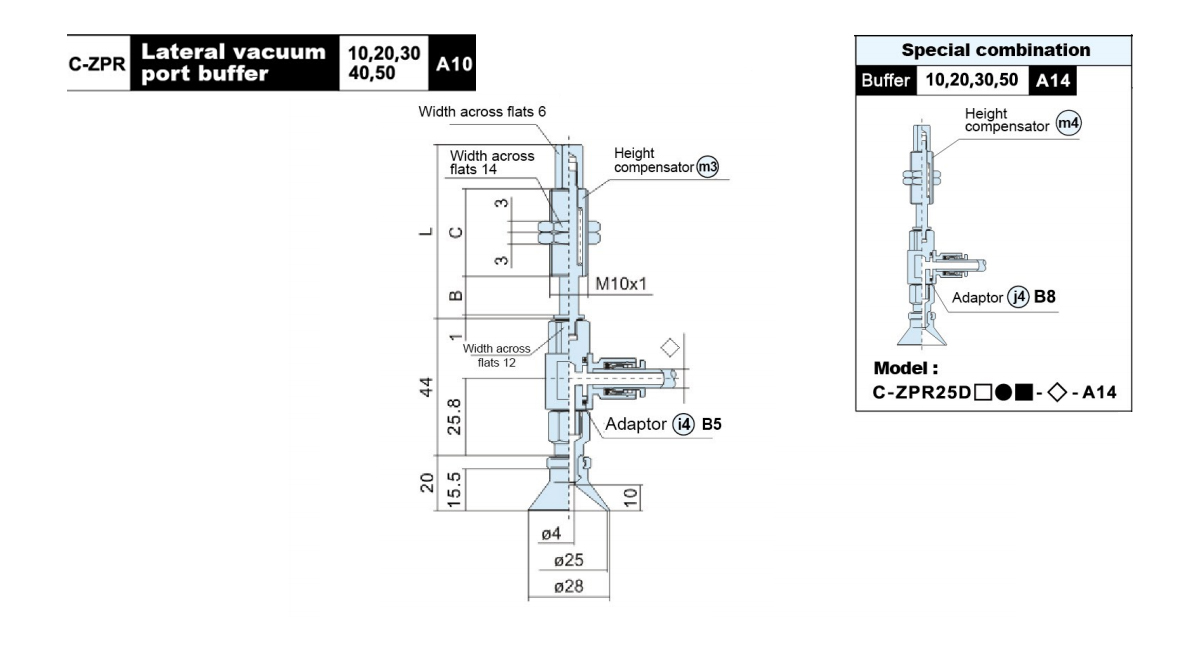

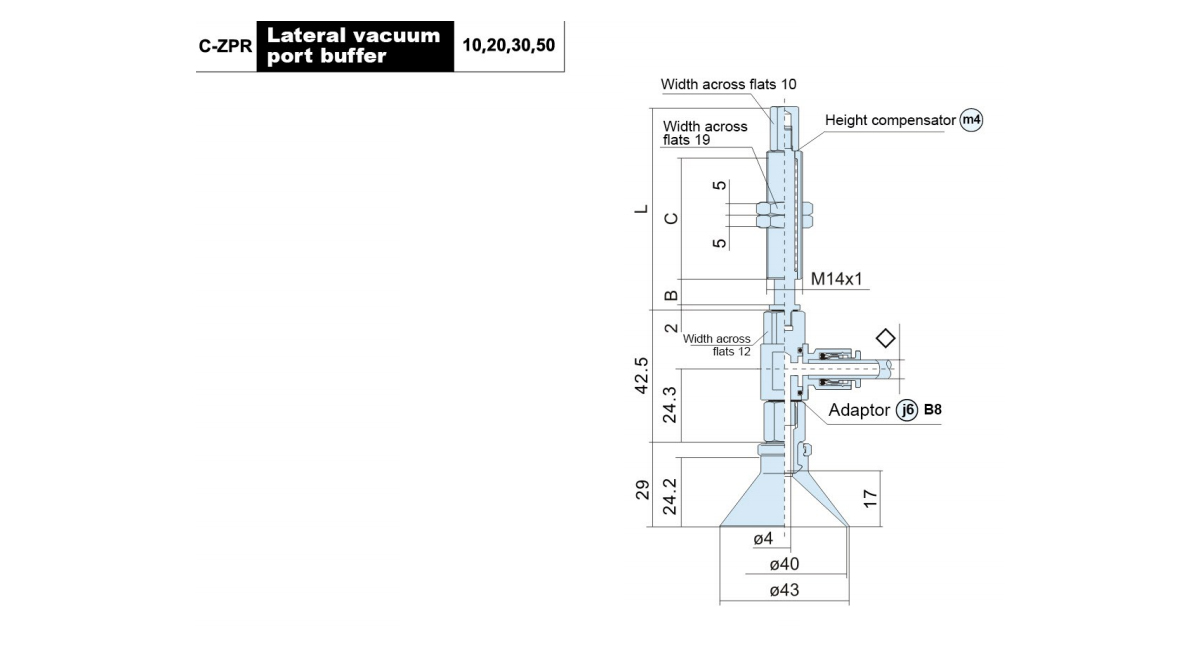

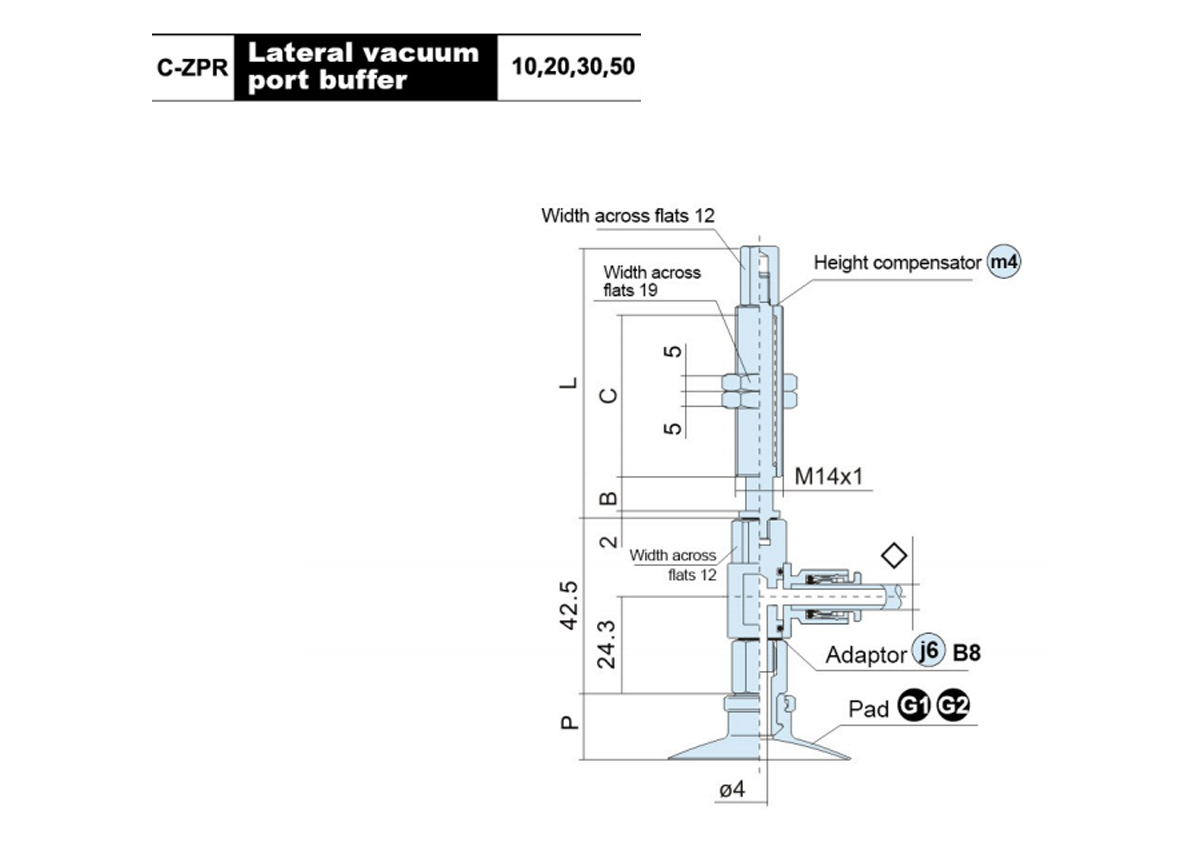

    Model B C L ○Pad Diameter P m3 ④
    Bumper Support Model
    20 25 32

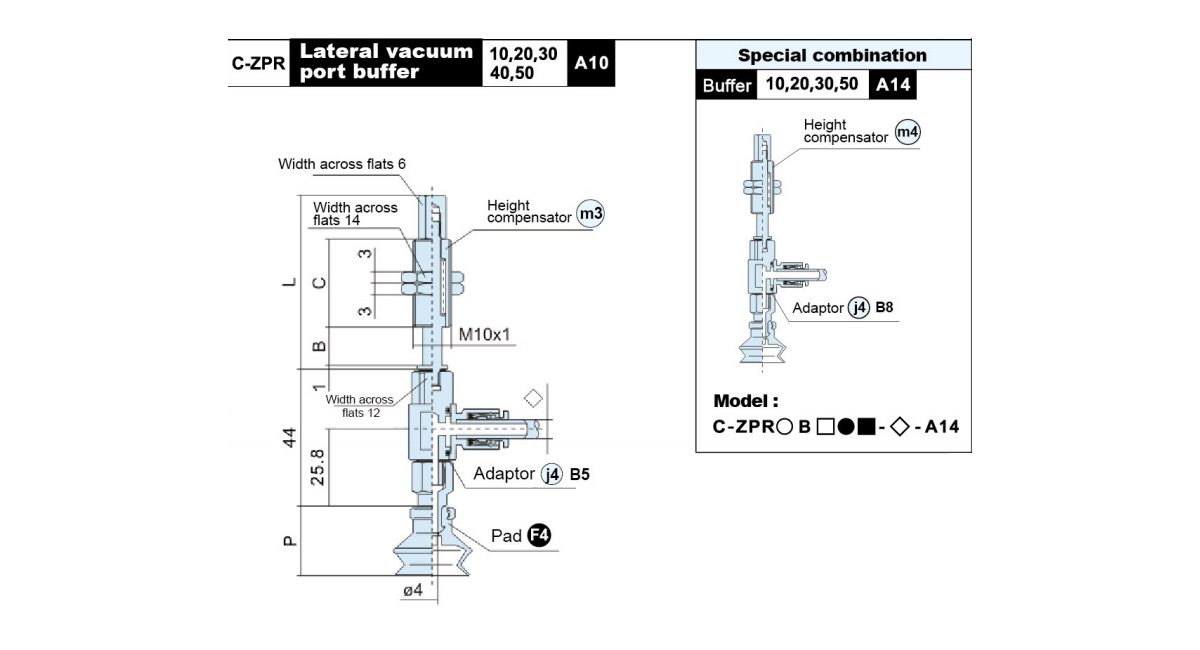

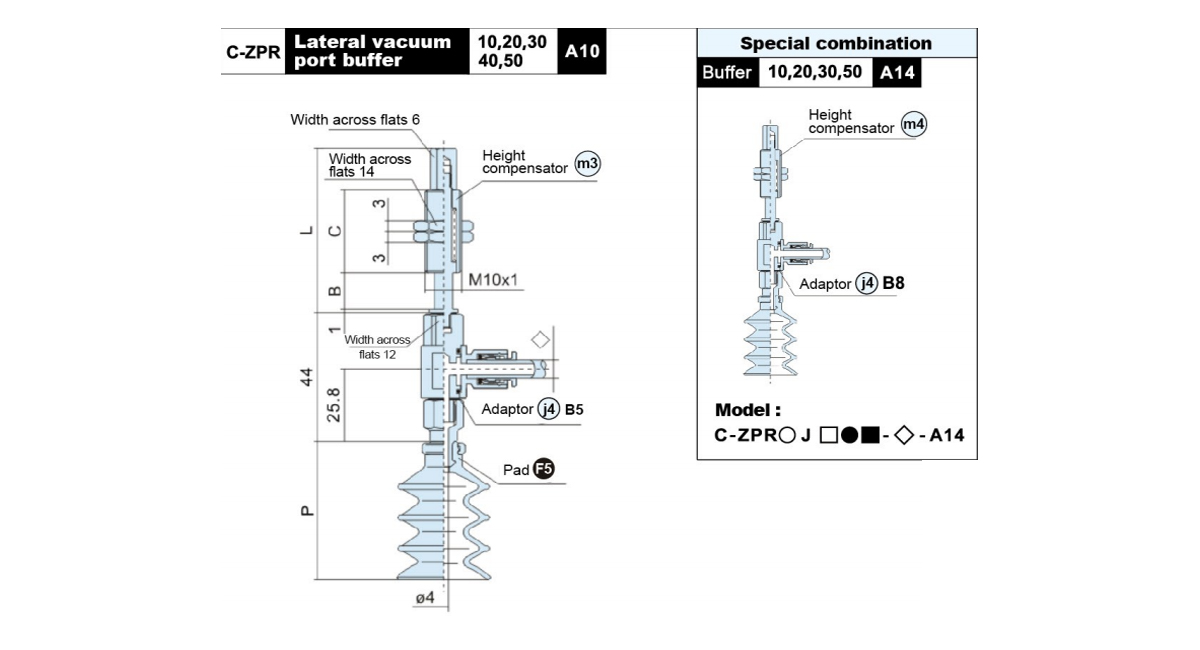

    C-ZPR○☆□●10-◇-A10 10 23 45 14 14 14.5 ZPR3-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○☆口●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ◇Vacuum port connection:04,06,08
    Unable to rotate(K)

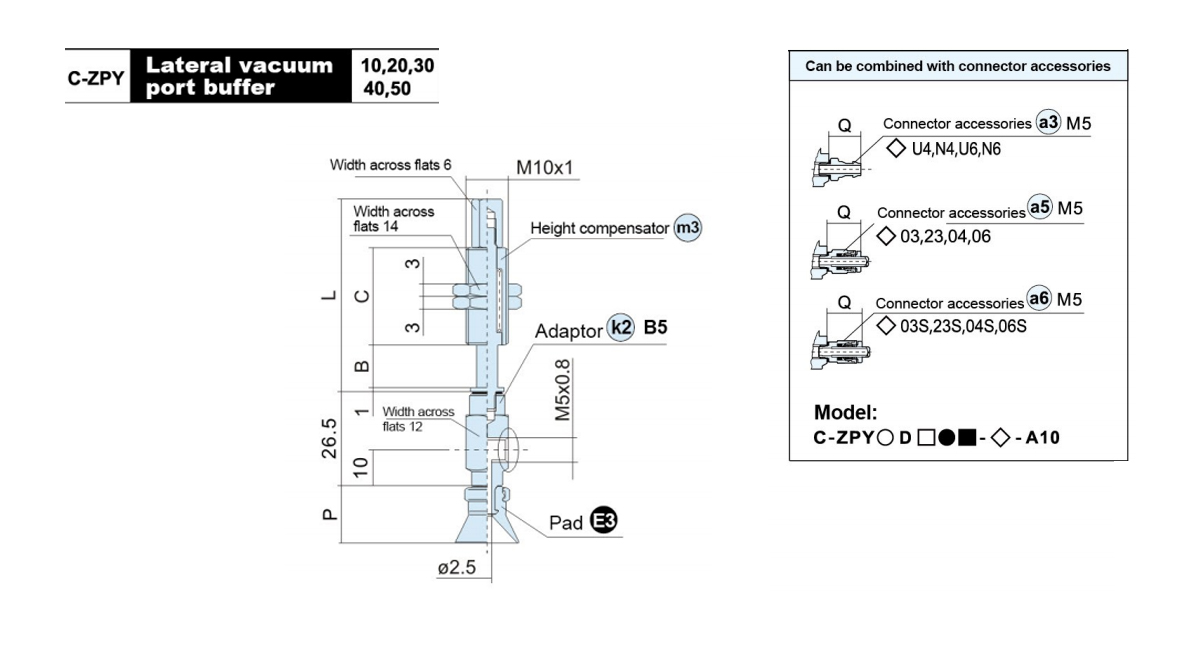

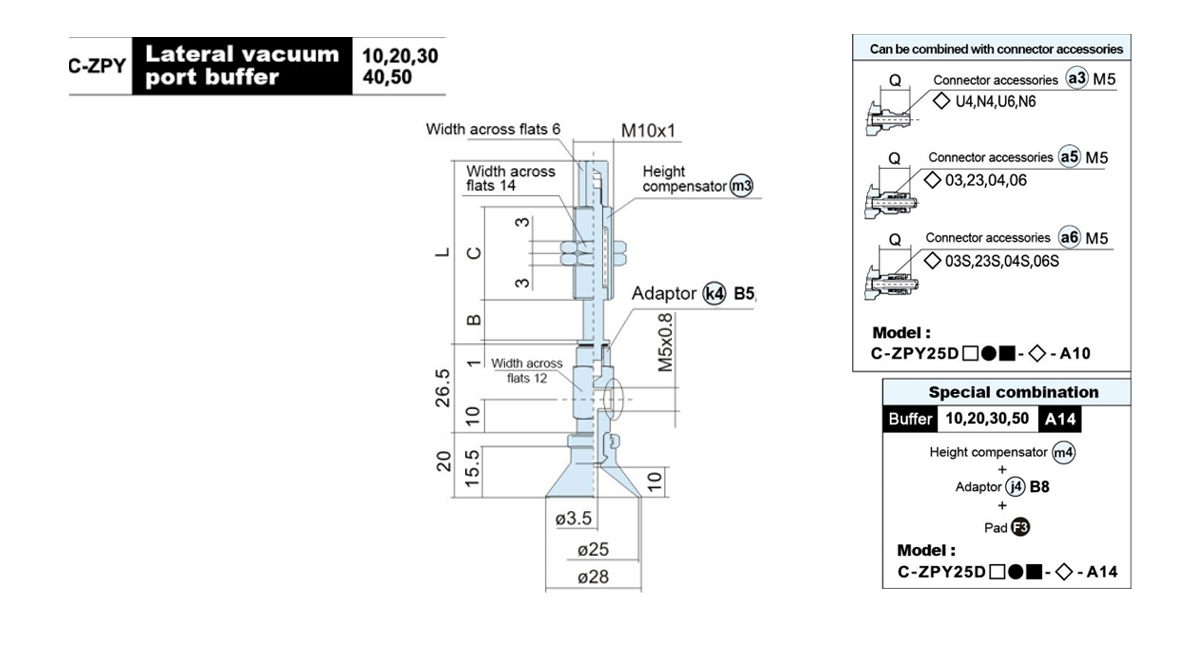

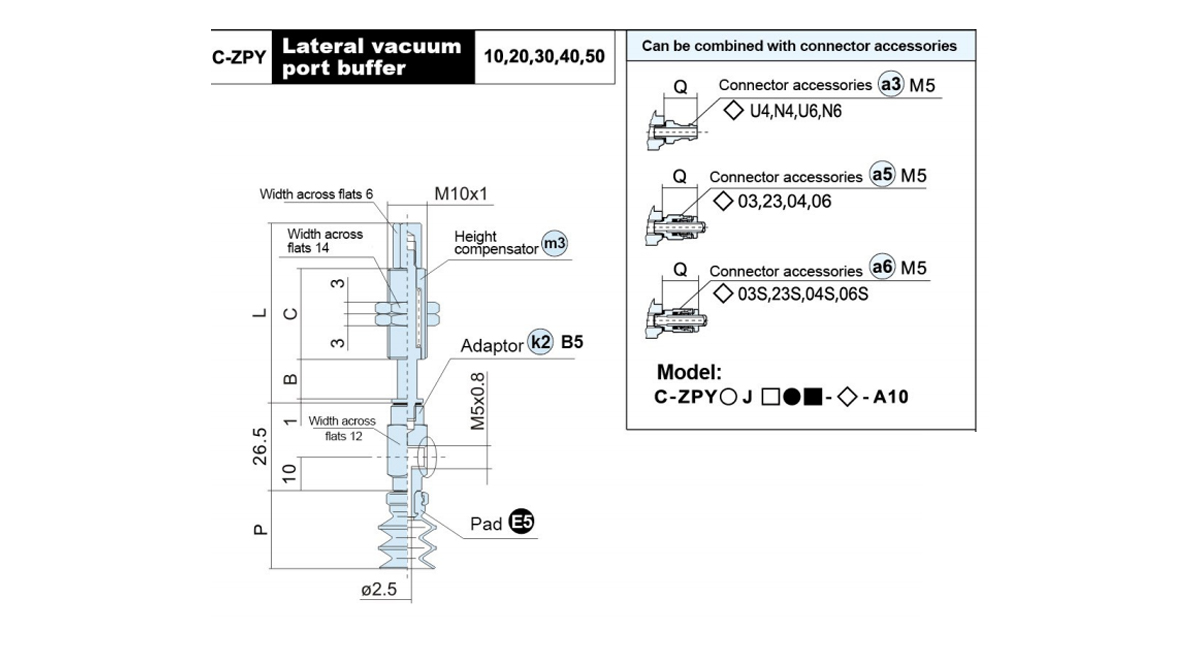

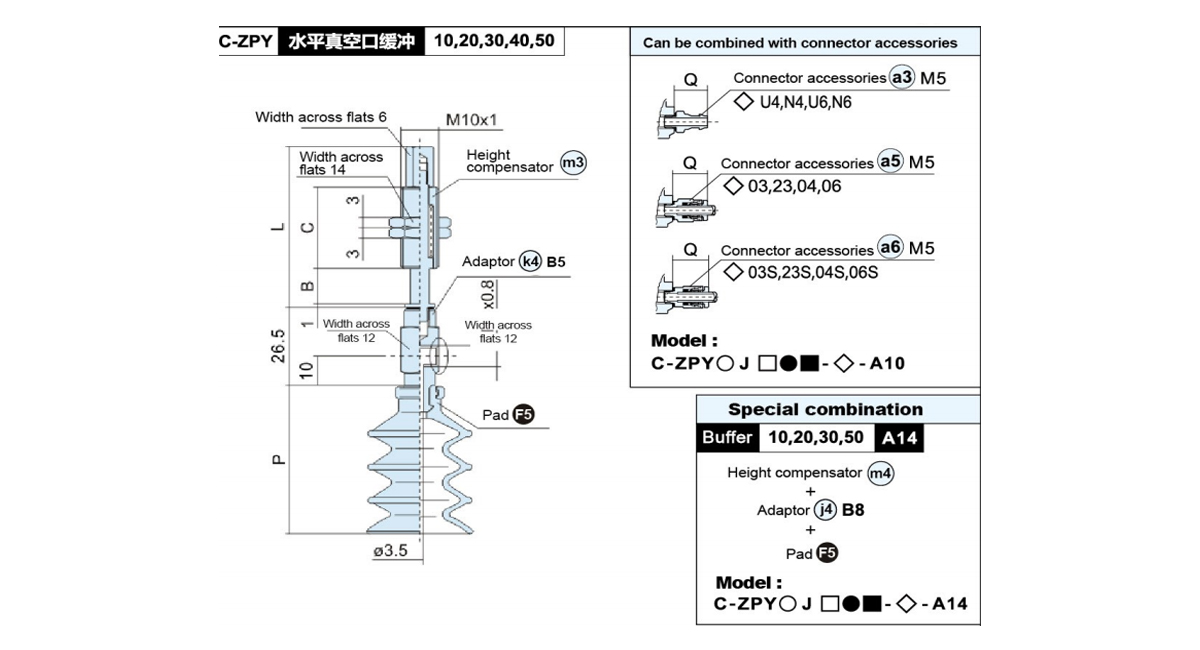

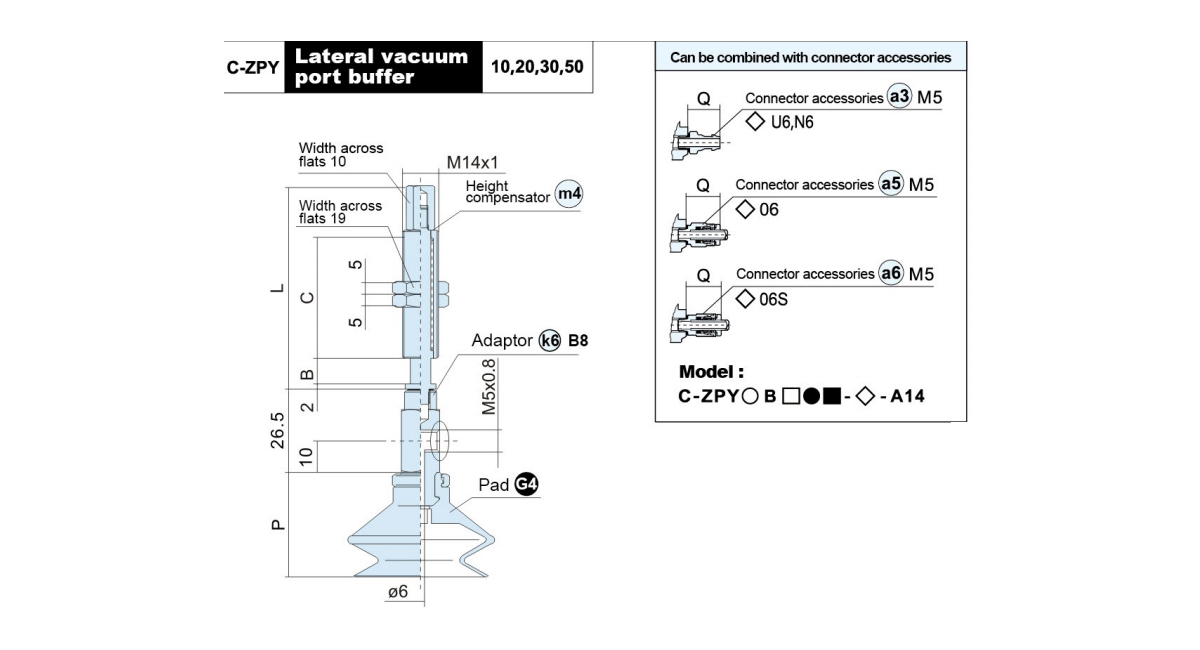

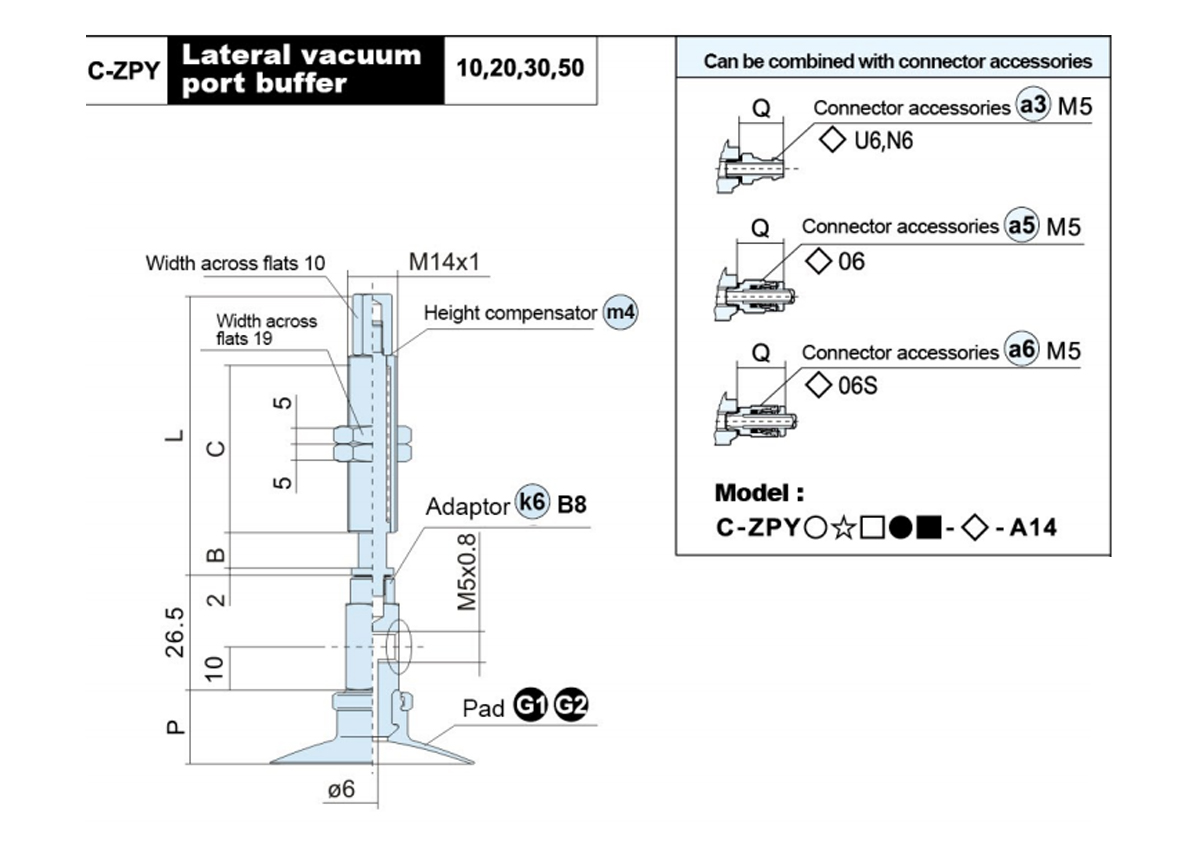

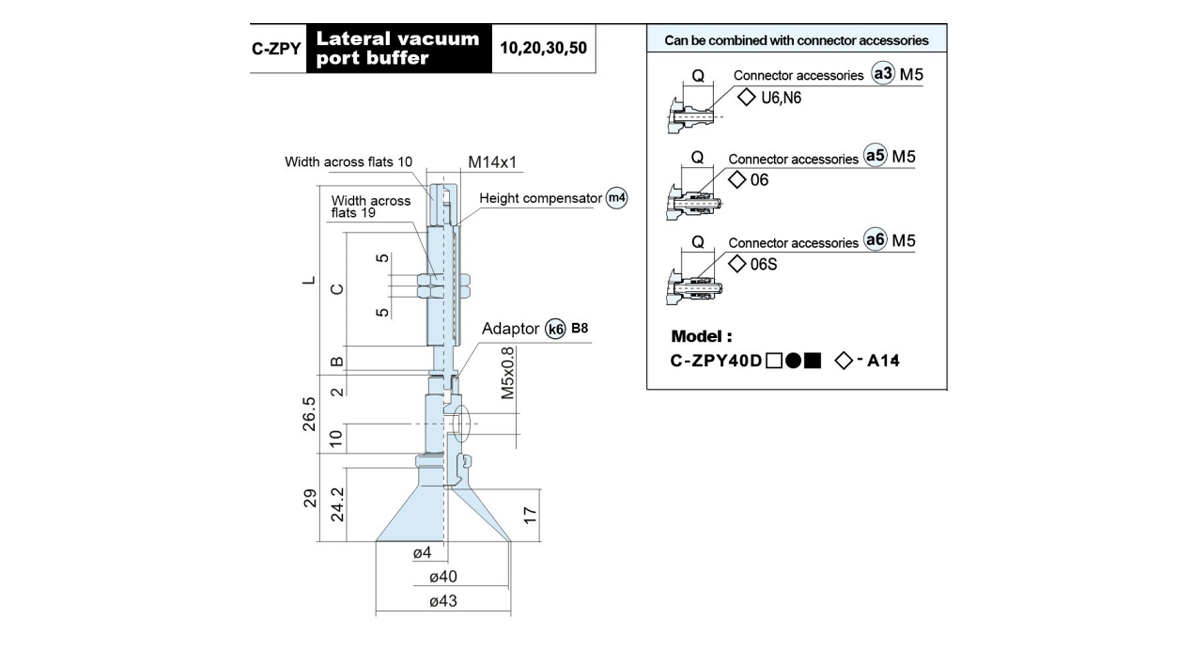

    Model B C L ○Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○☆□●10-B5-A10 10 23 45 14 14 14.5 ZPY3-●10-B5-A10
    C-ZPY○☆□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○☆口●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,50
    Unable to rotate(K)

    Model A ØB C L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPT○☆□-A6 M6×1.0 3.5 8 32 18.5 19.5 ZPT4-A6
    C-ZPT○☆□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○☆□-A01 - ZPT4-A01
    ○Symbol of pad diameter:40,50     ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor Model
    40 50
    C-ZPT○☆□-B6 M6×1.0 6 4.5 18.5 19.5 ZPT4-B6
    C-ZPT○☆□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT4-B01
    ○Symbol of pad diameter:40,50    ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆□-◇-A6 M6×1.0 8 68 18.5 19.5 ZPR4-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆口 - ◇ -B6 M6×1.0 6 18.5 19.5 ZPR4-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPY○☆□-B5-A6 M6×1.0 8 54 18.5 19.5 ZPY4-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○Symbol of pad diameter:40,50    ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    40 50
    C-ZPY○☆□-B5-B6 M6×1.0 6 18.5 19.5 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:40,50   ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B5-A14 10 50 77 18.5 19.5 ZPT4-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B01-A14 10 50 78.5 18.5 19.5 ZPT4-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPR4-●10-◇-A14
    C-ZPR○☆□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○☆□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○☆□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)
    ◇Vacuum port connection:06,08
    Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPY4-●10-◇-A14
    C-ZPY○☆口●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○☆□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○☆□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad diameter P Adaptor Model
    10 16
    C-ZPT○D□-A5 M5×0.8 7 4 26 15 16 ZPT2-A5
    C-ZPT○D□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○D□-A01 - - ZPT2-A01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter  P Adaptor Model
    10 16
    C-ZPT○D□-B5 M5×0.8 5 15 16 ZPT2-B5
    C-ZPT○D□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○D□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-A5 M5×0.8 4 7 55 15 16 ZPR2-◇-A5
    C-ZPR○D□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbo of pad diameter:10,16   □Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-B5 M5×0.8 5 15 16 ZPR2-◇-B5
    C-ZPR○D□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-A5 M5×0.8 7 4 47 15 16 ZPY2-B5-A5
    C-ZPY○D□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-B5 M5×0.8 5 15 16 ZPY2-B5-B5
    C-ZPY○D□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□J10-B5-A10 10 23 47 15 16 ZPT2-J10-B5-A10
    C-ZPT○D□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○D□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○D□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○D□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□K10-B5-A10 10 23 47 15 16 ZPT2-K10-B5-A10
    C-ZPT○D□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○D□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○D□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○D□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPR○D□●10-◇-A10 10 23 45 15 16 ZPR2-●10-◇-A10
    C-ZPR○D□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○D□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○D□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○D□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:10,16
    ◇Vacuum port connection:04,06
    □    Material:NBR(N),Silicone(S)
    ●  Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPY○D□●10-B5-A10 10 23 45 15 16 ZPY2-●10-B5-A10
    C-ZPY○D□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○D□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○D□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○D□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C D L Adaptor
    Model
    C-ZPT25D□-A6 M6×1.0 5 8 8 31 ZPT3-A6
    C-ZPT25D□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT25D□-A01 - - - - - ZPT3-A01
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPT25D□-B5 M5×0.8 5 ZPT3-B5
    C-ZPT25D□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT25D□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT25D□-B01 Rc1/8 6.2 ZPT3-B01
    □ Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR25D□-◇ -A6 M6×1.0 8 69.5 ZPR3-◇-A6
    C-ZPR25D□-◇ -A8 M8×1.0 12 59.5 ZPR3-◇-A8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

    Model A D Adaptor
    Model
    C-ZPR25D□-◇-B5 M5×0.8 5 ZPR3-◇-B5
    C-ZPR25D□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR25D□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

    Model A B L Adaptor
    Model
    C-ZPY25D□-B5-A6 M6×1.0 8 54 ZPY3-B5-A6
    C-ZPY25D□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY25D□-B5-B5 M5×0.8 5 ZPY3-B5-B5
    C-ZPY25D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY25D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □ Material:NBR(N),Silicone(S)

    Model B C L m1 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A10 10 23 47 ZPT3-●10-B5-A10
    C-ZPT25D□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT25D□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT25D□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT25D□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    □Material:NBR(N),Silicone(S)
    ■Buffer  stroke(mm):10,20,30,40,50
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L m2 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A14 10 50 77 ZPT3-●10-B5-A14
    C-ZPT25D□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT25D□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT25D□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT25D□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT25D□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT25D□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT25D□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    □Material:NBR(N),Silicone(S)
    ■Buffer   stroke(mm):10,20,30,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m3 j4
    Bumper Support Model
    C-ZPR25D□●10-◇-A10 10 23 45 ZPR3-●10-◇-A10
    C-ZPR25D□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR25D□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR25D□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR25D□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    □Material:NBR(N),Silicone(S)     ●Height compensator type:Rotative(J)
    ◇Vacuum portconnection:04,06,08                            Unable to rotate(K)

    Model B C L m3 k4 Bumper Support Model
    C-ZPY25D□●10-B5-A10 10 23 45 ZPY3-●10-B5-A10
    C-ZPY25D□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY25D□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY25D□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY25D□●50-B5-A10 50 139 ZPY3-●50-B5-A10

    □Material:NBR(N),Silicone(S)

    ●Height compensator type:Rotative(J)
    ■ Buffer  stroke(mm):10,20,30,40,50                                                   Unable to rotate(K)

    Model A ØB C L Adaptor
    Model
    C-ZPT40D□-A6 M6×1.0 3.5 8 32 ZPT4-A6
    C-ZPT40D□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT40D□-A01 - - - - ZPT4-A01
    □Material:NBR(N),Silicone(S)

    Model A B C Adaptor
    Model
    C-ZPT40D□-B6 M6×1.0 6 4.5 ZPT4-B6
    C-ZPT40D□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT40D□-B01 Rc1/8 6.2 ZPT4-B01
    □Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR40D□-◇-A6 M6×1.0 8 68 ZPR4-◇-A6
    C-ZPR40D□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

    Model A D Adaptor
    Model
    C-ZPR40D□-◇-B6 M6×1.0 6 ZPR4-◇-B6
    C-ZPR40D□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

    Model A B L Adaptor
    Model
    C-ZPY40D□-B5-A6 M6×1.0 8 54 ZPY4-B5-A6
    C-ZPY40D□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY40D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY40D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □Material:NBR(N),Silicone(S)

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B5-A14 10 50 77 ZPT4-●10-B5-A14
    C-ZPT40D□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT40D□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT40D□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B01-A14 10 50 78.5 ZPT4-●10-B01-A14
    C-ZPT40D□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT40D□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT40D□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m4 j6
    Bumper Support Model
    C-ZPR40D□●10-◇-A14 10 50 80 ZPR4-●10-◇-A14
    C-ZPR40D□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR40D□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR40D□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m4 k6
    Bumper Support Model
    C-ZPY40D□●10-◇-A14 10 50 80 ZPY4-●10-◇-A14
    C-ZPY40D□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY40D□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY40D□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-A5 M5×0.8 7 4 26 16 18.5 20 ZPT2-A5
    C-ZPT○B□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○B□-A01 - - - ZPT2-A01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-B5 M5×0.8 5 16 18.5 20 ZPT2-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○B□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-A5 M5×0.8 4 7 55 16 18.5 20 ZPR2-◇-A5
    C-ZPR○B□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-B5 M5×0.8 5 16 18.5 20 ZPR2-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-A5 M5×0.8 7 4 47 16 18.5 20 ZPY2-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-B5 M5×0.8 5 16 18.5 20 ZPY2-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□ J10-B5-A10 10 23 47 16 18.5 20 ZPT2-J10-B5-A10
    C-ZPT○ B□ J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○ B□ J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○ B□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○ B□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□K10-B5-A10 10 23 47 16 18.5 20 ZPT2-K10-B5-A10
    C-ZPT○ B□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○ B□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○ B□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○ B□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPR○ B□●10-◇-A10 10 23 45 16 18.5 20 ZPR2-●10-◇-A10
    C-ZPR○ B□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○ B□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○ B□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○ B□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○  Symbol of pad diameter:10,13,16
    ◇Vacuum port connection:04,06
    □ Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPY○B□●10-B5-A10 10 23 45 16 18.5 20 ZPY2-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:10,13,16    □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06               Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-A6 M6×1.0 5 8 8 31 23.5 24 29 ZPT3-A6
    C-ZPT○B□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○B□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-B5 M5×0.8 5 23.5 24 29 ZPT3-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○B□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT3-B01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-A6 M6×1.0 8 69.5 23.5 24 29 ZPR3-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○ Symbol of pad diameter:20,25,32   □  Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-B5 M5×0.8 5 23.5 24 29 ZPR3-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○  Symbol  of  pad  diameter:20,25,32       □ Material:NBR(N),Silicone(S)
    ◇ Vacuum  port  connection:04.06.08

    Model A B L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-A6 M6×1.0 8 54 23.5 24 29 ZPY3-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-B5 M5×0.8 5 23.5 24 29 ZPY3-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A10 10 23 47 23.5 24 29 ZPT3-●10-B5-A10
    C-ZPT○B□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○B□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○B□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○B□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:20,25,32
    ■  Buffer  stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter P m2 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A14 10 50 77 23.5 24 29 ZPT3-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○B□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:20,25,32
    ■ Buffer stroke(mm):10,20,30,40,50
    □        Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter m3 j4
    Bumper Support Model
    20 25 32
    C-ZPR○B□O10-◇-A10 10 23 45 23.5 24 29 ZPR3-●10-◇-A10
    C-ZPR○B□● 20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○B□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○B□● 40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○B□● 50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○ Symbol of pad diameter:20,25,32
    ◇ Vacuum
    port connection:04,06,08
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)  Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○B□●10-B5-A10 10 23 45 23.5 24 29 ZPY3-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol  of  pad  diameter:20,25,32
    □  Material:NBR(N),Silicone(S)
    ■  Buffer   stroke(mm):10,20,30,40,50    ●Height   compensator   type:Rotative(J) Unable to rotate(K)

    Model A ØB C L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○B□-A6 M6×1.0 3.5 8 32 34 38 ZPT4-A6
    C-ZPT○B□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○B□-A01 - - - ZPT4-A01
    ○ Symbol of pad diameter:40,50       □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○OB□-B6 M6×1.0 6 4.5 34 38 ZPT4-B6
    C-ZPT○B□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT4-B01
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇ -A6 M6×1.0 8 68 34 38 ZPR4-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇-B6 M6×1.0 6 34 38 ZPR4-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○ Symbol of pad dameter:40,50       □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-A6 M6×1.0 8 54 34 38 ZPY4-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter  P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-B6 M6×1.0 6 34 38 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B5-A14 10 50 77 34 38 ZPT4-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B01-A14 10 50 78.5 34 38 ZPT4-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○B□●10-◇-A14 10 50 80 34 38 ZPR4-●10-◇-A14
    C-ZPR○B□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○B□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○B□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ◇Vacuum port connection:06,08
    □ Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○B□●10-◇-A14 10 50 80 34 38 ZPY4-●10-◇-A14
    C-ZPY○B□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○B□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○B□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○  Symbo  of  pad  diameter:40,50
    □  Material:NBR(N),Silicone(S)
    ■  Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J) Unable to rotate(K)

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-A5 M5×0.8 7 4 26 18 24 24 ZPT2-A5
    C-ZPT○J□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○J□-A01 - - - - ZPT2-A01
    ○ Symbol of pad diameter:09,14,16       □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-B5 M5×0.8 5 18 24 24 ZPT2-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○J□-B01 - - ZPT2-B01
    ○ Symbol of pad diameter:09,14,16         □ Material:NBR(N),Silicone(S)

    Model A D E L O Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-A5 M5×0.8 4 7 55 18 24 24 ZPR2-◇-A5
    C-ZPR○J□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-B5 M5×0.8 5 18 24 24 ZPR2-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-A5 M5×0.8 7 4 47 18 24 24 ZPY2-B5-A5
    C-ZPY○J□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-B5 M5×0.8 5 18 24 24 ZPY2-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□J10-B5-A10 10 23 47 18 24 24 ZPT2-J10-B5-A10
    C-ZPT○J□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○J□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○J□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○J□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□K10-B5-A10 10 23 47 18 24 24 ZPT2-K10-B5-A10
    C-ZPT○J□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○J□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○J□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○J□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPR○J□●10-◇-A10 10 23 45 18 24 24 ZPR2-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:09,14,16
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J)   Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPY○J□●10-B5-A10 10 23 45 18 24 40 ZPY2-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:09,14,16
    ◇Vacuum   port   connection:04,06
    □  Material:NBR(N),Silicone(S)
    ■   Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-A6 M6×1.0 5 8 8 31 42.5 44.5 ZPT3-A6
    C-ZPT○J□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○J□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-B5 M5×0.8 5 42.5 44.5 ZPT3-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○J□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○J□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:25,30             □ Material:NBR(N),Silicone(S)

    Model A E L ○.Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-A6 M6×1.0 8 69.5 42.5 44.5 ZPR3-◇-A6
    C-ZPR○J□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:25,30        □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A D ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-B5 M5×0.8 5 42.5 44.5 ZPR3-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○J□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○ Symbol of pad diameter:25,30            □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

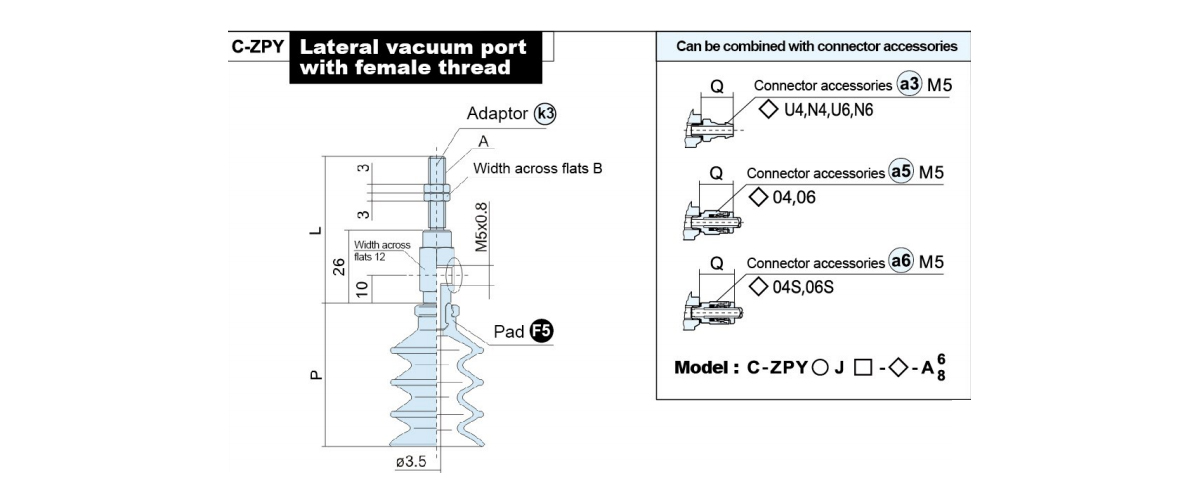

    Model A B L ○ Pad  Diameter       P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-A6 M6×1.0 8 54 42.5 44.5 ZPY3-B5-A6
    C-ZPY○J□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-B5 M5×0.8 5 42.5 44.5 ZPY3-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○J□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A10 10 23 47 42.5 44.5 ZPT3-●10-B5-A10
    C-ZPT○J□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○J□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○J□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○J□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:25,30
    □ Buffer stroke(mm):10,20,30,40,50
    ■ Material:NBR(N),Silicone(S)
    ● Height    compensator    type:Rotative(J)  Unable   to   rotate(K)

    Model B C L ○ Pad Diameter P m2 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A14 10 50 77 42.5 44.5 ZPT3-●10-B5-A14
    C-ZPT○J□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○J□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○J□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○J□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○J□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○J□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○J□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:25,30
    ■ Buffer stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Slicone(S)
    ●  Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter     P m3 j4
    Bumper Support Model
    25 30
    C-ZPR○J□●10-◇-A10 10 23 45 42.5 44.5 ZPR3-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○  Symbol  of  pad  diameter:25,30         □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06,08    ●   Height   compensator  type:Rotative(J) Unable  to  rotate(K)

    Model B C L ○ Pad Diameter     P m3 k4
    Bumper Support Model
    25 30
    C-ZPY○J□●10-B5-A10 10 23 45 42.5 44.5 ZPY3-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol of pad diameter:25,30
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J) Unable to rotate(K)

İlgili Ürünler

Blog ve Haberler

En Son Haberlerimiz ve
Blog

Daha Fazla

Otantik Güvenilir Kalite Doğal Olarak Öne Çıkar.

Seçim güvenden gelir, işbirliği dürüstlükten gelir.

  • S: Size bir soruşturma gönderdikten sonra ne kadar sürede yanıt alabiliriz?

    Soruşturmayı iş günlerinde aldıktan sonra 24 saat içinde size cevap vereceğiz.

  • S: Doğrudan üretici misiniz yoksa ticaret şirketi misiniz?

    Biz bir üreticiyiz ve kendi uluslararası satış departmanımız var. Yani kendimiz üretip satabiliyoruz.

  • S: Özelleştirilmiş ürünler yapabilir misiniz?

    Evet, müşterilerin sağladığı çizimlere veya örneklere göre ürünler geliştirebilir ve üretebiliriz.

  • S: Şirketiniz ürün kalitesini nasıl garanti ediyor?

    Öncelikle her işlemden sonra denetimi yapacağız. Bitmiş ürünler için, müşterilerin gereksinimlerine ve uluslararası standartlara göre %100 denetim yapacağız.

  • S: Ürünleriniz ağırlıklı olarak nereye ihraç ediliyor?

    Ürünlerimiz ağırlıklı olarak Almanya, Amerika Birleşik Devletleri, Danimarka ve Avrupa ve Kuzey Amerika'daki bir düzineden fazla ülkeye ihraç edilmektedir
